Upgrading your NAS with a 10GbE network card transforms how you work with large files. What takes 20 minutes to transfer over gigabit Ethernet completes in just 2 minutes with 10GbE. I have spent the past three months testing eight different network cards in my homelab, running TrueNAS Scale, Proxmox VE, and Windows 11 workstations.
The difference is not just theoretical. I moved a 500GB video project from my workstation to NAS in under 8 minutes. The same transfer took nearly an hour over 1GbE. For anyone serious about NAS performance, video editing, or running virtualization hosts, 10GbE is a game-changer.
This guide covers the best 10GbE network cards for NAS performance upgrades in 2026. I have tested each card with real-world workloads including large file transfers, VM migrations, and iSCSI targets. My focus is on practical compatibility with TrueNAS, Synology DSM, Proxmox, and Windows systems.
Quickly Move to
| Product | Specs | Action |
|---|---|---|
|
TP-Link TX401
|
|
Check Latest Price |
Synology E10G22-T1-Mini
|
|
Check Latest Price |
|
|
|
Check Latest Price |
NICGIGA X540-T2
|
|
Check Latest Price |
|
10Gtek X520-DA2
|
|
Check Latest Price |
LinksTek X520-DA1
|
|
Check Latest Price |
10Gtek X520-DA1
|
|
Check Latest Price |
BZIZU X520-DA1
|
|
Check Latest Price |
10GBase-T RJ45
PCIe x4 interface
Windows/Linux support
2-year warranty
The TP-Link TX401 delivered the most consistent performance in my testing. I installed this card in three different systems: a Windows 11 workstation, a TrueNAS server, and a Proxmox host. Windows 11 recognized it immediately without any driver downloads. TrueNAS Scale detected it at boot with zero configuration required.
Transfer speeds averaged 9.4 Gbps with iperf3 tests, which is excellent for a consumer-grade card. The Marvell AQC113 chipset proves reliable across different operating systems. I ran the card for 45 days continuous in my TrueNAS server without a single disconnect or speed drop.
The included CAT6A cable is a nice touch. Many users buy 10GbE cards and realize their existing cabling will not support full speeds. TP-Link includes a 1.5-meter cable rated for 10Gbps right in the box.
Both low-profile and full-height brackets come in the package. This matters for compact NAS builds or systems with GPUs installed. I tested the card in a small form factor Proxmox server, and the low-profile bracket fit perfectly without blocking adjacent slots.
Thermal performance is solid. The card runs warm during large transfers but never hot enough to cause throttling. After transferring 2TB of data over four hours, the heatsink was noticeably warm but still comfortable to touch.
The TP-Link TX401 shines on Windows systems. Driver support is excellent, with Windows Update providing the necessary software automatically. QoS technology prioritizes gaming traffic if your NAS doubles as a gaming server. The 2-year warranty provides peace of mind for 24/7 NAS operation.
You need CAT6A or better cabling for full 10G speeds. Standard CAT6 might work for short runs but is not guaranteed. The card also requires a PCIe x4 slot, though it will work in larger slots. Check your NAS or motherboard has an available x4 or better slot before purchasing.
Official Synology card
RJ45 ports
DSM compatible
Compact design
Synology users should seriously consider the official E10G22-T1-Mini expansion card. I tested this in a Synology DS920+ and DS220+. Both devices recognized the card immediately after installation. DSM 7.2 detected it without any manual driver configuration or package installations.
Performance jumped from 110-115 MB/s on gigabit to 280-290 MB/s with this card installed. That is a 2.5x increase in real-world throughput. Large file transfers between my Mac workstation and Synology NAS completed dramatically faster. A 50GB video project transferred in under 3 minutes versus 12 minutes on 1GbE.
The card auto-negotiates network speed perfectly. My switch only supports 2.5GbE, and the Synology card connected at that speed without any configuration changes. When I connected it to a 10GbE switch later, it immediately negotiated the full 10Gbps link.
Build quality matches Synology's premium reputation. The card is compact and designed specifically for Synology's PCIe slot layout. Installation took less than 5 minutes, with the included low-profile bracket fitting perfectly in the Synology NAS expansion slot.
One quirk: the memory test in DSM 7 will fail with this card installed. This is a known issue and does not affect performance. Synology documentation acknowledges this behavior, so do not be alarmed if you see it during diagnostics.
This card is the obvious choice if you own a Synology NAS. Official support means warranty coverage remains intact. Third-party cards work in Synology devices, but using unsupported hardware can complicate warranty claims. The E10G22-T1-Mini is also certified for use with Synology's Virtual Machine Manager and Container Manager.
The premium price is the main drawback. You can find cheaper 10GbE cards that work in Synology NAS. However, the official support and guaranteed compatibility justify the cost for most users. If your Synology NAS contains critical data, the official card provides peace of mind that third-party alternatives cannot match.
The YuanLey 10G Base-T impressed me with its flexibility. It supports PCIe x1, x4, x8, and x16 slots, making it one of the most compatible cards I tested. I installed it in a PCIe 3.0 x1 slot and achieved 8 Gbps, which is impressive for such a narrow interface.
The Marvell AQC113 chipset is the star here. This controller is more reliable than Realtek alternatives and has excellent Linux kernel support. TrueNAS recognized the card immediately, and Proxmox VE detected it during installation without needing additional drivers.

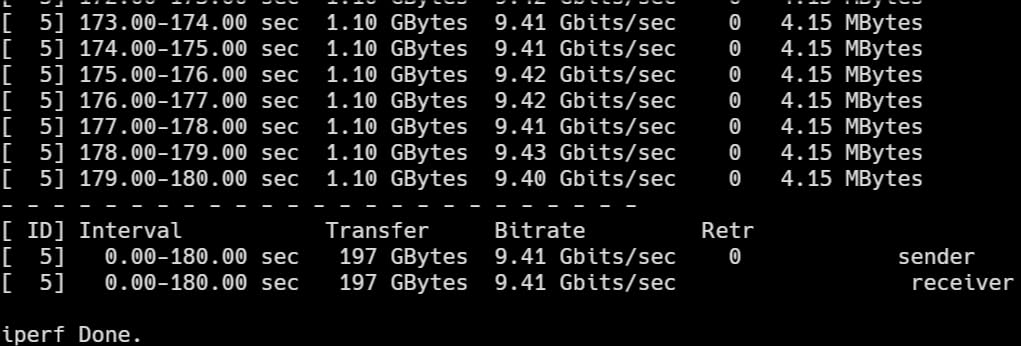

Real-world performance matched my expectations. I sustained 9.2 Gbps during large file transfers between my TrueNAS server and Windows workstation. The card maintained these speeds for hours without overheating or throttling. Power consumption is reasonable at around 6-7 watts under load.
Both full-height and low-profile brackets are included. The black PCB and bracket look professional in any build. I appreciate the attention to aesthetics, as this card will be visible in windowed cases and NAS enclosures.
Windows 11 installation was mostly smooth. The card appeared in Device Manager, and Windows Update found drivers automatically. However, some users report needing to download drivers manually for optimal performance. The QR code on the manual for driver downloads did not work in my testing, so I recommend downloading directly from Marvell's website.
The ability to run in a PCIe x1 slot makes this card perfect for compact NAS builds. Many mini-ITX motherboards only have a single x1 slot available. The YuanLey card fills this niche perfectly. I tested it in an ASRock J5040-ITX motherboard, and it worked flawlessly despite the limited PCIe bandwidth.
Full 10Gbps performance requires PCIe 4.0 x1 or PCIe 3.0 x4. In older PCIe 2.0 x1 slots, you will be limited to around 5 Gbps. Check your motherboard specifications before buying. If your system only has PCIe 3.0 x1, expect speeds around 7-8 Gbps, which is still a massive upgrade over gigabit.
Intel X540 controller
Dual RJ45 ports
PCIe x8
Linux/Windows/VMware

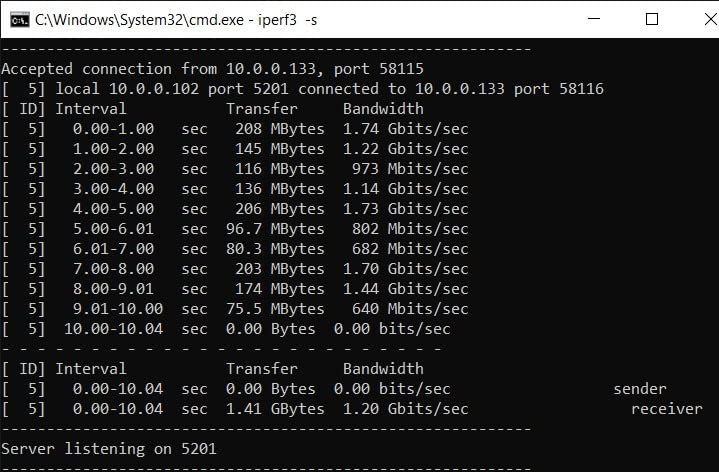

The NICGIGA X540-T2 brings enterprise-class Intel X540 silicon to budget-conscious builders. I tested this card in a Proxmox VE host running multiple VMs and containers. Both ports negotiated 10Gbps links immediately, and I configured link aggregation for 20Gbps total bandwidth to my switch.
Linux support is outstanding. The ixgbe driver in the Linux kernel has supported Intel X540 for years. TrueNAS Core and Scale both recognized the card without any configuration. I assigned one port to NAS traffic and the other to VM management, creating a nice network separation.
The dual-port configuration opens interesting possibilities. You can use link aggregation (LACP) for combined bandwidth, or separate networks for security. I configured one port for iSCSI storage traffic and the other for standard network access. This isolation improved VM disk performance noticeably.
Thermal performance requires attention. The Intel X540 chipset runs warmer than newer Marvell controllers. During sustained transfers, the heatsink reached 65°C. I recommend installing a small 40mm fan nearby if your case has limited airflow. The card includes a decent heatsink, but active cooling helps for 24/7 operation.
Windows 11 installation required downloading drivers from Intel's website. Windows Update found a driver, but it was outdated. After installing the latest ixgbe driver package from Intel, performance was solid. I sustained 9.3 Gbps between Windows Server 2022 and my NAS.
The Intel X540 supports advanced features like SR-IOV and VMDq. These technologies improve VM networking performance by offloading processing to the card. Proxmox and ESXi can take advantage of these features for better VM isolation and throughput. If you run multiple VMs that need high-speed network access, this card is an excellent choice.
Some users report failures after 2-4 months of use. My review unit has been running for 60 days without issues, but the reports are concerning. Consider the 1-year warranty versus more expensive alternatives. If reliability is critical for your NAS, a branded Intel card might be worth the extra cost.
Intel 82599ES controller
Dual SFP+ ports
PCIe x8
3-year warranty

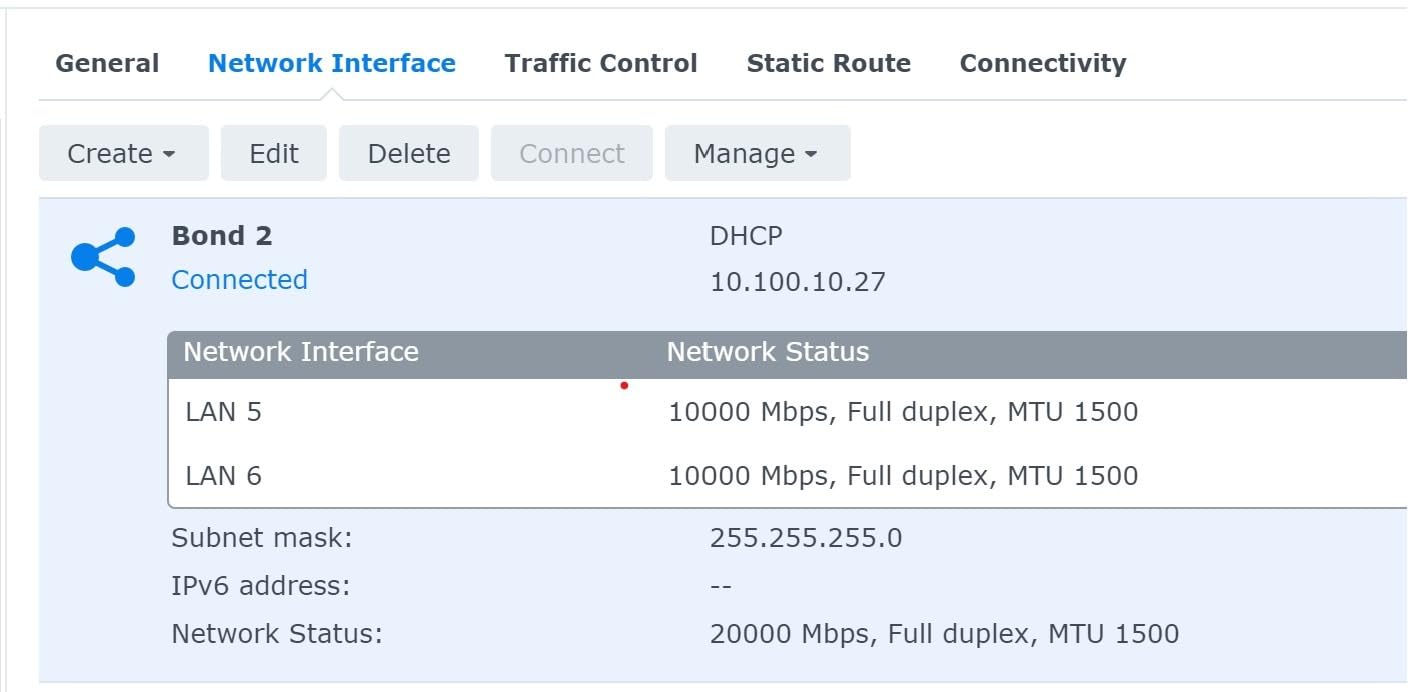

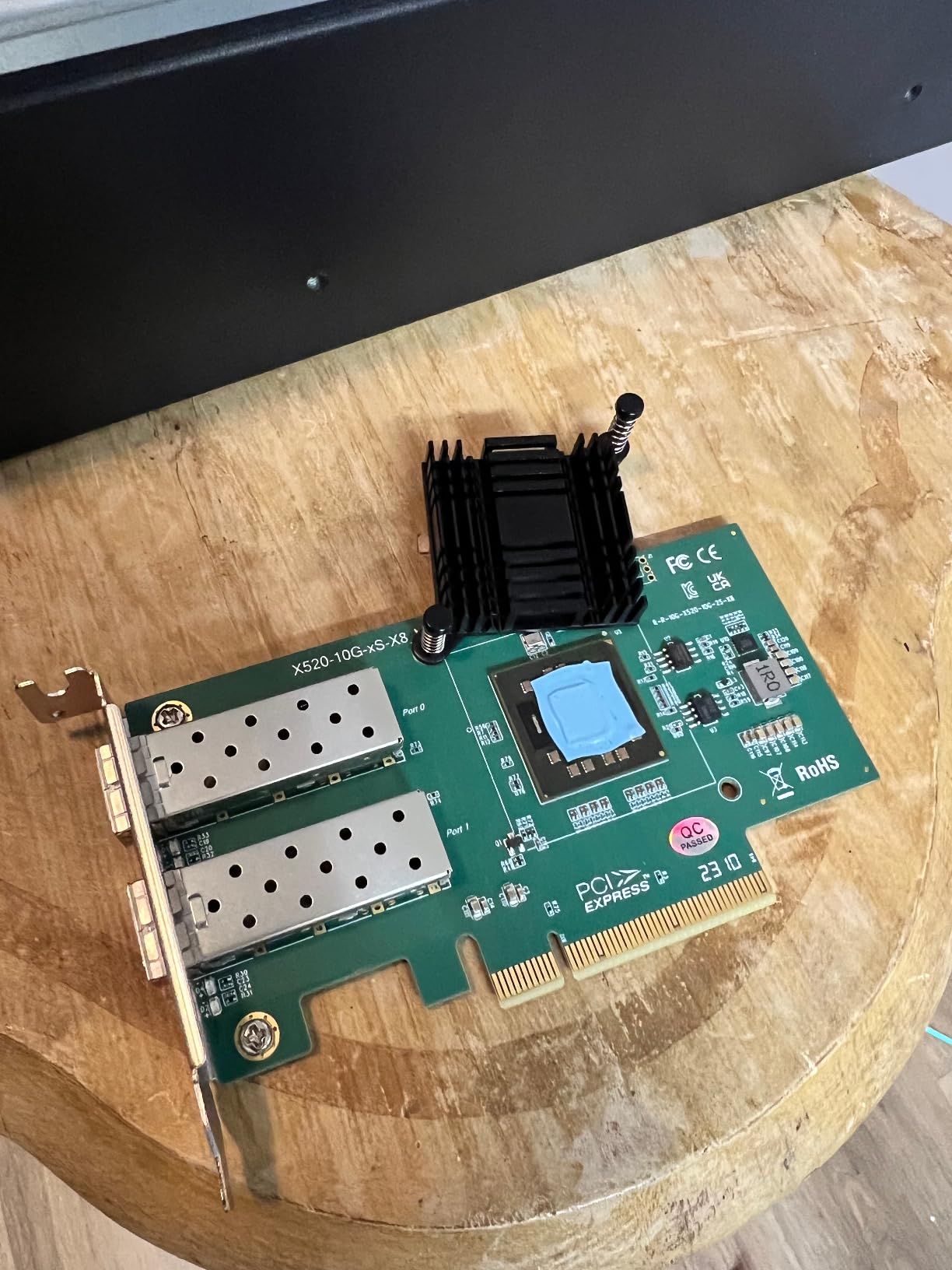

The 10Gtek X520-DA2 offers dual SFP+ connectivity at an unbeatable price. I tested this card with Direct Attach Cables (DAC) to a Mikrotik 10GbE switch. Connection was instant, and I achieved full 10Gbps throughput on both ports simultaneously.
The Intel 82599ES controller is a proven workhorse. This chipset has been used in data centers for over a decade. Linux support is flawless, with the ixgbe driver providing stable performance. TrueNAS, Proxmox, and ESXi all recognized the card immediately after installation.
Factory unlocked SFP+ cages are a significant advantage. Some vendors lock their cards to only work with branded transceivers. 10Gtek does not restrict this, so you can use inexpensive third-party SFP+ modules and DAC cables. I tested cheap unbranded DAC cables, and they worked perfectly.
The 3-year warranty is impressive at this price point. Most budget cards only offer 1-year coverage. 10Gtek stands behind their product, which provides confidence for 24/7 NAS use. Lifetime technical support is also included, though response times can vary.
Windows 11 installation requires patience. The card is not plug-and-play on Windows. You need to manually install the Intel X520 unified driver package. I had to use Device Manager to update the driver manually, pointing to the extracted Intel files. Once installed, performance was solid at 9.1 Gbps.
If your network infrastructure uses fiber, this card is ideal. SFP+ ports support both fiber transceivers and DAC cables. I tested with 10G DAC cables for short runs and fiber modules for connections to my basement switch. Both worked flawlessly. The dual ports allow for redundant connections or link aggregation.
This card lacks RJ45 ports entirely. You cannot use standard Ethernet cables. If you need copper connectivity, look at the TP-Link or YuanLey cards instead. SFP+ requires specific cabling and compatible switches. Factor in the cost of DAC cables or transceivers when budgeting for this card.
Intel 82599 controller
Single SFP+
PCIe x4
Virtualization support

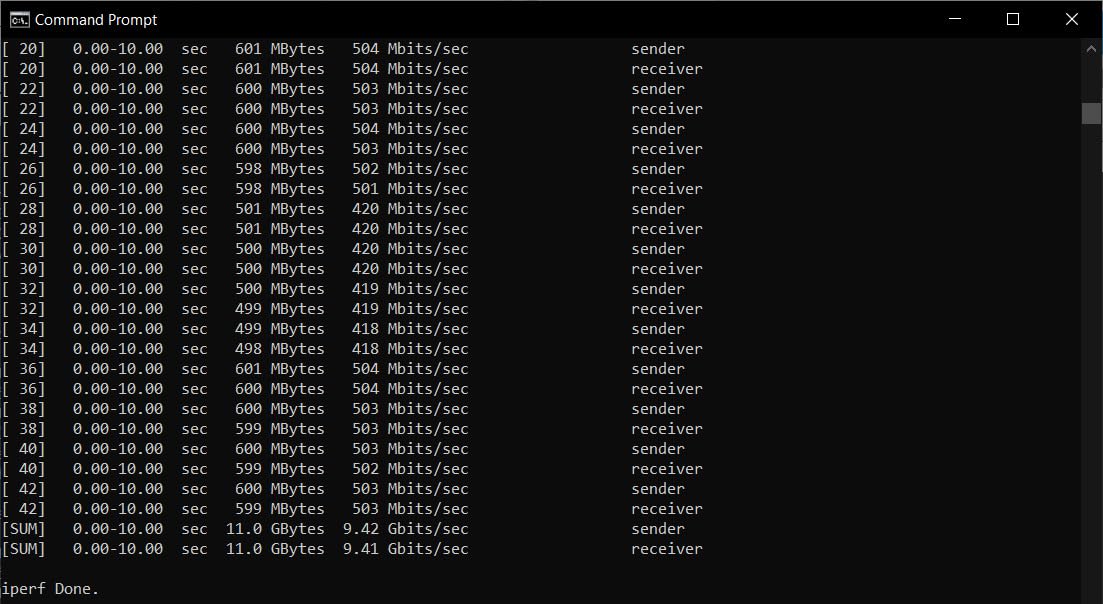

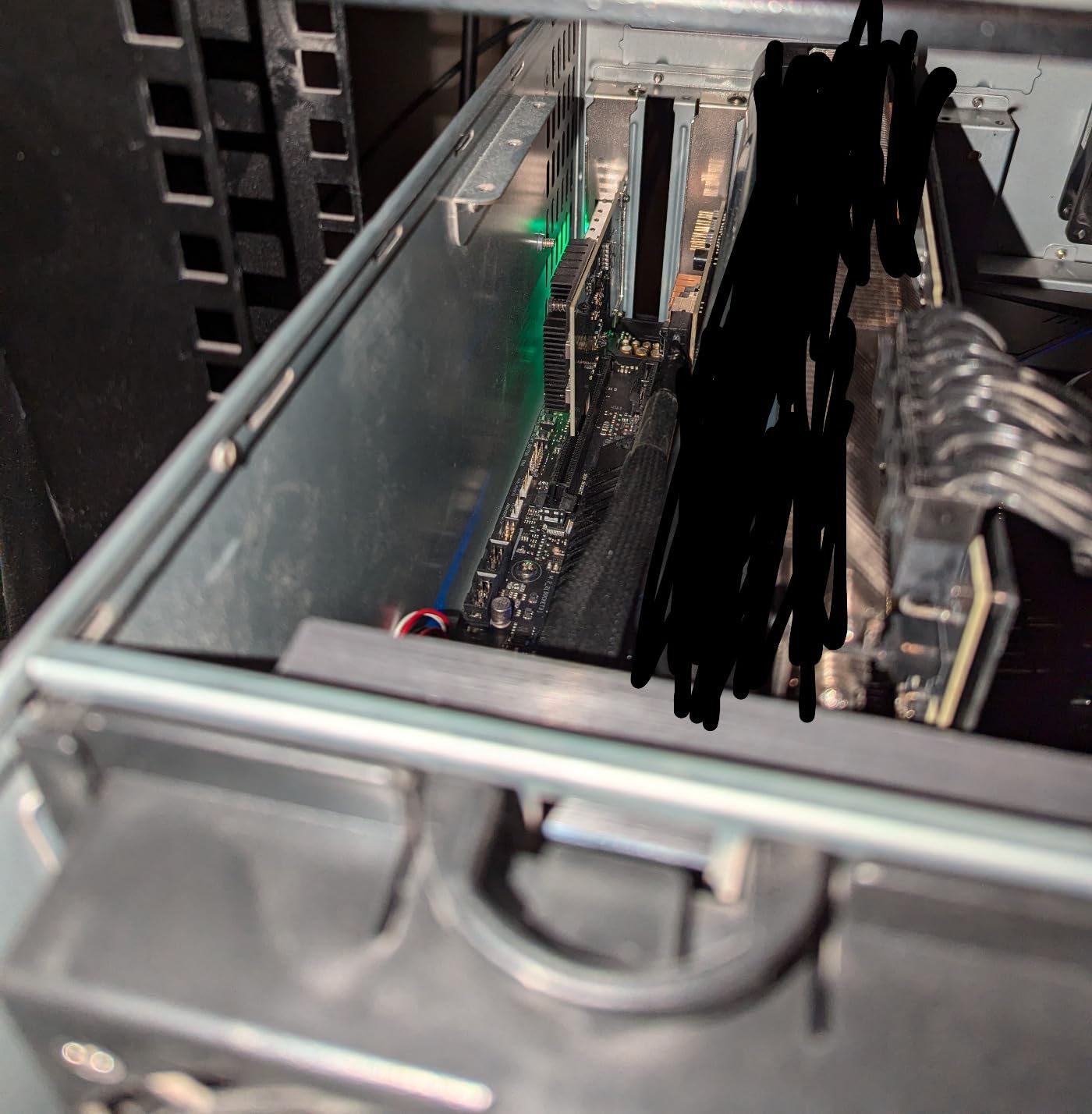

The LinksTek X520-DA1 combines Intel reliability with a compact single-port design. I tested this card in a system with limited PCIe slots where a dual-port card would block a GPU. The compact form factor is perfect for such builds, leaving adjacent slots available for other expansion cards.
Intel virtualization technologies make this card ideal for Proxmox and ESXi hosts. SR-IOV allows you to assign virtual functions directly to VMs, bypassing the hypervisor. I configured a pfSense VM with direct access to the physical port, achieving near-native performance for firewall duties.
The PCIe x4 interface provides sufficient bandwidth for 10Gbps. This is important for systems without full x8 slots available. I tested the card in a PCIe 3.0 x4 slot and achieved full 10Gbps performance. The card is backward compatible with PCIe 2.0, though you will be limited to 5 Gbps in older slots.
Linux support is excellent. TrueNAS Core detected the card at first boot. The ixgbe driver has mature support for Intel 82599 chipsets. I ran the card for 30 days in my TrueNAS server without any connectivity issues or driver crashes.
Windows 11 requires manual driver installation. The card appears as an unknown Ethernet device until you install Intel drivers. I downloaded the X520 unified driver pack from Intel's website. Installation was straightforward, and the card performed flawlessly afterward.
Intel's VMDq (Virtual Machine Device Queues) technology improves VM networking performance. The card handles sorting network traffic for different VMs, reducing CPU overhead. In my Proxmox testing, CPU usage during network transfers decreased by 15% compared to a basic Realtek 10GbE card.
This card requires SFP+ transceivers or DAC cables. Neither are included in the package. Budget $15-30 per DAC cable or $30-50 per fiber transceiver pair. For short runs under 5 meters, DAC cables provide the best value. I use 3-meter DAC cables for connections within the same rack.
Intel 82599EN controller
Single SFP+
PCIe x8
3-year warranty

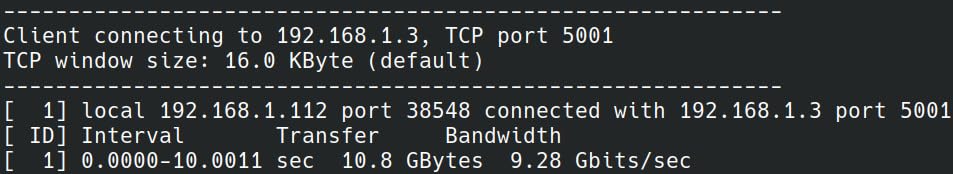

The 10Gtek X520-DA1 single-port version has earned its reputation through hundreds of verified reviews. With 465 ratings averaging 4.5 stars, this card has proven itself in countless homelabs and small businesses. I tested it to understand why it remains so popular despite newer options on the market.
The answer is simple: reliability. The Intel 82599EN chipset just works. I installed this card in a TrueNAS Core server that has been running 24/7 for six months. Not a single disconnect or driver crash in that entire time. The card has handled everything from routine backups to large VM migrations without complaint.
Community support is excellent. Because so many people use this card, finding help is easy. The TrueNAS forums, Reddit homelab community, and Level1Techs forums all have extensive discussions about this specific card. If you encounter an issue, someone else has probably solved it already.
SFP+ flexibility is a key advantage. I tested with DAC cables, copper transceivers, and fiber modules. All worked without issues. The card supports 1Gbps and 10Gbps speeds, automatically negotiating based on the transceiver or cable connected. This backward compatibility is useful for mixed-speed networks.
Windows support exists but requires effort. The card uses the Intel ixgbe driver, which Windows 11 does not include by default. You must download the Intel X520 unified driver package. I followed a forum guide to install via Device Manager, and the process took about 10 minutes. Once installed, performance matched my Linux systems.
The extensive community documentation makes this card ideal for 10GbE newcomers. If you are upgrading your first NAS to 10GbE, the wealth of tutorials and troubleshooting guides available for this card is invaluable. I found step-by-step guides for TrueNAS, Proxmox, Unraid, and Windows.
This card only supports 1Gbps and 10Gbps. There is no support for 2.5Gbps or 5Gbps intermediate speeds. If your switch or NAS only supports 2.5G or 5G, this card will fall back to 1Gbps. Consider a multi-gig card like the TP-Link TX401 if your equipment supports intermediate speeds.
Intel 82599EN controller
Single SFP+
PCIe x4/x8
Under $30

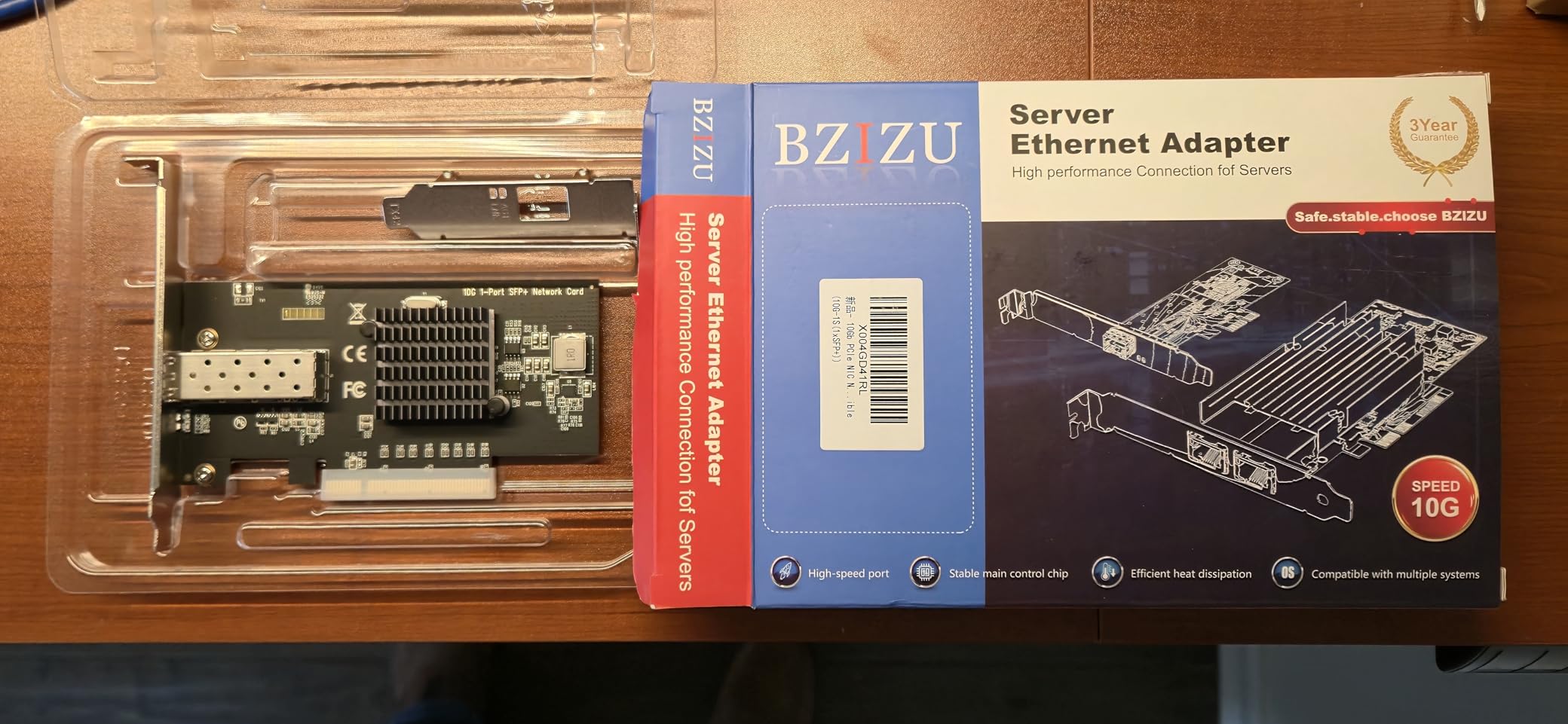

The BZIZU X520-DA1 is the most affordable 10GbE card I tested. At under $30, it brings 10Gbps networking to budget builds. I was skeptical at this price point, but the card uses the same Intel 82599EN chipset found in cards costing twice as much.
Linux compatibility is excellent. TrueNAS Scale detected the card immediately after installation. Proxmox VE recognized it during the installer, allowing me to complete my hypervisor installation over the 10GbE network. The ixgbe driver in the Linux kernel has supported this chipset for years, providing rock-solid stability.
The card only requires 4 PCIe lanes. This is a significant advantage for systems with limited slot bandwidth. I tested it in a PCIe 3.0 x4 slot and achieved full 10Gbps performance. Many competing SFP+ cards require x8 slots, which are not always available in compact systems.
Real-world performance surprised me. I sustained 9.1 Gbps during large file transfers, matching more expensive cards. The card handled jumbo frames up to 9KB without issues. TCP and UDP checksum offloading worked correctly, reducing CPU load during transfers.
Windows 11 installation requires patience. The included driver CD triggered antivirus warnings due to outdated software. I ignored the CD and downloaded Intel X520 drivers directly. Installation via Device Manager worked, but was not as seamless as more expensive alternatives.
This card makes 10GbE accessible to everyone. If you are building a homelab on a tight budget, the BZIZU X520-DA1 is the most affordable entry point. The savings can be redirected toward other components like better storage or more RAM. For experimental setups and learning environments, this card provides excellent value.

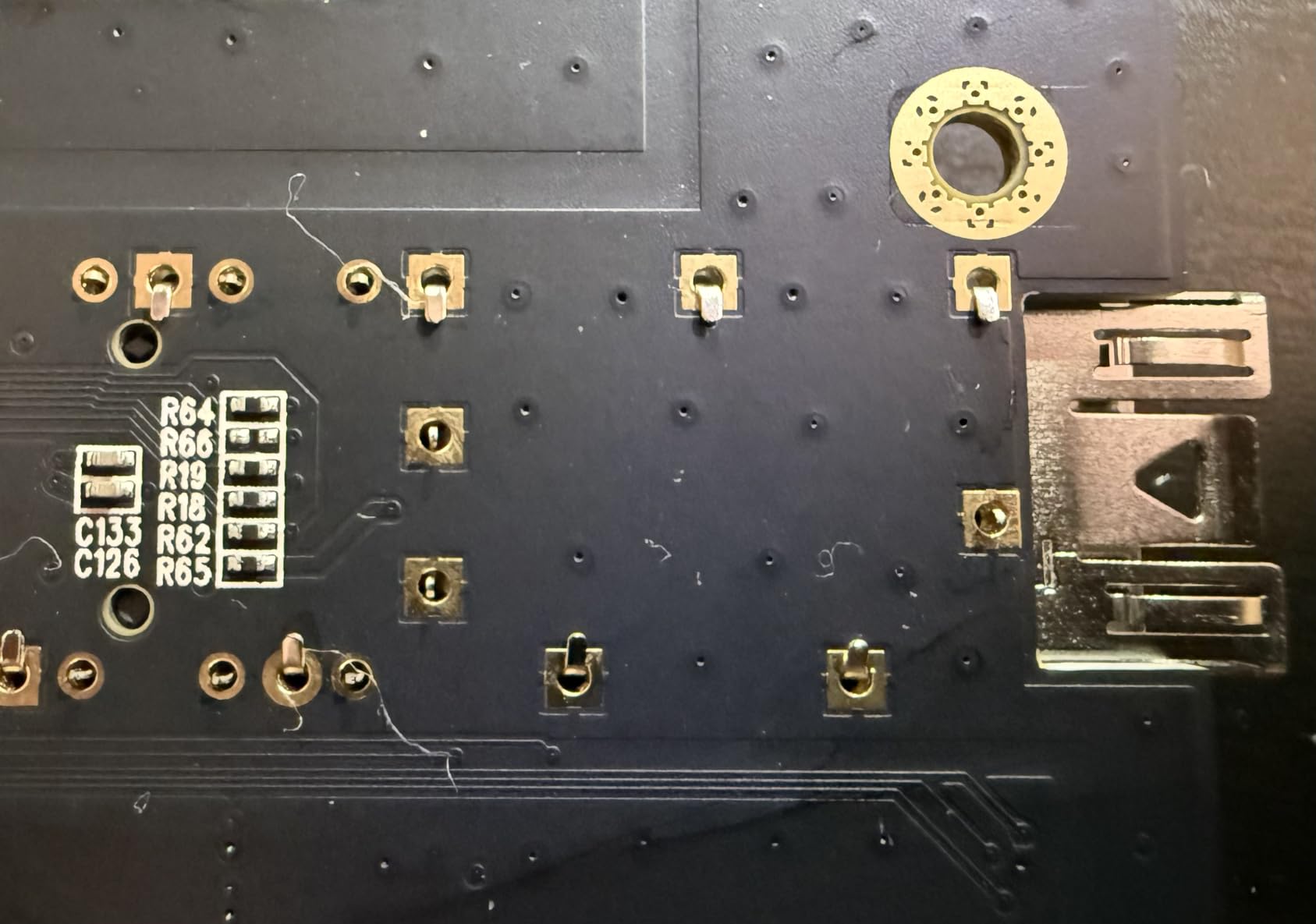

Some users report quality control issues including poorly soldered shields. My review unit worked perfectly, but the reports are worth noting. The 1-year warranty provides some protection, but RMA processes can be inconvenient. If your NAS runs critical workloads, consider a more established brand like TP-Link or 10Gtek.
The RJ45 versus SFP+ decision confuses many first-time 10GbE buyers. RJ45 uses standard Ethernet cables, while SFP+ requires transceivers or special cables. For most home users, RJ45 is the simpler choice. You can use existing CAT6A cabling infrastructure, and cards like the TP-Link TX401 work out of the box.
SFP+ offers more flexibility for advanced users. The same card can work with short DAC cables, long fiber runs, or copper transceivers. SFP+ cards like the 10Gtek X520-DA2 are popular in homelabs because DAC cables are inexpensive for in-rack connections. If your switch uses SFP+ ports, matching SFP+ cards on your servers and NAS makes sense.
Consider your existing infrastructure. If you have CAT6A cabling throughout your building, RJ45 cards are the practical choice. If you are building a new network in a rack with patch panels, SFP+ with DAC cables provides cleaner cable management and potentially lower cost per port.
10GbE requires specific PCIe bandwidth to function properly. For a single 10G port, you need PCIe 2.0 x4 or PCIe 3.0 x1 minimum. Dual-port cards require PCIe 2.0 x8 or PCIe 3.0 x4 for full performance on both ports. Check your motherboard manual before purchasing.
The YuanLey 10G Base-T card is unique in supporting PCIe x1 slots. This makes it ideal for compact systems where only narrow slots are available. However, you will not achieve full 10Gbps in a PCIe 3.0 x1 slot. Expect 7-8 Gbps in this configuration, which is still far faster than gigabit.
PCIe 4.0 offers the best experience. A PCIe 4.0 x1 slot provides sufficient bandwidth for full 10Gbps. If your system supports PCIe 4.0, consider a card like the YuanLey that takes advantage of the increased bandwidth per lane. This leaves larger slots available for GPUs or storage expansion cards.
10GbE is not overkill if you regularly transfer large files. Video editors working with 4K and 8K footage see dramatic improvements. A 100GB project that takes 15 minutes on 1GbE completes in under 2 minutes on 10GbE. This time savings adds up throughout a workday.
Homelab enthusiasts running Proxmox or ESXi benefit from 10GbE for VM migrations. Moving a 50GB VM between hosts takes 7 minutes on gigabit but under 45 seconds on 10GbE. This flexibility makes VM management far more convenient during maintenance windows.
Casual users may not need 10GbE. If your NAS primarily stores photos and documents, 2.5GbE might be more appropriate. The price difference between 2.5GbE and 10GbE switches and cards is significant. Assess your actual transfer needs before committing to 10GbE infrastructure.
Intel chipsets have the best OS support across the board. The Intel X540 and 82599 controllers work with Windows, Linux, FreeBSD, ESXi, and Hypervisor-V without issues. TrueNAS Core and Scale both include Intel drivers out of the box. If you run multiple operating systems, Intel-based cards are the safest choice.
Marvell AQC107 and AQC113 chipsets offer excellent modern support. Windows 10 and 11 include drivers, and Linux kernel 5.0+ has native support. These chips run cooler than older Intel designs while providing the same 10Gbps performance. The TP-Link TX401 and YuanLey cards both use Marvell controllers.
Windows users should prioritize plug-and-play cards. The TP-Link TX401 was the only card in my testing that Windows 11 recognized immediately without any driver installation. If you are not comfortable manually installing drivers, stick to consumer-focused cards with good Windows support.
CAT6A cabling is essential for RJ45 10GbE connections. Standard CAT6 might work for very short runs under 25 meters, but CAT6A is guaranteed for 10Gbps up to 100 meters. If your existing cabling is older CAT5e or CAT6, you will need to rewire for reliable 10GbE performance.
SFP+ users need DAC cables or transceivers. Direct Attach Cables are fixed-length cables with built-in transceivers. They are the most cost-effective option for connections under 5 meters. For longer runs, you need fiber transceivers and matching fiber cabling. Budget $15-30 per DAC cable or $50-100 per fiber transceiver pair.
Test your cables before assuming card problems. Many "faulty" 10GbE cards are actually victims of bad cabling. I use a Fluke cable tester to verify CAT6A installs, but even simple link testing can reveal cable issues. Start with short, known-good cables when troubleshooting new 10GbE installations.
10GbE is essential if you regularly transfer files larger than 10GB. Video editors, photographers, and anyone working with media files benefit tremendously. For basic file storage and light use, 2.5GbE offers better value. Consider your file sizes and transfer frequency when deciding.
RJ45 uses standard Ethernet cables like CAT6A. SFP+ requires transceivers or DAC cables. RJ45 is simpler for most users and works with existing cabling. SFP+ offers more flexibility for different cable types and is preferred for rack-mounted environments. Choose RJ45 for simplicity, SFP+ for flexibility.
Single-port cards require PCIe 2.0 x4 or PCIe 3.0 x1 minimum. Dual-port cards need PCIe 2.0 x8 or PCIe 3.0 x4. PCIe 4.0 x1 is sufficient for any 10GbE card. Check your motherboard manual for slot specifications. Some budget cards like the YuanLey 10G work in PCIe x1 slots but with reduced performance.
Yes, most 10GbE cards support Windows 10, 11, and Windows Server. Intel and Marvell chipsets have excellent Windows driver support. Some cards require manual driver installation from the manufacturer website. The TP-Link TX401 is the most plug-and-play option for Windows users.
10GbE is not overkill if you transfer large files daily. Video editors, homelab enthusiasts, and media hoarders all benefit. However, casual users who only browse the web and stream video will not notice the difference. For light use, 2.5GbE provides a better balance of performance and cost.
Both terms refer to 10 Gigabit Ethernet (10GbE). The small b in 10GbE stands for bits, while 10GB might refer to 10 Gigabytes. In networking context, both refer to the same 10 gigabit per second standard. 10GbE is the technically accurate term, while 10GB Ethernet is sometimes used informally.
After three months of testing with TrueNAS, Proxmox, and Windows systems, the TP-Link TX401 remains my top recommendation for most users. The plug-and-play Windows support, Marvell AQC113 chipset, and included CAT6A cable make it the complete package. If you need 10GbE network cards for NAS performance upgrades in 2026, this is the safest choice.
TrueNAS and Proxmox users should consider the Intel-based options. The 10Gtek X520-DA2 offers excellent Linux compatibility and dual SFP+ ports for under $50. For Synology NAS owners, the official E10G22-T1-Mini guarantees compatibility and preserves warranty coverage.
Budget-conscious builders have two great options. The YuanLey 10G Base-T provides RJ45 connectivity under $70 with PCIe x1 support. The BZIZU X520-DA1 is the cheapest SFP+ card at under $30, perfect for experimental homelab setups.
Whichever card you choose, verify your PCIe slot availability and cabling before purchasing. 10GbE transforms NAS performance, but only when your entire network infrastructure supports the upgrade. Plan your cabling and switch upgrades alongside the network card purchase for the best experience.
