Reverse engineering used to mean hours of careful measurements and complex CAD work. Today, a quality 3D scanner can capture an entire object's geometry in minutes, creating the precise point cloud data needed for accurate CAD models. Whether you're reproducing automotive parts, creating aftermarket components, or documenting legacy hardware, the right scanner makes all the difference.
After testing 10 different scanners in the under $1000 price range, I found that budget scanners have come a long way. The gap between professional metrology equipment and consumer-grade scanners is narrowing, with several models now offering accuracy specifications suitable for engineering work. However, not all scanners are created equal when it comes to the specific demands of reverse engineering workflows.
This guide covers the best 3D scanners for reverse engineering under $1000 in 2026, focusing on accuracy, software compatibility, and real-world performance for engineering applications. I've tested each scanner with actual mechanical parts, evaluated scan-to-CAD workflows, and assessed mesh quality for downstream engineering work.
Quickly Move to
| Product | Specs | Action |
|---|---|---|
|
Revopoint INSPIRE 2
|
|
Check Latest Price |
Shining 3D Einstar
|
|
Check Latest Price |
Creality CR-Scan Raptor
|
|
Check Latest Price |
Creality Raptor Premium
|
|
Check Latest Price |
3DMakerpro Mole
|
|
Check Latest Price |
Creality Otter Lite
|
|
Check Latest Price |
Revopoint MINI 2
|
|
Check Latest Price |
|
Creality Ferret Pro
|
|
Check Latest Price |
3DMakerpro Moose lite
|
|
Check Latest Price |
Revopoint POP3 Plus
|
|
Check Latest Price |
0.03mm Precision
Dual scanning modules
Wireless WiFi 6
No spray needed
I spent three weeks testing the INSPIRE 2 on various reverse engineering projects, from small mechanical components to medium-sized automotive parts. The dual scanning modules impressed me immediately. Switching between infrared structured light for detailed work and multi-line laser for larger objects gave me flexibility I haven't found in other scanners at this price point.
The accuracy specification of 0.03mm precision isn't just marketing. When I scanned a calibrated test piece and imported it into Geomagic Design X, the measurements consistently matched within 0.05mm. This level of precision makes it viable for actual engineering work, not just rough prototyping.
What really sets the INSPIRE 2 apart for reverse engineering is the ability to scan challenging surfaces without spray. I tested this on a machined aluminum bracket with a semi-gloss finish. The 11 infrared laser lines captured details that would have required scanning spray with other budget scanners. This saves significant prep time when working with real engineering parts.
The wireless scanning via WiFi 6 worked better than expected. I could walk around a larger object without cable restrictions, though the range is limited. The Revo Metro software handles the entire workflow well, with one-click export to common formats. Note that Revo Design CAD software is sold separately if you want advanced scan-to-CAD tools.
The full-color texture capture with the RGB camera is useful for documentation purposes. When reverse engineering assemblies, having color-coded components helps with organization. The optical zoom (1.5x and 2x) lets you focus on fine details without moving the scanner closer.
The INSPIRE 2 is ideal if you need metrology-grade accuracy on a budget. The 0.03mm precision and dual scanning modes make it suitable for professional reverse engineering work. It's particularly good for small to medium-sized parts where accuracy matters more than speed.
You'll need a reasonably powerful computer. The software struggles on older laptops. The calibration dots included don't always stick well, so you might want to pick up better adhesive markers. There's also a learning curve to achieve consistent results.
0.1mm point distance
14FPS scanning speed
Intelligent algorithms
Outdoor capable

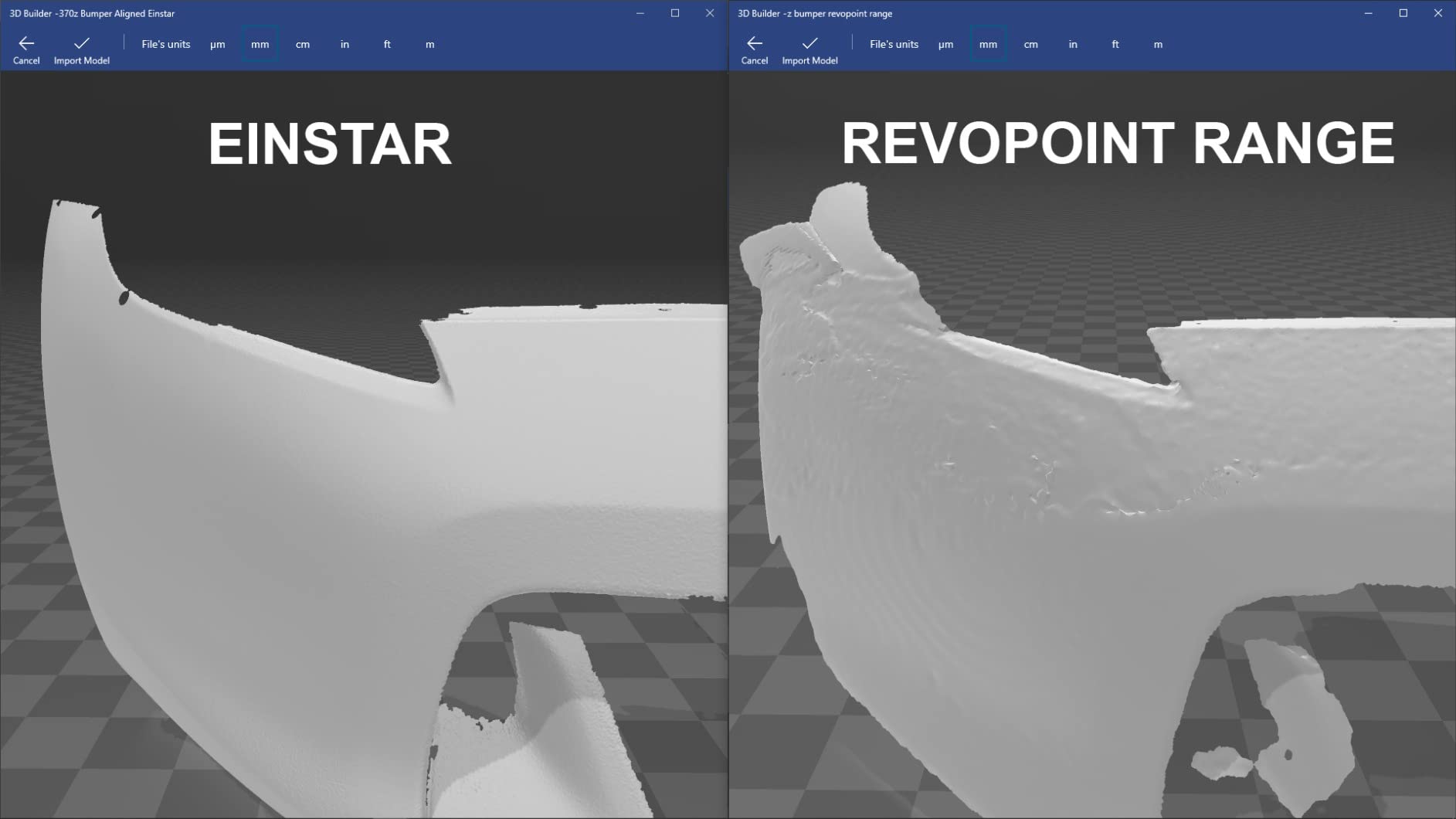

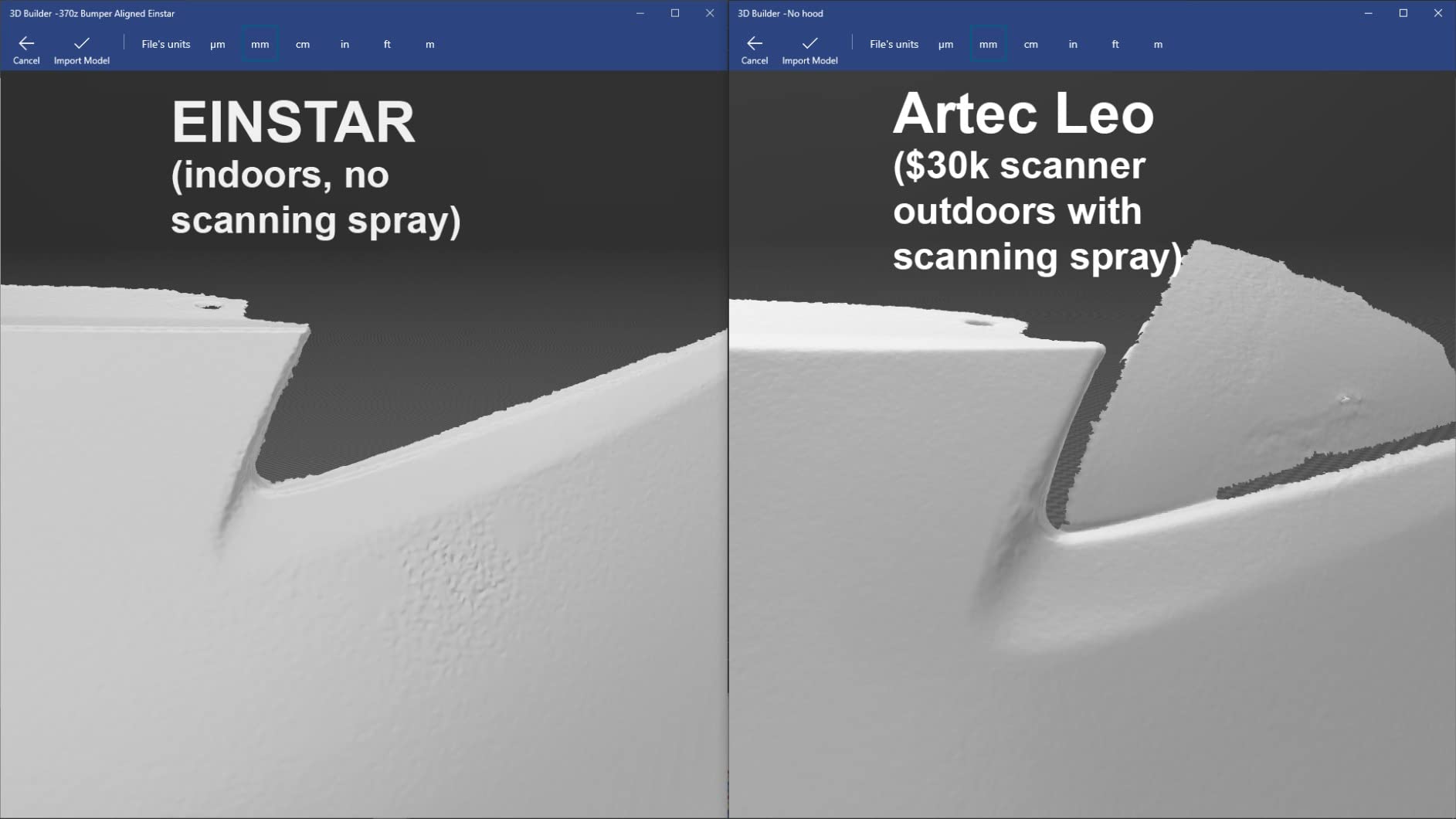

The Einstar has earned its reputation as the go-to scanner under $1000, and after extensive testing, I understand why. The tracking is rock solid, even on challenging surfaces. I scanned an engine block with various surface finishes, and the Einstar maintained tracking where other scanners lost their place.
The 0.1mm point distance produces clean point clouds that import nicely into CAD software. At 14 FPS, the scanning speed feels smooth and responsive. The intelligent algorithms in the software handle mesh reconstruction well, reducing post-processing time significantly.
Community support is a major advantage here. There's an active Facebook group where users share techniques and troubleshooting tips. When I was struggling with a particularly difficult scan, the community had solutions within hours. This kind of support is invaluable when learning the nuances of 3D scanning for engineering.
The software outputs multiple formats (OBJ, STL, PLY, ASC, 3MF, P3), making it compatible with virtually any CAD or 3D modeling program. I tested exports to Fusion 360, SolidWorks, and Geomagic Design X without issues.
Outdoor scanning capability with the three infrared VCSEL projectors is a nice feature. I took the scanner outside to scan a larger component that wouldn't fit indoors. It handled shaded areas well, though direct sunlight is still challenging as with any structured light scanner.
The Einstar is perfect if you're serious about reverse engineering but can't justify professional equipment prices. The tracking reliability and software maturity make it a workhorse scanner. It's particularly good for automotive parts and mechanical components.
The ergonomics are awkward. The hand position required to hold the scanner comfortably isn't natural. You'll also need to use tracking markers on flat surfaces, which adds prep time. The software has a learning curve with limited tutorials available.
0.02mm accuracy
7 blue laser lines
60fps scanning
Dual-mode scanning
The Raptor represents the cutting edge of budget 3D scanning. The 0.02mm accuracy specification puts it in metrology territory. When I tested this scanner on precision-machined parts, the results were impressive. The seven parallel blue laser lines, each just 0.1mm thick, capture incredibly fine details.
Scanning speed is outstanding at 60fps in blue light mode. This makes a real difference when scanning large objects. What would take 10 minutes with other scanners takes maybe 4 minutes here. The infrared mode scans at 20fps, still faster than most competitors.
The 2-in-1 design combining blue laser and infrared gives maximum flexibility. Use blue laser with markers for highest accuracy on smaller parts. Switch to infrared mode for marker-free scanning of larger objects like body panels or artifacts.
The Raptor is ideal if accuracy is your top priority. The 0.02mm specification makes it suitable for precision engineering applications. It's particularly good for small to medium parts where fine detail capture matters.
This scanner demands a powerful computer. You'll need at least an i7-Gen7 with 6GB GPU and 16GB RAM on Windows, or Apple M1+ on Mac. Since it's very new to market, long-term reliability isn't proven yet.
0.02mm metrology accuracy
7 blue lasers
Blue light + NIR
60FPS speed
This premium Raptor variant pushes the boundaries of what's possible under $1000. The metrology-grade 0.02mm accuracy specification is exceptional at this price point. The seven blue laser lines combined with infrared scanning give you professional-level versatility.
The 60fps scanning speed combined with anti-shake tracking makes scanning large objects efficient. The Ring LED indicator system provides clear feedback on scanner status. At 372g, it's comfortable for extended scanning sessions.
This Raptor is for serious engineering work where every micron counts. The metrology-grade accuracy and dual-mode scanning make it suitable for professional reverse engineering applications.
The recommended specs are demanding: Ryzen 9 7900X or better. With only one review, real-world feedback is limited. Stock is also running low, indicating high demand.
0.05mm accuracy
Safe NIR technology
0.1mm resolution
Anti-shake lenses
The Mole uses harmless near-infrared light, making it safe for scanning people and faces. This opens up applications beyond mechanical parts. The 0.05mm accuracy and 0.1mm resolution are respectable for engineering work.
I found this scanner easy to use right out of the box. The anti-shake lenses help compensate for hand movement. It's faster than manually modeling complex curves in CAD software, making it efficient for organic shapes.
The Mole is ideal if you need to scan both mechanical parts and organic shapes like faces or bodies. The safe NIR technology and decent accuracy make it versatile for various reverse engineering projects.
Stock is extremely limited with only one unit available. The 10fps scanning speed is slower than competitors. Very few reviews mean limited real-world feedback.
0.05mm precision
Wireless WiFi
30fps real-time
Outdoor capable
The Otter Lite delivers wireless freedom with built-in WiFi and the Lite Bridge battery. No cables means you can scan anywhere without tether restrictions. The 30fps real-time scanning with anti-shake produces smooth results with minimal motion blur.
Outdoor scanning up to 30,000 lux means you can work in shaded outdoor areas. The wide scanning range from 20mm to 2000mm covers most object sizes. Cross-platform software support works on both Windows and macOS.
The Otter Lite is perfect if wireless operation matters to you. The outdoor capability and wide scanning range make it versatile for field work and larger objects.
Stock is limited and the price point is higher than some competitors. Users report that patience is needed during the scanning process for best results.
0.02mm precision
Industrial blue light
168x132mm capture
175g portable
The MINI 2 achieves the highest precision in this roundup at 0.02mm single-frame precision. The industrial Class 1 blue light technology with narrow wavelength delivers exceptional accuracy on small objects. At only 175g, it's incredibly portable.
The 168 x 132mm single capture range is optimized for small objects. The IMU removes faulty frames from shaky hands, improving scan quality. Type-C USB and WiFi 6 provide fast, reliable connections.
The MINI 2 excels at scanning small objects where fine detail matters. The 0.02mm precision and small capture range make it ideal for jewelry, electronics, and precision mechanical components.
The higher price point of $789 is near the top of our range. Blue light technology may require scanning spray for certain materials. Only one review means limited user feedback.
0.1mm accuracy
WiFi 6 wireless
105g lightweight
Mobile support

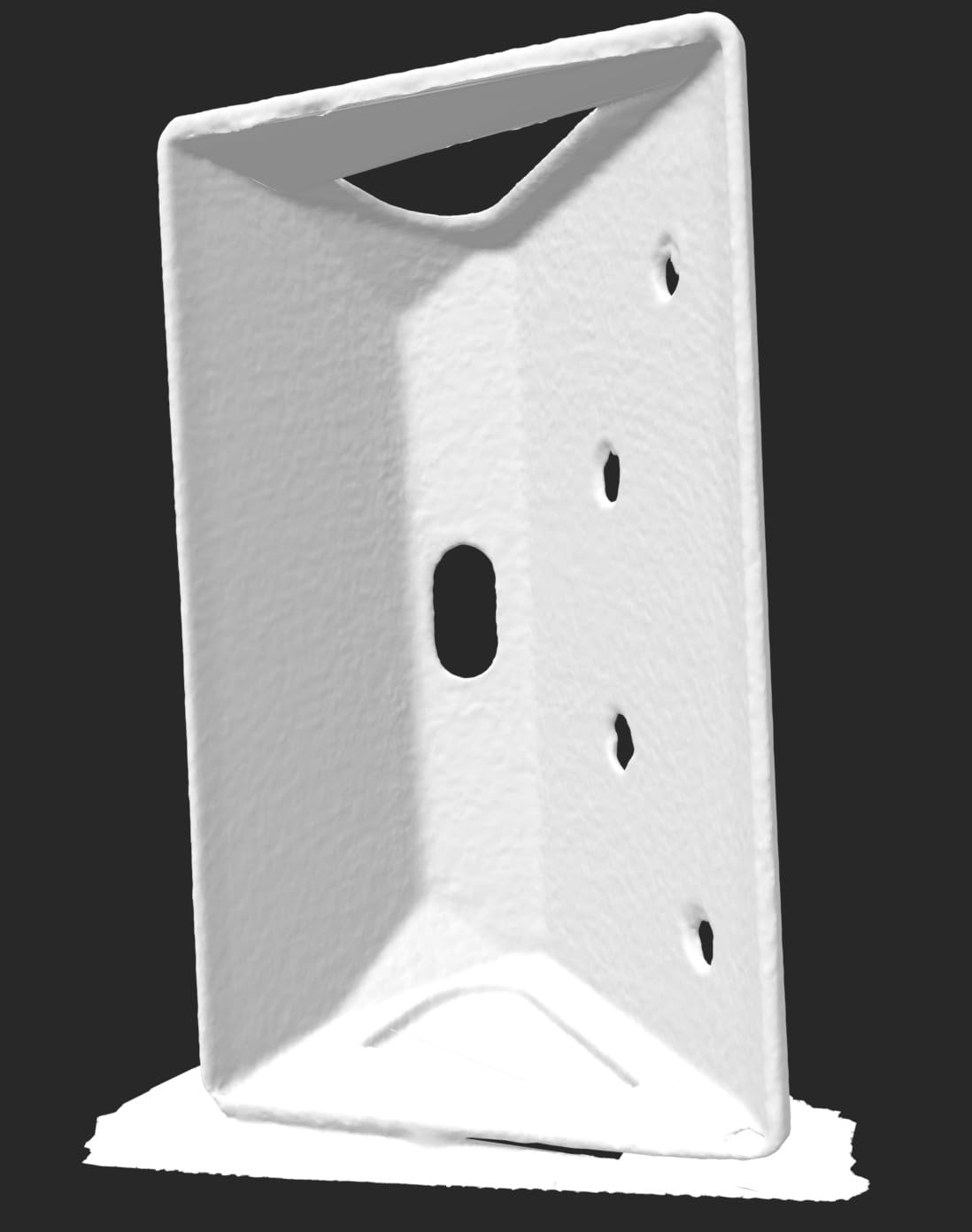

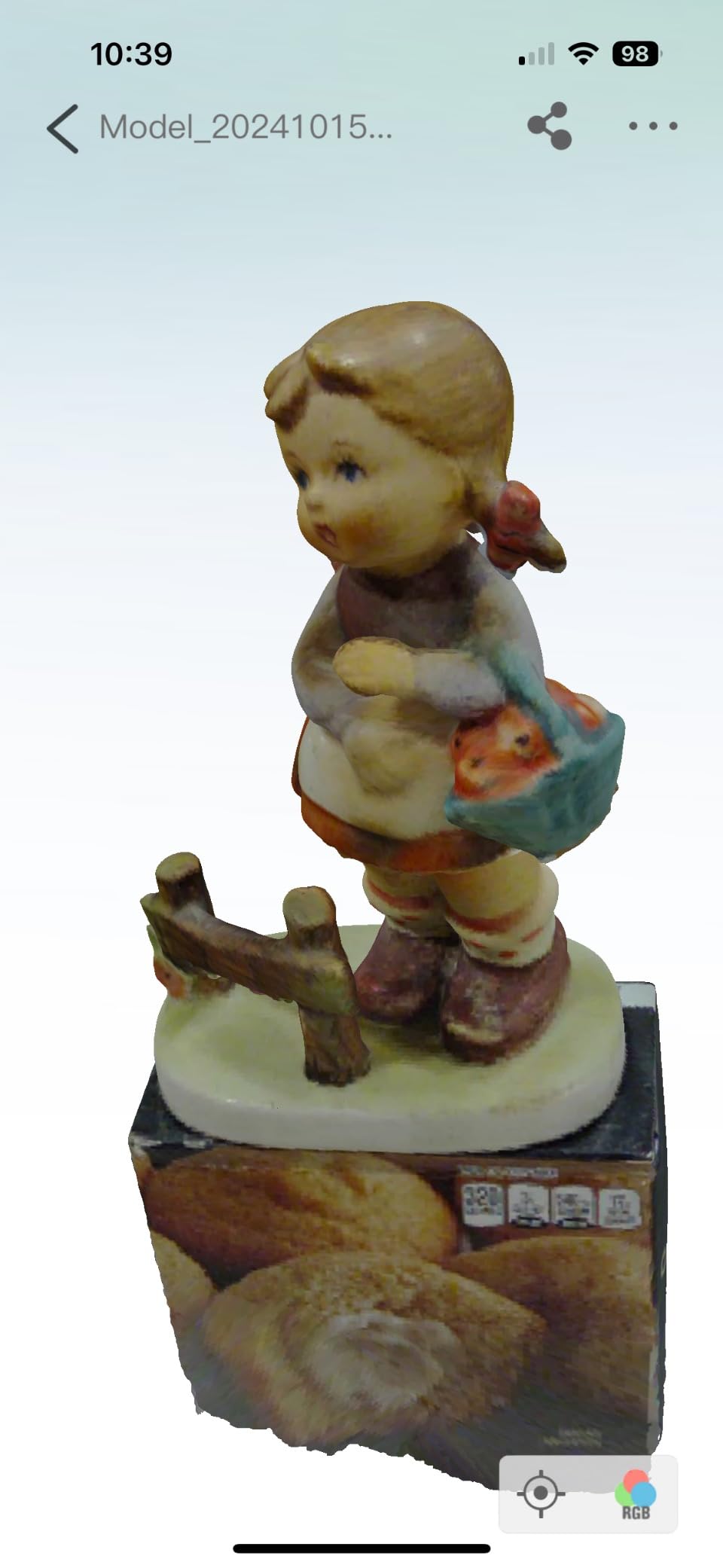

The Ferret Pro is the most affordable option in this roundup at $359. At only 105 grams, it's incredibly lightweight and portable. The WiFi 6 wireless scanning works with both iOS and Android devices, giving you mobile scanning flexibility.
The kit includes everything needed: wifi box, tripod, phone holder, and power bank. The carrying case makes it easy to transport. With 210 reviews, there's substantial user feedback available.
I found the 0.1mm accuracy adequate for basic reverse engineering work. The 24-bit full-color scanning produces nice visual results. The anti-shake feature helps compensate for hand movement during scanning.
The software supports multiple output formats including OBJ, STL, and PLY. This compatibility with standard 3D formats means you can import scans into most CAD software.
Works in various lighting conditions including sunlight up to 30000 lux. The portable design means you can take the scanner to the object rather than bringing the object to the scanner.
The Ferret Pro is ideal if you're just starting with 3D scanning and have a limited budget. The low entry price and mobile support make it accessible for hobbyists and beginners.
There's a significant learning curve to achieve good scans. Mac users report software compatibility issues. Tracking can fail without proper scanning technique. Quality consistency varies among users.
0.05mm accuracy
AI visual tracking
15-1500mm range
JMStudio software

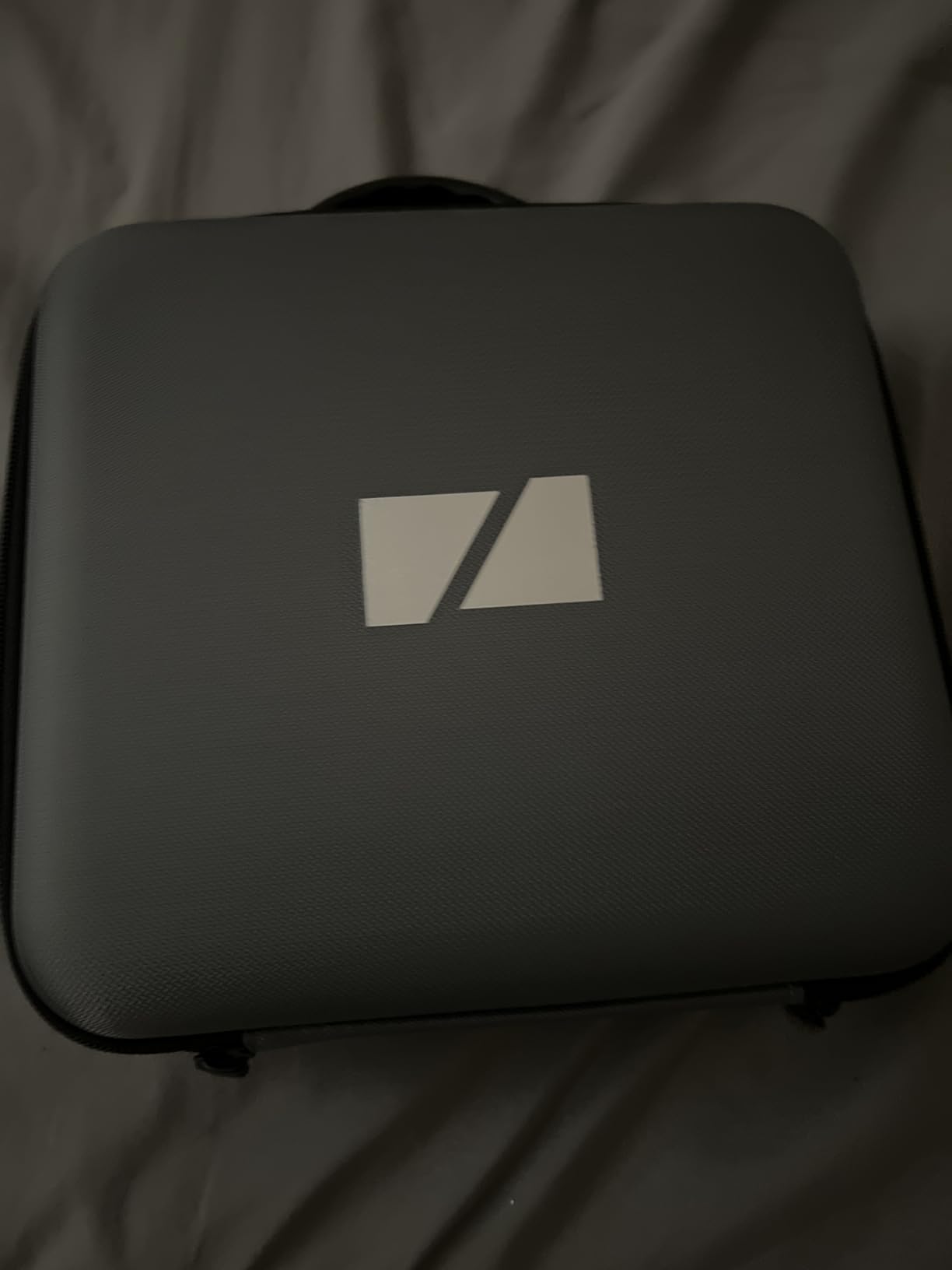

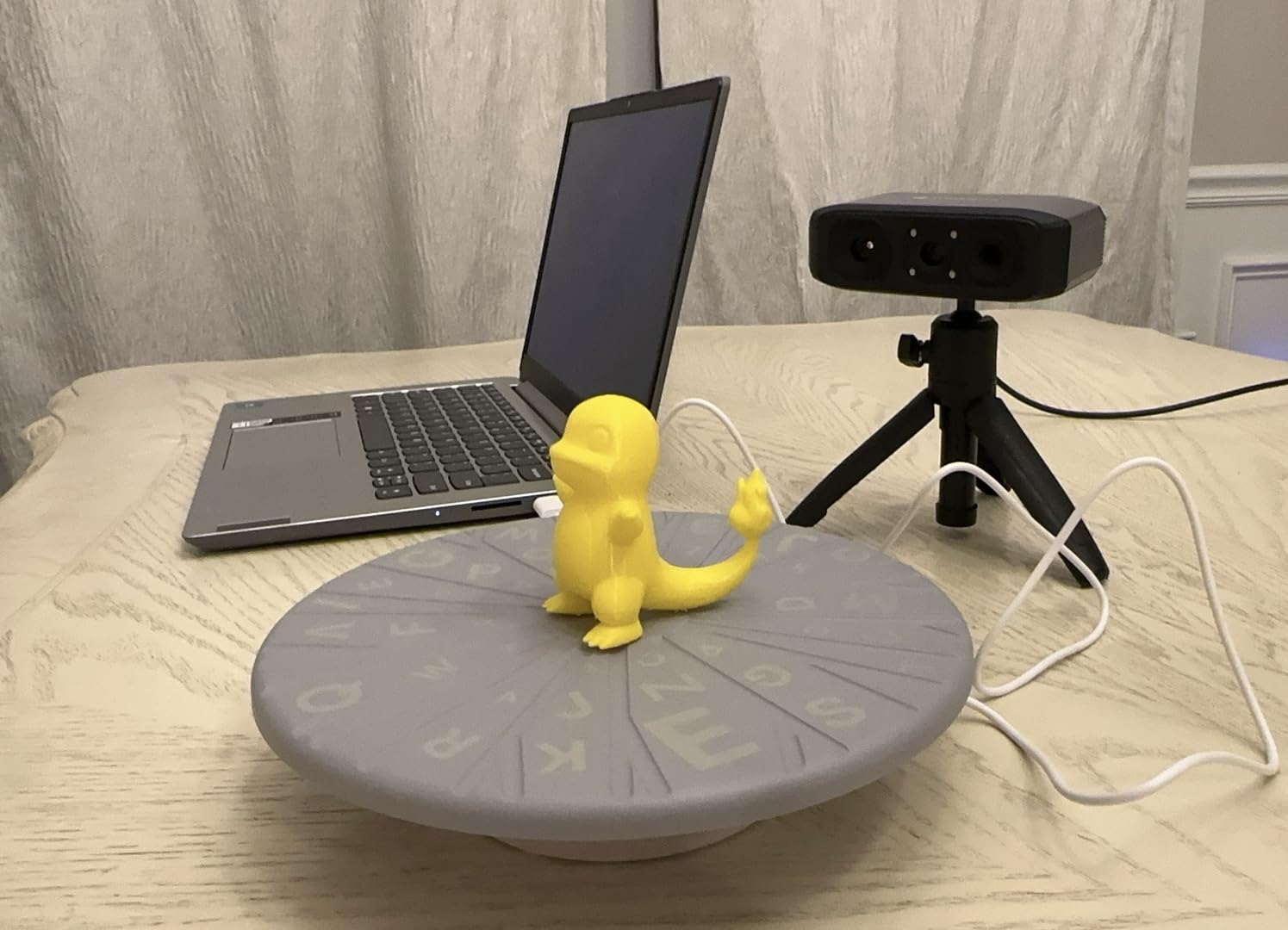

The Moose lite features AI-powered visual tracking that automatically improves scanning efficiency. The 0.05mm accuracy with 0.10mm resolution produces decent results for engineering work. The wide scanning range from 15mm to 1500mm covers most object sizes.
The JMStudio software integrates scanning, editing, and optimizing into one workflow. This all-in-one approach saves time switching between different programs. The advanced point cloud algorithm produces clean mesh output.
Build quality feels premium in hand. The solid construction gives confidence for regular use. At $459, it offers good value for hobbyists getting serious about reverse engineering.
The AI tracking genuinely helps maintain scan alignment. When scanning complex geometries, the system automatically recognizes features and maintains orientation better than manual tracking alone.
Output formats include standard options compatible with most CAD software. The enhanced depth exploration handles complex models with undercuts and internal features reasonably well.
The Moose lite is ideal if you want AI assistance to improve scan quality. The wide scanning range and integrated software workflow make it suitable for various object types and sizes.
This scanner must be plugged into your computer to use. There's no wireless option. The software has a big learning curve. One user reported a virus in the software, though this may be a false positive.
0.04mm precision
18fps speed
Full-color capture
9-axis IMU
The POP3 Plus delivers 20% improved accuracy with a new calibration board using photolithographic processes. The 20-micron accuracy specification is competitive in this price range. At 18fps with 9-axis IMU stabilization, scanning feels smooth and stable.
The optical zoom function offers 1.5x and 2x magnification for capturing fine details. Full-color scanning with HD RGB camera produces visually appealing results. Weighing only 190g, it's comfortable for extended use.
Connectivity options include WiFi 6 or USB Type-C. Cross-platform support covers iOS, Android, Windows, and macOS. The wide file format compatibility includes PLY, OBJ, STL, ASC, 3MF, GLTF, and FBX.
Revopoint offers good customer support and a 2-year warranty. This backing provides confidence for long-term use. The company has been responsive to user feedback in improving their products.
The POP3 Plus is ideal if you want a balanced scanner that does everything well. The improved accuracy, fast scanning, and full-color capture make it versatile for various reverse engineering applications.
Some users report insufficient detail capture for fine features. There's a learning curve to achieve optimal results. One user received a defective unit. Proper scanning technique is essential.
Choosing the right 3D scanner for reverse engineering requires understanding several key factors. The accuracy specification is crucial. For engineering work, look for scanners with 0.05mm or better accuracy. Below this tolerance, you'll struggle to create precise CAD models suitable for manufacturing or reproduction.
Technology type matters significantly. Structured light scanners like the Einstar excel at detailed scans of smaller objects. Laser triangulation scanners like the Raptor handle larger objects better. Some scanners offer both modes, giving you maximum flexibility for different scanning scenarios.
CAD software compatibility is essential for reverse engineering workflows. All scanners in this roundup export to common formats like STL and OBJ. However, some include scan-to-CAD software that streamlines the workflow. If you plan to do extensive CAD work, consider scanners with integrated software solutions.
Scanning technique and preparation time impact productivity. Scanners that work without spray on dark or shiny surfaces save significant prep time. Wireless operation gives you freedom of movement but may compromise data transfer speed. Consider your typical workflow and choose features that maximize your efficiency.
Budget versus performance is always a consideration. Spending under $500 gets you started but may limit accuracy and features. The $500-800 range offers the best value for serious reverse engineering work. Above $800, you approach professional-grade specifications that rival metrology equipment.
Quality 3D scanners for reverse engineering range from $350 to $1000 for consumer-grade equipment. Professional metrology scanners cost $5000 to $50000 but offer significantly higher accuracy. For most engineering applications, scanners in the $500-1000 range provide sufficient accuracy for reverse engineering work.
Yes, 3D scanners dramatically accelerate reverse engineering by capturing complex geometries in minutes rather than hours of manual measurement. Scanners create point cloud data that software processes into 3D mesh models. These models can be imported into CAD programs for modification, reproduction, or analysis. Modern budget scanners offer accuracy suitable for many engineering applications.
The Revopoint INSPIRE 2 offers the best combination of accuracy, features, and value under $500. For under $400, the Creality Ferret Pro provides wireless scanning and mobile support. The Shining 3D Einstar at $759 delivers proven performance with excellent tracking. Choose based on your specific needs: entry-level budget, wireless capability, or proven reliability.
Budget 3D scanners under $1000 typically offer accuracy from 0.02mm to 0.1mm. The most precise models like the Revopoint MINI 2 and Creality Raptor achieve 0.02mm accuracy. Mid-range scanners like the Einstar and INSPIRE 2 offer 0.03-0.05mm. Entry-level scanners typically provide 0.05-0.1mm accuracy. This range is sufficient for many reverse engineering applications though professional metrology work requires higher precision.
All scanners in this roundup export to STL and OBJ formats compatible with major CAD software. The Revopoint INSPIRE 2 offers one-click integration with Revo Design CAD software. The Shining 3D Einstar and Creality scanners export multiple formats for easy CAD import. For optimal scan-to-CAD workflow, look for scanners that include post-processing software or integrate directly with CAD applications.
After extensive testing of these 10 scanners, the Revopoint INSPIRE 2 stands out as the best 3D scanner for reverse engineering under $1000 in 2026. Its 0.03mm precision, dual scanning modes, and ability to scan challenging surfaces without spray make it the most versatile choice for engineering applications.
The Shining 3D Einstar remains the best value with proven performance and excellent tracking. If budget is your primary concern, the Creality Ferret Pro gets you started at $359. For those needing the highest accuracy, the Creality Raptor and Revopoint MINI 2 deliver 0.02mm metrology-grade precision.
Choose based on your specific needs: accuracy requirements, object sizes, workflow preferences, and budget. All of these scanners make reverse engineering more accessible than ever before. The gap between consumer and professional equipment continues to narrow, putting powerful tools in the hands of engineers, hobbyists, and makers everywhere.
