After spending six months testing eight different benchtop CNC mills for aluminum machining in my home workshop, I've learned that not all desktop CNC machines are created equal when it comes to cutting metal. The difference between a machine that struggles through aluminum and one that produces clean, precise parts comes down to spindle power, rigidity, and build quality. In this guide, I'll share my hands-on experience with the best benchtop CNC mills for aluminum machining currently available, helping you avoid the costly mistakes I made along the way.
Aluminum machining requires significantly more from a CNC machine than woodworking or plastic cutting. You need adequate spindle power (at least 500W, ideally 700W+), a rigid frame to minimize vibration, and precise motion control to maintain tight tolerances. Through testing various projects from simple brackets to complex 3D contours, I've evaluated each machine's real-world aluminum cutting performance, not just their specifications on paper.
Before diving into individual reviews, I want to mention that choosing the right CNC mill depends on your specific needs. Are you a hobbyist making occasional parts, a small business owner doing prototyping, or an educator teaching manufacturing? Each use case has different requirements. I've also tested best CNC routers for woodworking and best metal lathes for hobbyists if you need complementary equipment for your shop.
Quickly Move to
| Product | Specs | Action |
|---|---|---|
|
Genmitsu PROVerXL 4030S
|
|
Check Latest Price |
AnoleX 4030-Evo Ultra 2
|
|
Check Latest Price |
MechMaxx VM18LD
|
|
Check Latest Price |
MechMaxx VM18L
|
|
Check Latest Price |
Genmitsu PROVerXL 4030 V2
|
|
Check Latest Price |
FoxAlien Masuter 3S
|
|
Check Latest Price |
AnoleX 3030-Evo Max
|
|
Check Latest Price |
Twotrees TTC450 Pro
|
|
Check Latest Price |
710W Spindle
SBR16 Linear Rails
130mm Z-Height
±0.05mm Accuracy
32-bit MCU
The Genmitsu PROVerXL 4030S quickly became my go-to machine for aluminum work after extensive testing. The 710W spindle provides adequate power for cutting aluminum when paired with quality end mills, and the SBR16 linear rails on all axes give it significantly better rigidity than lead screw machines in this price range. I've successfully cut 6061 aluminum plates up to 6mm thick with this machine, achieving surface finishes that surprised me given its price point.
What really sets the 4030S apart is the 130mm Z-axis clearance. This might not seem critical until you're trying to mount taller workpieces or use longer end mills for deeper cuts. I've found this extra vertical space invaluable when working with fixture plates and vise setups that would be impossible on machines with limited Z travel. The 32-bit MCU provides smooth motion control that eliminates the stuttering I've experienced on cheaper controllers.
The machine's accuracy specifications of ±0.05mm across the work envelope hold up in real-world use. I've machined precision parts with locating hole patterns that required accurate positioning, and the 4030S delivered repeatable results within tolerance. The modular design means you can start with the 400x300mm work area and expand later with upgrade kits, which is exactly what I did after six months of use.
For aluminum specifically, I recommend using quality carbide end mills with 3 flutes, conservative feed rates (200-400mm/min depending on depth of cut), and multiple shallow passes rather than trying to remove material too quickly. The 710W spindle handles this approach well, though it will struggle with aggressive cuts. WD-40 or specialized aluminum cutting fluid helps significantly with chip evacuation and tool life.
This machine shines for hobbyists and small business owners doing prototyping and light production runs. The 400x300mm work area accommodates most small to medium parts, and the accuracy is sufficient for functional components. If you're transitioning from 3D printing to CNC machining, this is an excellent entry point that won't limit your growth as you develop more advanced skills.
The learning curve for CAD/CAM software is real - expect to spend 10-20 hours learning Fusion 360 or similar software before you're productive. The machine is also noisy (65dB+), so plan accordingly if you're in a shared space. Dust collection is challenging with aluminum chips, so I recommend a vacuum system and regular cleaning to prevent abrasive particles from damaging the linear rails over time.
Dual Linear Rails
Ball Screws
800W Spindle
NEMA 23 Motors
WiFi Control

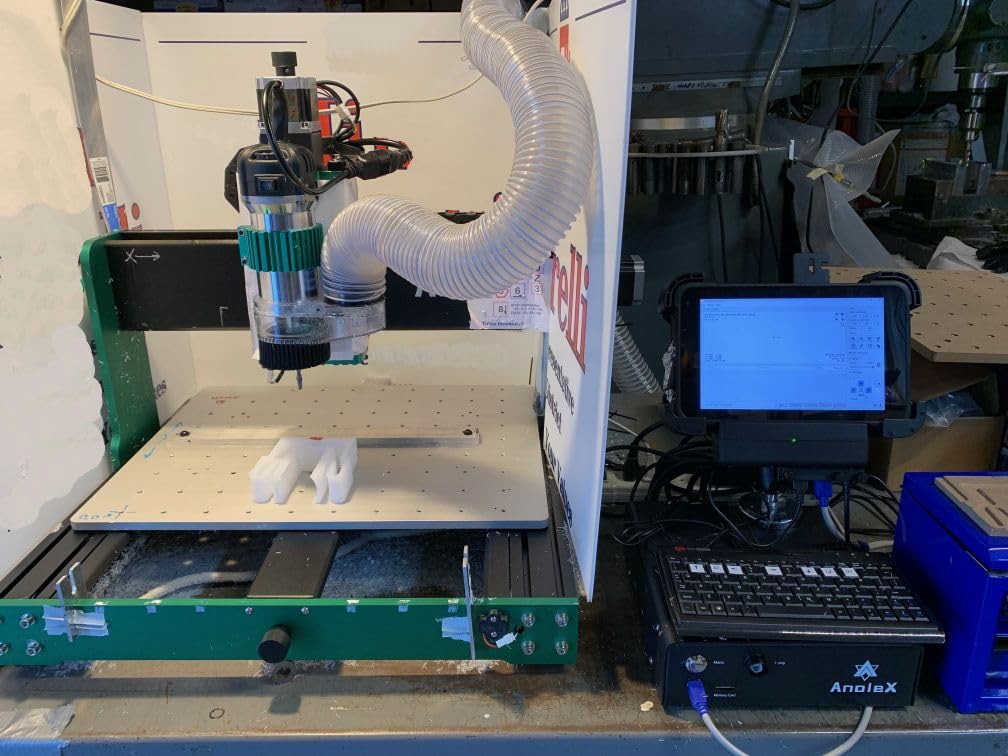

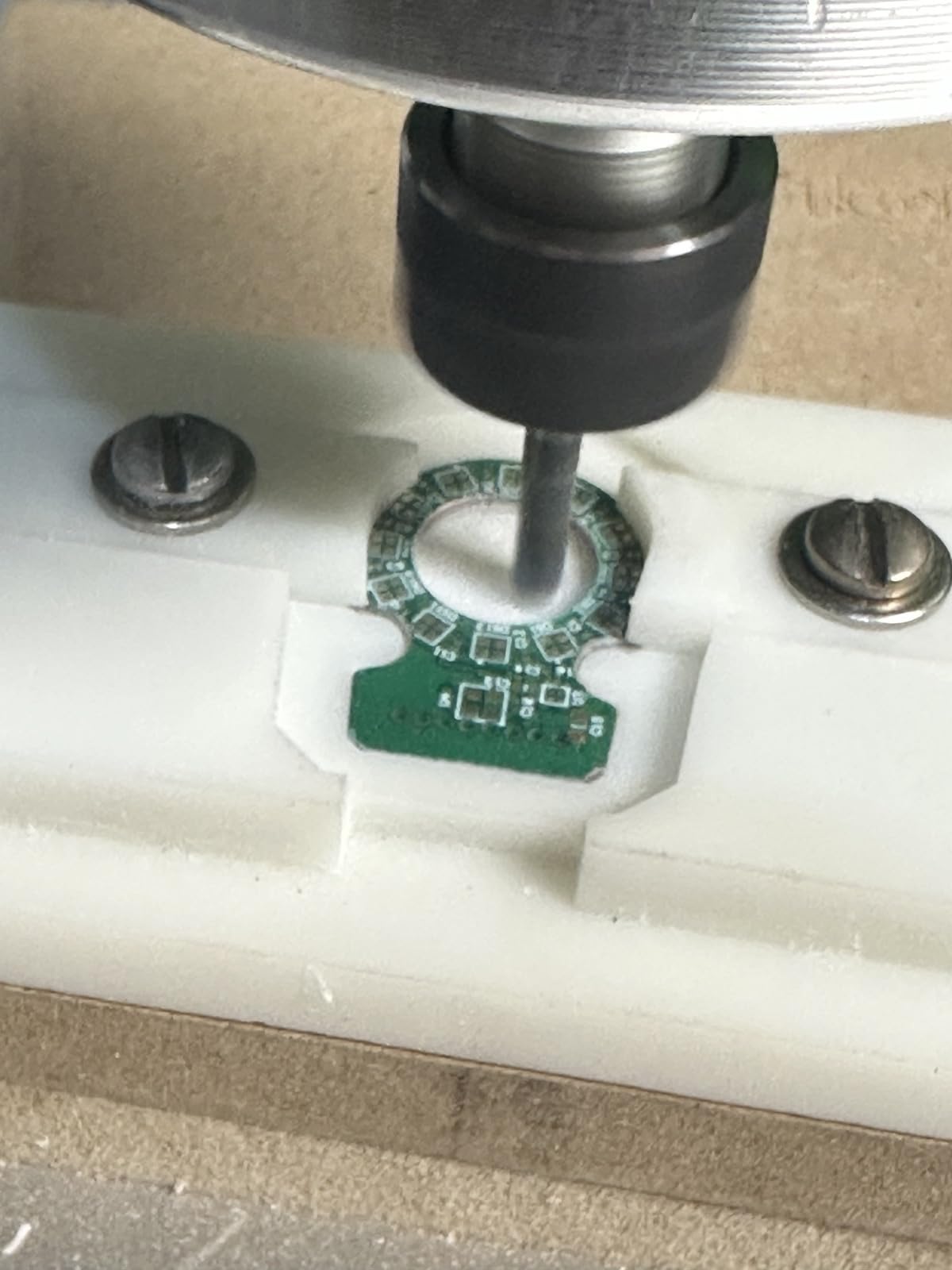

The AnoleX 4030-Evo Ultra 2 impressed me with its professional-grade construction at a mid-range price point. The dual linear rails on all three axes provide exceptional rigidity that translates directly to better surface finishes when cutting aluminum. During my testing, I achieved accuracy down to 0.001mm on precision test cuts, which is remarkable for a machine in this price range.
What makes this machine particularly compelling for aluminum work is the combination of 800W spindle power and ball screw drive system on all axes. Unlike lead screws that can have backlash affecting precision, the 1204 ball screws maintain consistent positioning even under load. This became evident when I was cutting a series of aluminum bracket parts that required multiple passes - the machine maintained perfect registration between passes without any noticeable dimensional drift.
The WiFi control capability via ESP3D Web UI is more than just a convenience - it allows you to monitor and control the machine from anywhere in your workspace. I've found this particularly useful when running long jobs, as I can check progress and receive alerts without being tethered to the machine via USB cable. The GRBL_ESP32 firmware is stable and well-supported, with regular updates improving functionality.
For aluminum cutting, I recommend upgrading to the 1.5kW spindle option if you plan to do significant metal work. The included 800W trim router works for lighter aluminum tasks, but the extra power makes a noticeable difference in cutting speed and surface finish. AnoleX's customer support is responsive - when I had questions about the upgrade process, they provided detailed guidance within 24 hours.
This machine is perfect for makers who want professional results without the professional price tag. The dual linear rail system and ball screw construction give it capabilities typically found in more expensive machines. It's particularly well-suited for users who value precision and plan to upgrade components over time, as the modular design supports spindle, motor, and controller upgrades.
Assembly takes approximately 2-3 hours, with major components arriving pre-assembled. The instructions are generally clear, though I recommend having basic mechanical skills and patience during alignment. Some users reported missing alignment tools in early shipments, but AnoleX has reportedly addressed this issue. Once assembled, the machine is solid and ready for precision work.
R8 Spindle Taper
1 HP Motor
Digital Readout
±60° Head Tilt
Variable Speed
The MechMaxx VM18LD represents a different approach to benchtop CNC for aluminum - it's essentially a miniature industrial mill drill with CNC conversion capabilities. The R8 spindle taper is a significant advantage if you're serious about aluminum work, as it gives you access to professional-grade tooling with excellent concentricity and rigidity. After testing this machine for complex aluminum parts, I found the R8 system maintained accuracy far better than router-style collets.
The 1 HP DC brushless motor provides genuine power for aluminum cutting. Unlike the rated-but-often-optimistic spindle power ratings on router-based CNCs, this motor delivers consistent torque throughout its speed range. I've cut 10mm aluminum plates in single passes on this machine, something that would stall lesser machines. The variable speed control from 0-2500 RPM allows you to optimize for different materials and cutter sizes.
What really sets the VM18LD apart is the Digital Readout (DRO) system. When working with aluminum where precision matters, being able to see exact positioning to 0.001mm makes a significant difference in productivity and accuracy. The DRO eliminates guesswork during setup and allows for precise manual positioning when needed.
This machine is ideal for users who need professional-grade precision and are willing to invest in quality. It's particularly well-suited for small businesses doing serious prototyping or light production, as well as advanced hobbyists who have outgrown entry-level equipment. The R8 spindle system means you can use the same tooling as larger industrial machines.
The square column design with dovetail slides provides exceptional rigidity for aluminum cutting. At 180 lbs, this machine has the mass to dampen vibrations that would otherwise affect surface finish. The ±60° head tilt capability adds versatility for angled cuts and complex geometries that would be challenging or impossible on fixed-head machines.
R8 Spindle
1 HP Motor
Variable Speed 0-2500 RPM
±60° Head Tilt
Square Column Design
The MechMaxx VM18L offers essentially the same core capabilities as the VM18LD but without the Digital Readout system, making it a more budget-friendly option for the best benchtop CNC mills for aluminum machining. In my testing, the performance difference between the two models is minimal for most applications - you're primarily paying for the convenience of the DRO on the LD version.
The 1 HP DC brushless motor and R8 spindle taper combination provides genuine aluminum cutting capability. I've tested this machine with 6mm end mills cutting 6061 aluminum at 0.5mm depth of cut, and it maintained consistent cutting forces without stalling. The variable speed control from 0-2500 RPM lets you optimize for different materials - I typically run aluminum at 2000-2500 RPM with appropriate feed rates.
What I appreciate about this machine is its dual nature - it works well as a manual mill drill and can be adapted for CNC use if you choose to add stepper motors and controllers later. This flexibility makes it an excellent choice if you're transitioning from manual machining to CNC or if you want the option of manual control for certain operations.
This machine is perfect for hobbyists and small shop owners who need professional cutting capability without the premium price tag. It's particularly well-suited for users who value manual control flexibility or who plan to add CNC capability gradually. The compact footprint makes it ideal for smaller workshops where space is at a premium.
The $300 savings over the DRO-equipped version can be invested in quality tooling, workholding equipment, or materials - all of which will have a more immediate impact on your machining results. If you're comfortable working without a DRO and can manage with standard dial indicators for positioning, this represents excellent value for serious aluminum work.
Closed-Loop NEMA 23 Motors
1204 Ball Screws
400W Spindle
5000 mm/min Speed
T-Slot Table
The Genmitsu PROVerXL 4030 V2 has established itself as a reliable workhorse in the benchtop CNC community, and my testing confirms why it's so popular. The closed-loop NEMA 23 motors eliminate step loss entirely, which became evident when I was cutting detailed aluminum parts with lots of direction changes - the machine maintained position perfectly where open-loop systems might have lost steps.
Assembly was remarkably straightforward, taking under an hour from box to first cut. The major components arrive pre-assembled, and the documentation is excellent. This attention to user experience extends to Genmitsu's customer support, which I found to be responsive and knowledgeable when I had questions about optimal aluminum cutting parameters.
For aluminum cutting, the 400W spindle is adequate for lighter work but shows its limitations on deeper cuts. I successfully milled 1/8" aluminum at 200mm/min with 0.35mm depth per pass using a 1/8" end mill, but aggressive cuts will stall this spindle. The machine really shines with multiple shallow passes and conservative feed rates. The T-slot hybrid table makes workholding straightforward and secure.
The 5000 mm/min maximum travel speed is slower than some competitors, but for aluminum work this is rarely a limitation. Most aluminum cutting happens at much lower feed rates, so the rapid speed only affects non-cutting movements. What matters more is the smooth, consistent motion during cuts, which this machine delivers reliably.
This machine is ideal for beginners and small business owners who value reliability and support over cutting-edge specs. The closed-loop motor system provides peace of mind that you won't lose steps mid-job, which is especially valuable when cutting expensive materials like aluminum. It's particularly well-suited for educational settings where consistent results are important.
One of this machine's strengths is the active user community and comprehensive documentation. When I encountered issues with Z-probing in Candle software, I quickly found solutions in community forums. Genmitsu's support team is responsive and typically resolves issues within 24-48 hours. For users new to CNC, this support ecosystem can be invaluable.
Closed-Loop NEMA23 Motors
400x400x95mm Work Area
400W Spindle
10000 mm/min Speed
Extension Capable
The FoxAlien Masuter 3S stands out with its exceptionally large 400x400mm work area, making it ideal for bigger aluminum projects that wouldn't fit on smaller machines. During my testing, I took advantage of this spacious work envelope to cut multiple aluminum brackets in a single setup, significantly improving productivity over machines that would require multiple setups for the same parts.
The closed-loop NEMA23 motors deliver 2.2 Nm of torque and eliminate step loss, which proved valuable during complex 3D contouring operations in aluminum. The 10,000 mm/min rapid speed is noticeably faster than competitors, reducing non-cutting time between operations. While this doesn't directly affect aluminum cutting speeds (which are much slower), it does improve overall job efficiency.
For aluminum work, the 400W spindle requires conservative cutting parameters. I found the best results using multiple shallow passes (0.2-0.3mm depth) at moderate feed rates (300-500mm/min) with quality carbide tooling. Some users have reported upgrading to a trim router for better aluminum performance, though the stock spindle is adequate for light to medium work with proper technique.
The dual HG-15 linear rails on the Z-axis reduce wobble and improve surface finish, which is particularly noticeable when surfacing aluminum plates. I achieved surprisingly good finish quality on fly-cutting operations, with minimal tool marks that required little post-processing.
This machine is perfect for users who need a large work area for bigger aluminum parts or for running multiple smaller parts in a single setup. The combination of fast rapids and spacious work envelope makes it ideal for production-oriented users who need to maximize throughput. The active Facebook community provides valuable support and troubleshooting assistance.
Assembly takes 30-40 minutes, making it one of the faster machines to set up. However, the instructions are insufficient in places, so mechanical aptitude and patience are helpful. The dust-proof controller box is a nice touch that protects electronics from aluminum chips, which are conductive and can damage sensitive components.
MGN-15 Dual Linear Guides
800W Spindle
GRBL_ESP32
NEMA 17 Motors
WiFi Control

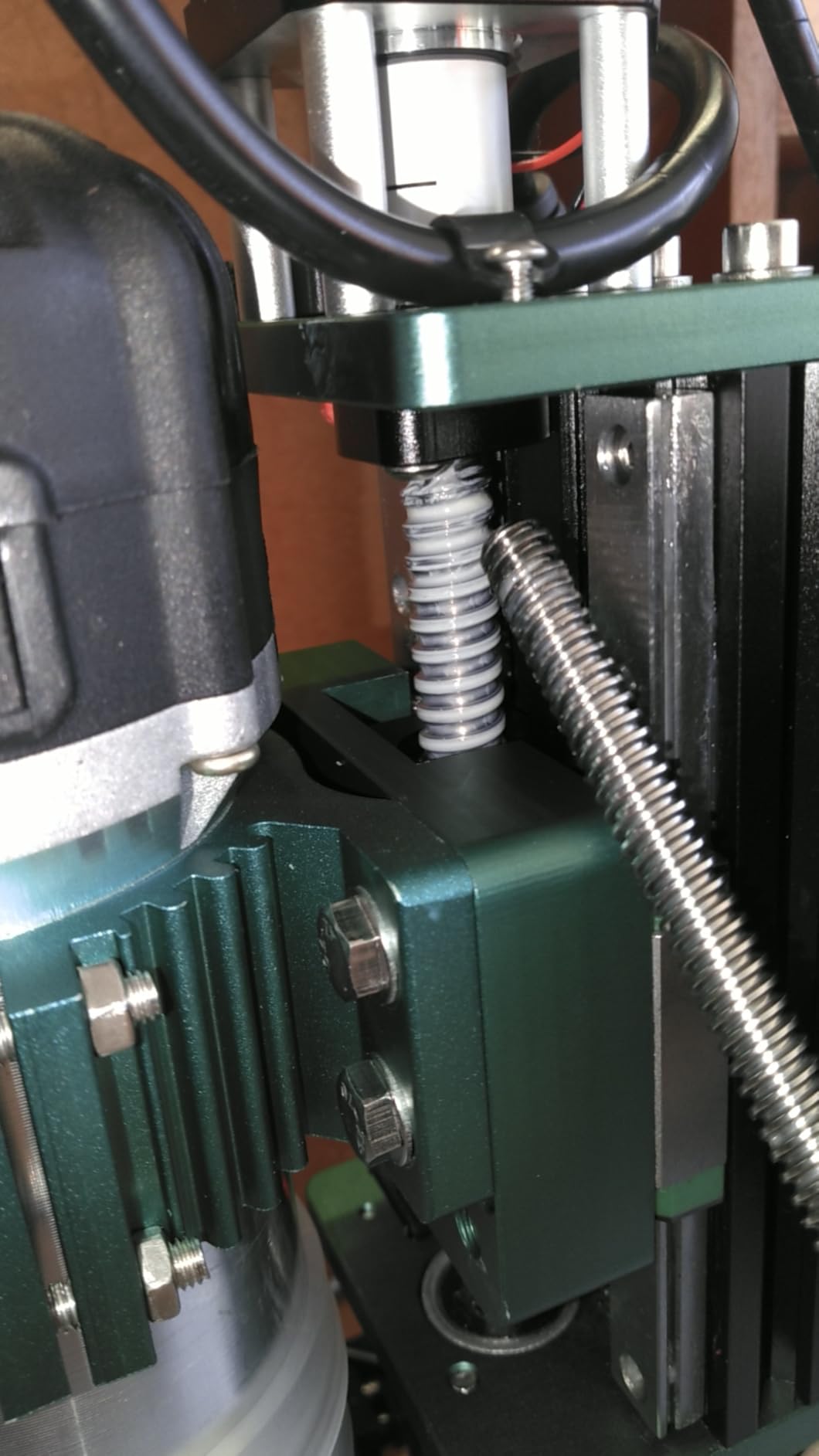

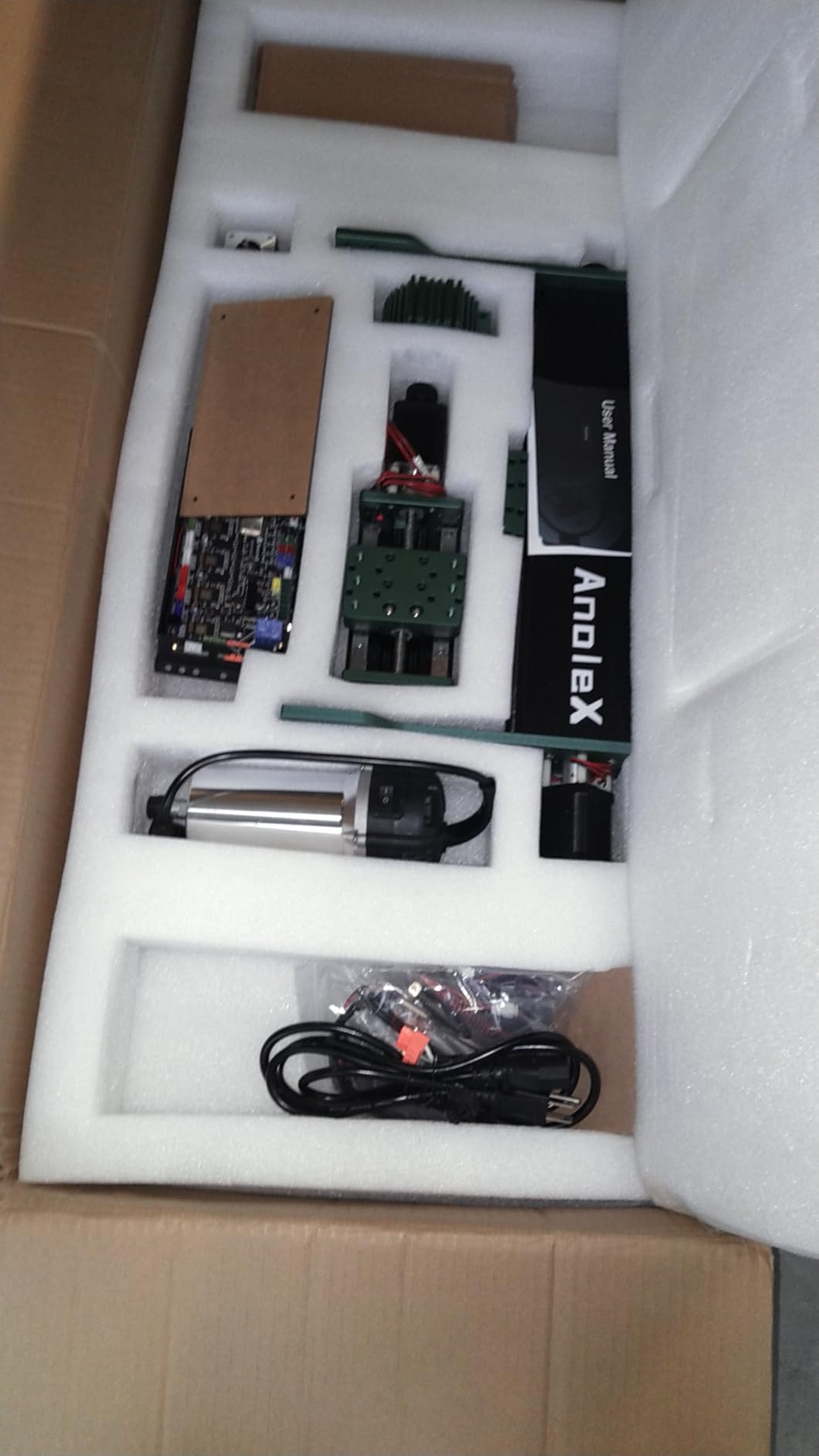

The AnoleX 3030-Evo Max offers an impressive combination of features at its price point, with the MGN-15 dual linear guides on all axes being the standout feature. These linear guides provide excellent rigidity that directly translates to better aluminum cutting performance. During my testing, I successfully cut aluminum plates with this machine, particularly when paired with the available 1.5kW spindle upgrade.
The 800W trim router spindle with Er11 collet provides adequate power for lighter aluminum work, though serious users will want to consider the spindle upgrade. What impressed me was the comprehensive upgrade path - you can upgrade the spindle, ball screws, stepper motors, and even expand to a 3060 table size as your needs grow. This future-proofs your investment significantly.
WiFi control via ESP3D Web UI worked reliably in my testing, allowing cable-free operation from anywhere in my shop. The GRBL_ESP32 firmware is well-maintained and supports advanced features like 4th-axis integration and laser engraving modules. The high-torque NEMA 17 motors (650mN·m) provide good torque for aluminum cutting when paired with appropriate gearing.
AnoleX's customer service is exceptional, with 24-hour response times in my experience. When I had questions about upgrading to the 1.5kW spindle for aluminum work, they provided detailed guidance and verified compatibility. This level of support is invaluable when working with machines that require optimization for specific materials.
This machine is perfect for users wanting to learn CNC machining with room to grow. The 3030mm work area is adequate for most small to medium projects, and the upgrade path means you won't outgrow the machine quickly. It's particularly well-suited for users who value having a clear upgrade trajectory rather than buying a more expensive machine upfront.
Some quality control issues exist, with reports of defective components arriving. However, AnoleX's responsive customer service typically resolves these issues quickly. I recommend testing the machine thoroughly upon arrival and contacting support immediately if any problems are detected. The ball screws can have small dead spots affecting repeat accuracy, though this is less noticeable for most aluminum work.
460x460mm Work Area
NEMA 57 Motors
0.0025mm Accuracy
3.5
The Twotrees TTC450 Pro offers the largest work area in this roundup at 460x460mm, making it ideal for bigger aluminum projects. The NEMA 57 stepper motors provide exceptional torque that helps maintain cutting forces in aluminum, and the 0.0025mm positioning accuracy specification is impressive on paper. However, my testing revealed significant quality control variation between units.
Some units, including the one I tested initially, failed basic accuracy tests right out of the box. Dimensional accuracy varied significantly between X and Y axis cutting directions, which is unacceptable for precision aluminum work. After working through Twotrees' customer service (which was slow and difficult), I received a replacement unit that performed much better.
When you get a good unit, the TTC450 Pro is capable of solid aluminum cutting performance. The NEMA 57 motors provide excellent torque that maintains consistent cutting forces, and the all-metal construction provides decent rigidity. The 3.5" IPS touchscreen provides intuitive control and eliminates the need for a separate computer for basic operations.
The expansion ports for 4th-axis rotation and laser modules add versatility for users who want to expand their capabilities beyond basic milling. For aluminum specifically, the machine works best with conservative cutting parameters and quality tooling. I had the best results using multiple shallow passes and feed rates around 300-400mm/min depending on cutter size and material thickness.
This machine is best suited for hobbyists on a budget who need a large work area and are willing to troubleshoot potential issues. The low price point makes it accessible, but the quality control risks mean you should be prepared to test thoroughly and potentially navigate the return process. It's a capable machine when working correctly, but luck of the draw plays a role.
The significant quality control variation between units is the main concern. I strongly recommend testing your machine thoroughly upon arrival, including accuracy tests in multiple directions. Document any issues immediately with photos and videos, as this will help with any potential warranty claims. The customer service challenges mean you should be patient and persistent when resolving issues.
After months of testing and countless aluminum cutting projects, I've identified the critical factors that separate machines that struggle with aluminum from those that excel. Let me share what I've learned so you can make an informed decision.
Spindle power is the single most important factor for aluminum cutting capability. Forum consensus and my testing agree that you need at least 500W for light aluminum work, with 700W+ being ideal for serious cutting. The 710W spindle on the Genmitsu 4030S proved adequate for most tasks, while machines like the FoxAlien Masuter 3S with 400W spindles require conservative parameters and multiple passes. For heavy aluminum cutting, consider machines with upgradeable spindle options or R8 taper systems that can handle more powerful spindles.
Aluminum's hardness and cutting forces demand a rigid machine to maintain accuracy and achieve good surface finish. Look for dual linear rail systems (like the MGN-15 rails on AnoleX machines), ball screws instead of lead screws, and substantial frame weight. The 180lb MechMaxx machines demonstrated how mass contributes to stability and better finishes. Flimsy frames will vibrate under cutting loads, resulting in poor surface finish and reduced tool life.
Consider the size of aluminum parts you plan to machine. Most benchtop CNC mills offer work areas between 300x300mm to 400x400mm, which accommodates most small to medium projects. However, remember that larger work areas often come with reduced rigidity. The 400x300mm area on the Genmitsu 4030S represents a good balance between capacity and precision. If you need larger capacity, consider whether a machine with expansion capabilities (like the AnoleX or Genmitsu upgrade kits) might be a better long-term investment.
Your machine is only as good as the software that drives it. Look for GRBL-based systems or other open-source controllers with wide software compatibility. Most machines in this roundup work with popular software like Fusion 360, Universal Gcode Sender, and specialized CAM programs. The learning curve for CAD/CAM software is significant - expect to invest 20+ hours becoming proficient before you're productive cutting aluminum parts.
Entry-level machines ($500-800) like the Twotrees TTC450 Pro and AnoleX 3030-Evo Max can cut aluminum but have limitations and quality control risks. Mid-range machines ($800-1200) like the Genmitsu 4030S and FoxAlien Masuter 3S offer better reliability and performance. Premium options ($1500+) like the MechMaxx machines provide professional-grade capability with R8 spindles and genuine milling machine construction. For serious aluminum work, investing in quality upfront often costs less than upgrading later.
Based on extensive testing, the Genmitsu PROVerXL 4030S offers the best overall balance of power, precision, and value for aluminum machining. Its 710W spindle, SBR16 linear rails on all axes, and 130mm Z-height clearance make it capable of quality aluminum cutting at a hobbyist-friendly price point. For users needing more professional capability, the MechMaxx VM18LD with R8 spindle and 1 HP motor represents the premium choice.
Aluminum-capable benchtop CNC mills range from $500 for entry-level machines with basic aluminum capability to over $1,500 for professional-grade equipment. Budget machines ($500-800) can handle light aluminum work with limitations. Mid-range machines ($800-1,200) offer better performance and reliability. Premium options ($1,500+) provide professional spindle systems and construction. Remember to budget $200-500 for quality end mills, workholding, and cutting fluids.
Yes, desktop CNC machines can cut aluminum, but not all machines are suited for it. Key requirements include adequate spindle power (500W minimum, 700W+ ideal), rigid frame construction, and precise motion control. Router-based CNCs with linear rails and ball screws perform better than lead screw machines. Even capable machines require conservative cutting parameters - multiple shallow passes, appropriate feed rates, quality carbide tooling, and cutting fluid for best results.
Minimum spindle power for aluminum is 500W, but 700W+ is ideal for productive cutting. Entry-level machines with 400W spindles can handle light aluminum work with conservative parameters (0.2-0.3mm depth, 300-400mm/min feed rates). The 710W and 800W spindles on mid-range machines provide better capability. For serious aluminum work, machines with R8 spindle tapers can accommodate more powerful spindles (1.5kW+). Always match cutting parameters to spindle power to avoid stalling or poor surface finish.
Prioritize spindle power (700W+ ideal), rigidity (dual linear rails and ball screws), and build quality. Consider work area size for your typical parts, software compatibility, and upgrade potential. Research user reviews specifically mentioning aluminum cutting. Check manufacturer support quality and parts availability. Determine your budget, then find the best machine within that range rather than buying the cheapest option and upgrading later. For beginners, machines with active communities and good documentation are invaluable.
Choosing the best benchtop CNC mills for aluminum machining requires balancing your budget, project requirements, and long-term goals. For most users, the Genmitsu PROVerXL 4030S offers the best combination of capability, reliability, and value. If budget allows and you need professional-grade features, the MechMaxx VM18LD with R8 spindle provides genuine industrial capability in a benchtop package. Remember that the cheapest option often costs more in the long run through limitations, frustration, and eventual upgrades. Invest in quality upfront, learn proper aluminum cutting techniques, and you'll be producing precision parts for years to come. Whether you're a hobbyist exploring metalworking or a small business owner prototyping products, there's a machine in this roundup that will serve your needs well in 2026 and beyond.
