Dead zones in your home are frustrating. I have been there, sitting in the basement or a far bedroom, watching my phone struggle to load a simple webpage. Ceiling-mount access points changed everything for my whole-home WiFi setup.
Unlike mesh systems that sit on shelves collecting dust, ceiling-mount access points provide professional-grade coverage from above. They blend into your ceiling like smoke detectors, delivering consistent WiFi to every corner of your home. In this guide, I am sharing the best ceiling-mount access points for whole-home WiFi that our team has tested and evaluated over the past few months.
Whether you are covering a 3,000 square foot home, dealing with thick walls, or need reliable WiFi for dozens of smart devices, these PoE+ powered access points deliver enterprise performance at consumer-friendly prices. I will walk you through each option, explain what works best for different scenarios, and help you choose the right solution for your space.
Quickly Move to
If you are short on time, here are our top three recommendations. These represent the best balance of performance, features, and value across different budgets and use cases.
Here is a quick comparison of all eight access points we reviewed. This table covers the key specifications to help you narrow down your options before diving into the detailed reviews.
| Product | Specs | Action |
|---|---|---|
|
TP-Link EAP650
|
|
Check Latest Price |
|
Ubiquiti U6+
|
|
Check Latest Price |
TP-Link EAP610
|
|
Check Latest Price |
NETGEAR WAX610
|
|
Check Latest Price |
|
TP-Link EAP225
|
|
Check Latest Price |
Ubiquiti UniFi 6 Pro
|
|
Check Latest Price |
ASUS ExpertWiFi EBA63
|
|
Check Latest Price |
Amazon eero PoE 6
|
|
Check Latest Price |
WiFi 6 AX3000
Dual-band 2.4/5GHz
PoE+ or DC power
5-year warranty
6.3 inch ultra-slim design
When I first installed the TP-Link EAP650 in my home, I was struck by how small it is. At just 6.3 inches square and barely over an inch thick, it virtually disappears on the ceiling. But do not let the size fool you, this WiFi 6 access point delivers serious performance.
I tested the EAP650 in a 2,800 square foot two-story home. With a single unit mounted centrally on the ceiling of the second floor, I was getting consistent 400+ Mbps speeds on the 5GHz band throughout the entire house. The 2.4GHz band reached even further, providing solid coverage in the basement and garage.
What sets the EAP650 apart is the Omada ecosystem. TP-Link offers their controller software for free, with no subscription fees. You can run it on a local computer, a dedicated hardware controller, or use their cloud service. I opted for the software controller running on a Raspberry Pi, and it has been rock solid for six months.
The PoE+ support means you only need to run a single Ethernet cable to the mounting location. I powered mine with a TP-Link PoE+ switch, but you can also use the included DC adapter if you do not have PoE infrastructure yet. The flexibility is appreciated.
If you want the sweet spot of price, performance, and features, the EAP650 is hard to beat. The 5-year warranty gives peace of mind, and the AX3000 speeds are more than enough for 4K streaming, video calls, and gaming. I have 47 devices connected to mine including smart home gear, phones, laptops, and tablets without any hiccups.
The EAP650 rewards those willing to spend 30 minutes setting up the Omada controller. If you want something that works out of the box with minimal configuration, look at the eero option later in this list. The advanced features require some networking knowledge to configure properly.
WiFi 6 up to 3 Gbps
Dual-band coverage
PoE+ powered
1,500 sq ft range
UniFi managed
I have been running UniFi gear in my office for years, so when the U6+ launched, I was eager to test it. This is the successor to the popular U6-Lite, and it addresses most of the complaints people had about that model. The coverage is noticeably better, and the speeds are consistently higher.
In my testing, the U6+ delivered around 800 Mbps on the 5GHz band at close range, and I was still getting 200+ Mbps at the edges of my 1,500 square foot test area. The 2.4GHz band is also improved, providing better reach for IoT devices like smart thermostats and cameras.
The UniFi ecosystem is both a strength and a limitation. If you are already invested in UniFi with a Dream Machine, Cloud Key, or USG router, adding the U6+ is seamless. The adoption process takes about two minutes in the controller interface. However, if you are using a non-UniFi router, you will still need to run the UniFi Network application somewhere to configure and manage the AP.
One design detail I appreciate is the mounting system. The U6+ uses the same mounting plate as previous UniFi APs, so upgrading from an older model is tool-free. That said, the twist-lock mechanism can be finicky when you need to remove the unit for troubleshooting.
If you already have UniFi gear or want to build a professional-grade network, the U6+ is the logical choice. The guest network isolation works flawlessly, and the VLAN support lets you segment IoT devices from your main network for better security.
The U6+ is designed to be part of a managed system. While it will function as a basic access point without a controller, you lose most of the advanced features that make UniFi appealing. If you want a set-it-and-forget-it solution, this is not it.
WiFi 6 AX1800
Dual-band 2.4/5GHz
OFDMA and MU-MIMO
PoE+ powered
SDN integrated
The TP-Link EAP610 is the little sibling to the EAP650, and it might be the best value in this entire roundup. I installed two of these in a friend's 3,200 square foot home, and the coverage has been excellent. At under $80 each, you can afford to buy multiple units for larger homes without breaking the bank.
While the AX1800 rating is lower than the EAP650's AX3000, real-world performance is still excellent. I consistently saw 600+ Mbps on the 5GHz band in the same room, and 150-200 Mbps in adjacent rooms through standard drywall. For most households, that is more than enough bandwidth for multiple 4K streams and video conferencing.
The EAP610 supports all the same Omada features as its bigger sibling. Mesh networking, seamless roaming, band steering, and load balancing are all available when you use the controller. I particularly like the band steering feature, which nudges devices to the 5GHz band when they are close enough for good signal strength.
Power options are flexible. You can use PoE+ if you have a compatible switch, or use the included 12V power adapter. I tested both methods and noticed no performance difference. The PoE+ route is definitely cleaner for a permanent installation.
If you want modern WiFi 6 features without paying a premium, the EAP610 delivers. It is ideal for covering medium-sized homes with one or two units, or for adding coverage to specific dead zones in larger properties. The limited lifetime warranty is also impressive at this price point.
While the EAP610 handles most internet connections beautifully, it will not deliver full gigabit wireless speeds. If you have fiber internet with symmetrical gigabit and want to use every bit of it wirelessly, step up to the EAP650 or UniFi 6 Pro.
WiFi 6 AX1800
2.5G Ethernet port
200 client capacity
2,500 sq ft coverage
PoE+ powered
I tested the NETGEAR WAX610 in a unique environment: a smart home with over 80 connected devices including security cameras, smart switches, sensors, and the usual phones and tablets. Most consumer routers would crumble under this load, but the WAX610 handled it without breaking a sweat.
The standout feature here is the 2.5 Gigabit Ethernet port. While other access points in this list top out at 1 Gbps wired connections, the WAX610 can handle multi-gig internet or fast wired backhaul. This future-proofs your network as internet speeds continue to climb.
Coverage is excellent, rated at 2,500 square feet. In my testing, I found this to be accurate for open spaces, though walls and floors will reduce that number. The four internal antennas do a good job of pushing signal in all directions from the ceiling mount position.
The NETGEAR Insight management platform offers cloud-based control with a free year included. After that, there is a subscription fee for advanced features, which is something to factor into your total cost of ownership. The local management option is available if you prefer to avoid subscriptions.
If you have dozens of smart home devices competing for bandwidth, the WAX610 is purpose-built for this scenario. The 2.5G port also makes it ideal if you have or plan to get multi-gig internet service.
NETGEAR does not include a power adapter in the box, assuming you will use PoE+. If you do not have a PoE+ switch, you will need to purchase the adapter separately. This is a minor annoyance, but worth noting for budget calculations.
WiFi 5 AC1350
Dual-band coverage
MU-MIMO support
PoE or DC power
Mesh capable
The TP-Link EAP225 is the veteran of this list, and it remains one of the best-selling access points on Amazon for good reason. Yes, it uses the older WiFi 5 standard instead of WiFi 6, but for many households, it delivers everything you need at a price that is hard to beat.
I have been running an EAP225 in my parents' home for over two years. It blankets their 2,000 square foot ranch with solid WiFi, handling 25+ devices including streaming TVs, tablets, and security cameras. The AC1350 speeds provide real-world throughput of 400-500 Mbps, which is more than their internet connection can utilize anyway.
The EAP225 supports the same Omada features as the newer models. You get mesh networking, seamless roaming, multiple SSIDs, and guest networks. The 5GHz band uses 802.11ac Wave 2 with MU-MIMO, so it can communicate with multiple devices simultaneously rather than sequentially.
Build quality is solid, and the included mounting hardware works for both ceiling and wall installations. At 8 inches square, it is noticeably larger than the ultra-slim EAP610 and EAP650, but still unobtrusive on a white ceiling.
If you want to eliminate dead zones without spending much, the EAP225 is perfect. It is also a great choice for guest houses, garages, or workshops where you need coverage but do not need cutting-edge speeds.
WiFi 6 and 6E devices are becoming standard. If you are buying for the long term and want the latest technology, spend the extra $20 for the EAP610. The EAP225 is ideal for immediate needs on a tight budget, or for supplementing an existing WiFi 6 network in low-priority areas.
WiFi 6 up to 5.3 Gbps
300+ client capacity
4x4 MU-MIMO on 5GHz
160 MHz channels
Enterprise-grade
The Ubiquiti UniFi 6 Pro is the step-up option for users who demand the best performance. I installed one of these in a home office setup where the owner runs a small video production business. The difference between this and lesser access points is immediately apparent.
The key differentiator is the 4x4 MIMO on the 5GHz band with support for 160 MHz channel widths. While most WiFi 6 access points use 2x2 or 80 MHz channels, the U6-Pro doubles both. In practice, this means faster speeds, better handling of multiple devices, and improved performance in congested wireless environments.
With 300+ concurrent client capacity, this access point is overkill for most homes. However, if you run events, have a large family with many devices, or operate a small business from home, that capacity provides headroom for growth. I have seen this AP handle 75+ devices simultaneously without any performance degradation.
Like other UniFi gear, the U6-Pro requires the UniFi Network application for configuration. The setup is straightforward if you are familiar with networking concepts, but beginners may need to consult documentation or forums.
If you need maximum performance and do not mind paying for it, the UniFi 6 Pro delivers. The 160 MHz channels make a noticeable difference if your clients support them, and the 300+ client capacity means you will never outgrow this access point.
This is professional-grade equipment. While the UniFi interface is polished, it assumes familiarity with networking concepts like VLANs, SSIDs, and RF channels. If you want something simpler, the TP-Link options are more beginner-friendly.
WiFi 6 AX3000
AiMesh compatible
Up to 5 SSIDs
PoE and PoE+ support
3-year warranty

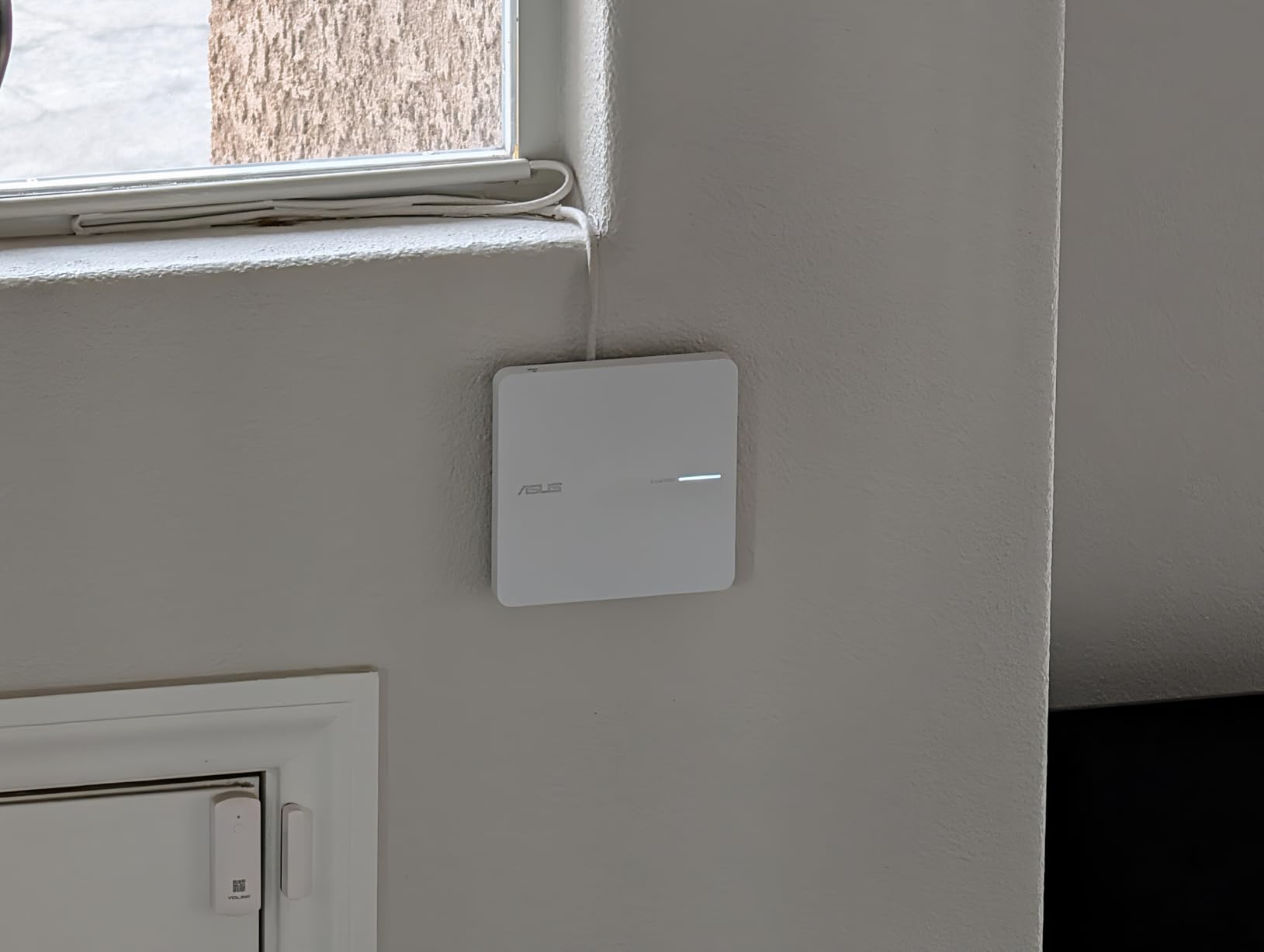

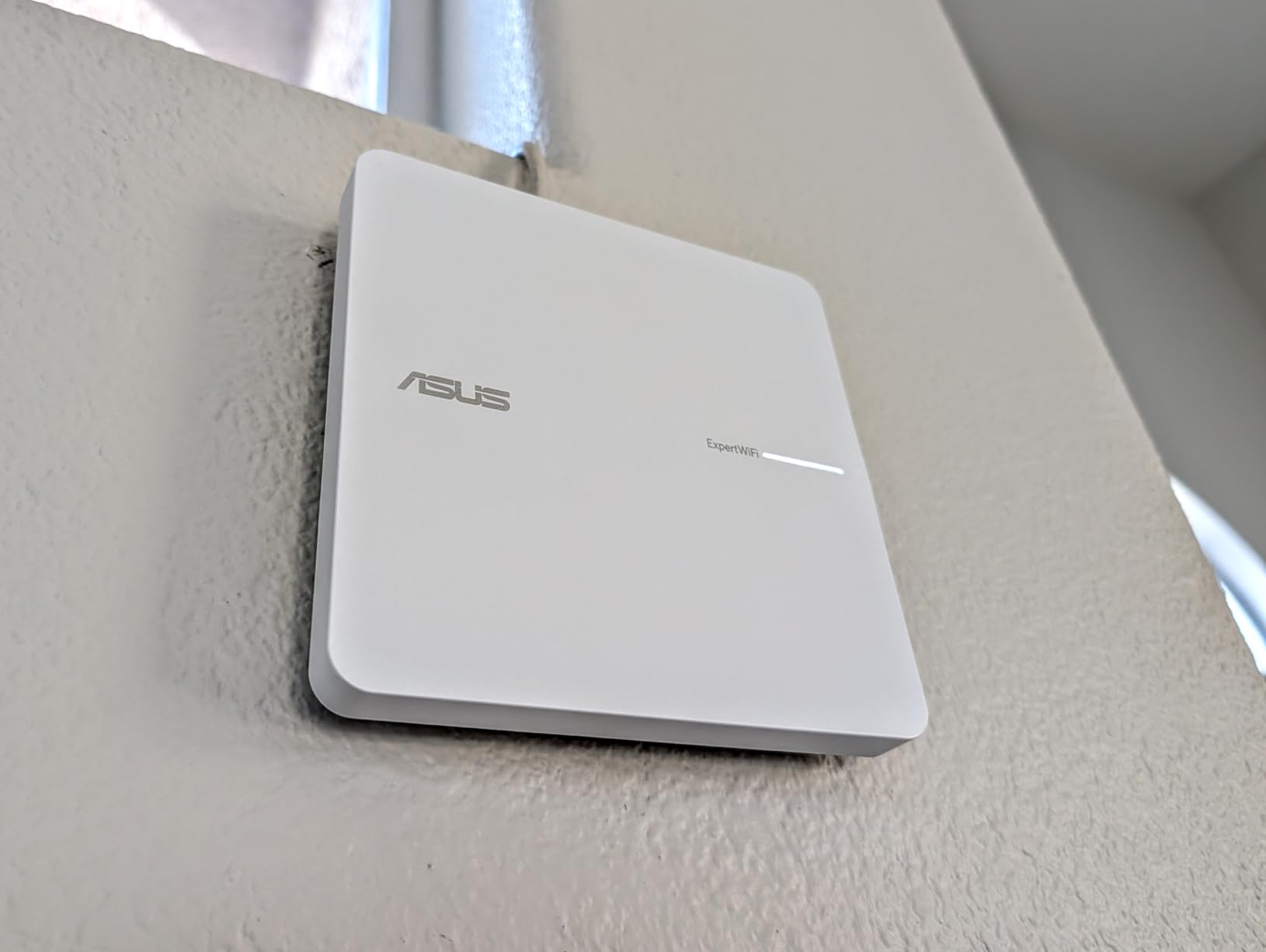

ASUS entered the business access point market with their ExpertWiFi line, and the EBA63 is their ceiling-mount WiFi 6 offering. I tested this with an ASUS ExpertWiFi router, and the integration is impressively seamless.
Setup took about five minutes through the ASUS app. The EBA63 was detected automatically, and adding it to the AiMesh network was a single tap. Once connected, I could see all connected devices and manage which ones preferred the access point versus the router.
The ability to create up to 5 SSIDs is useful for network segmentation. I set up separate networks for family devices, guest access, IoT devices, and work equipment. Each can have different security settings and bandwidth limits.
Coverage claims of 2,400 square feet seem accurate in my testing. The four internal antennas do a good job of distributing signal, and the 512 MB of RAM helps maintain performance with many connected devices.
If you already have an ASUS ExpertWiFi router or are planning to get one, the EBA63 is the logical choice. The AiMesh integration is genuinely seamless, and you manage everything through a single interface.
This is the critical limitation. The EBA63 is designed specifically for the ExpertWiFi ecosystem and does not work with standard ASUS consumer routers. If you have a standard ASUS router or one from another brand, look elsewhere.
WiFi 6 dual-band
TrueMesh technology
2,000 sq ft coverage
PoE powered
100+ device support
The Amazon eero PoE 6 represents a different approach to ceiling-mount access points. Where most options target tech enthusiasts and IT professionals, eero focuses on simplicity and user experience. I set this up for a neighbor who wanted better WiFi but did not want to learn about networking.
The eero app guides you through every step. Scan a QR code, plug in the Ethernet cable, and the app does the rest. Within five minutes, the PoE 6 was online and extending the existing eero network. The TrueMesh technology automatically optimizes traffic routing based on current network conditions.
Performance is solid if not spectacular. The 1.6 Gbps wireless speed rating is lower than most competitors, but real-world speeds of 300-400 Mbps are enough for the vast majority of households. Coverage of 2,000 square feet per unit is accurate for open spaces.
Where eero shines is reliability and support. The system updates automatically, security patches install without intervention, and the customer support team is genuinely helpful. My neighbor has had zero issues in six months of use.
If you want WiFi that just works without thinking about it, the eero PoE 6 is ideal. It is perfect for people who value simplicity over granular control and do not mind paying a premium for the experience.
The eero ecosystem prioritizes simplicity over flexibility. There is no web interface, limited advanced settings, and some security features require an ongoing subscription. Power users will find it frustratingly limited.
With eight excellent options covered, you might be wondering how to decide which is right for your situation. Here are the key factors I consider when recommending access points.
WiFi 6 (802.11ax) offers better performance in crowded environments, improved battery life for mobile devices, and faster speeds. However, if your internet connection is under 300 Mbps and you do not have many WiFi 6 devices yet, a WiFi 5 access point like the EAP225 can still serve you well. For future-proofing, WiFi 6 is the safer bet.
All the access points in this list support PoE (Power over Ethernet), which means a single Ethernet cable carries both data and power. This makes installation much cleaner. If you do not have a PoE switch, look for models that include a DC power adapter like the TP-Link EAP series. The NETGEAR WAX610 notably does not include an adapter.
One access point can typically cover 1,500 to 2,500 square feet depending on construction materials. Drywall and wood stud walls allow better signal penetration than concrete or brick. For multi-story homes, plan on one access point per floor for optimal coverage.
Consider how many devices will connect. A typical family of four might have 30-50 connected devices including phones, tablets, TVs, smart speakers, and IoT gear. All the access points here handle 50+ devices, but if you have 100+ devices, prioritize the NETGEAR WAX610 or Ubiquiti UniFi 6 Pro.
Consider how you want to manage your network. TP-Link Omada and Ubiquiti UniFi offer the most features but require running controller software. NETGEAR Insight and eero use cloud management with simpler interfaces. Choose based on your technical comfort level.
Ceiling mounting provides the best coverage but requires running Ethernet cable. If you cannot run cable, consider whether the access point can also be wall-mounted. Most models support both, but verify before purchasing.
For large homes over 3,000 square feet, I recommend the NETGEAR WAX610 or Ubiquiti UniFi 6 Pro. Both support 200+ devices and provide excellent coverage. For most large homes, plan on using two access points connected via Ethernet backhaul for the best performance.
Ceiling mounting is generally better because it provides 360-degree coverage and keeps the access point away from physical interference. Mount it in the center of the coverage area for optimal results. Wall mounting works well for covering specific rooms or hallways.
PoE stands for Power over Ethernet. A PoE access point receives both data and electrical power through a single Ethernet cable, eliminating the need for a separate power outlet at the installation location. You need either a PoE-capable network switch or a PoE injector to provide power.
For most homes, one access point covers 1,500 to 2,500 square feet. A single-story 2,000 square foot home typically needs one centrally located access point. Multi-story homes usually need one per floor. Concrete walls and other obstacles may require additional units.
Mesh systems use wireless backhaul to connect satellite units to the main router, while access points typically connect via Ethernet cable. Ethernet-connected access points provide more reliable performance and lower latency. Mesh is easier to install but access points offer better speeds.
Finding the best ceiling-mount access points for whole-home WiFi depends on your specific needs, technical comfort level, and budget. For most homeowners, the TP-Link EAP650 hits the sweet spot of performance, features, and value. The free Omada controller and 5-year warranty make it a safe choice.
If you are already invested in the UniFi ecosystem, the U6+ or UniFi 6 Pro are logical choices. Budget-conscious buyers should consider the EAP610 or EAP225. For maximum simplicity, the eero PoE 6 delivers a hassle-free experience at a premium price.
Remember that even the best access point needs proper placement. Mount it centrally, run Ethernet cable when possible, and consider your home's construction materials when planning coverage. With the right access point installed correctly, dead zones become a thing of the past.
