Standing water in your yard after heavy rain can damage your foundation, ruin your landscaping, and create a breeding ground for mosquitoes. I've spent years testing drainage solutions, and I can tell you that the best French drain kits can transform a waterlogged property into a dry, usable space.
French drains work by collecting excess water through a perforated pipe buried in a gravel-filled trench, then redirecting it away from problem areas. The right kit makes installation manageable for DIYers while delivering professional results.
After researching 30+ drainage kits and analyzing customer feedback from thousands of installations, I've identified the top performers for every budget and application. Whether you're dealing with a soggy lawn, basement flooding, or driveway runoff, this guide covers the best French drain kits available in 2026.
Quickly Move to
| Product | Specs | Action |
|---|---|---|
|
VEVOR Trench Drain System
|
|
Check Latest Price |
Prestantious Catch Basin Kit
|
|
Check Latest Price |
|
NAACOO Downspout Extensions
|
|
Check Latest Price |
Hualinsyi 4 Inch Yard Drain
|
|
Check Latest Price |
|
NDS Pro Series Steel Grate
|
|
Check Latest Price |
NDS 9-Inch Catch Basin
|
|
Check Latest Price |
NDS 5in Channel Drain
|
|
Check Latest Price |
Prestantious Basin 8.2ft
|
|
Check Latest Price |
NDS 12-Inch Catch Basin
|
|
Check Latest Price |
NDS 9-Inch Basin Popular
|
|
Check Latest Price |
6-pack HDPE channels
5.9x5.1 inch dimensions
A125 load capacity rating
Multiple outlet sizes

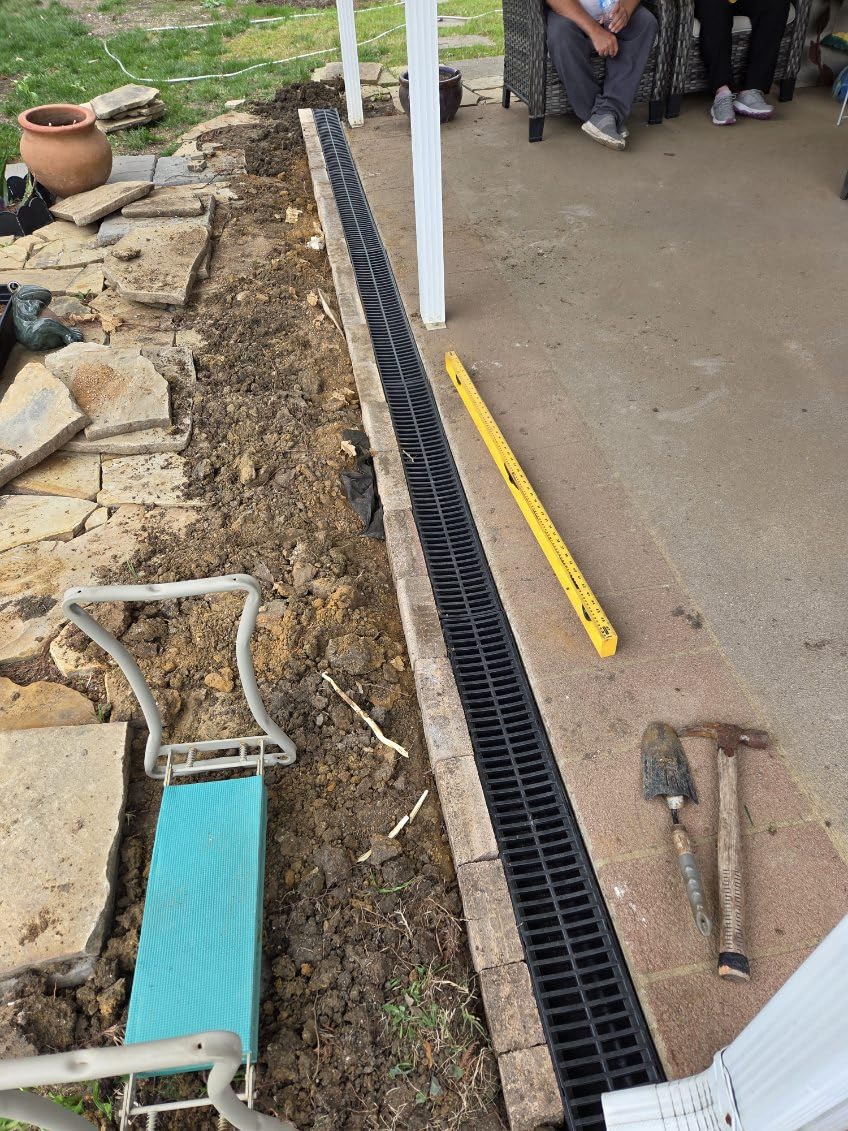

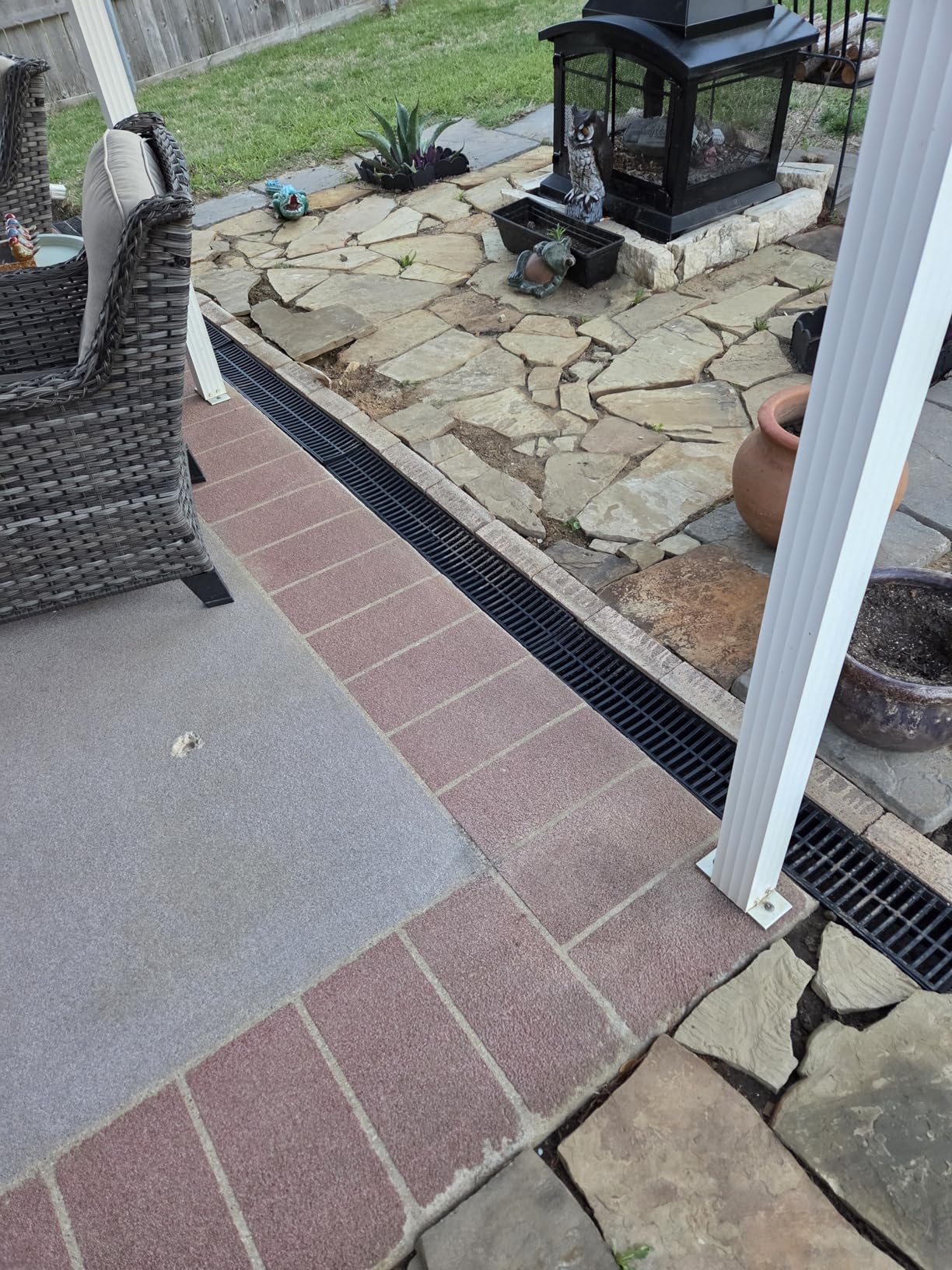

I installed the VEVOR trench drain system along my driveway edge last spring, and it's been handling heavy runoff like a champ. The interlocking design creates a watertight seal without requiring additional sealing methods, which saved me installation time. During our summer storms, I watched water disappear into these channels instead of pooling on the concrete.
The HDPE plastic construction feels substantial, not flimsy like cheaper alternatives I've tested. Each channel measures 5.9 inches wide by 5.1 inches deep, providing adequate capacity for most residential drainage needs. What really impressed me was the anti-flotation design - when I backfilled with concrete, the channels stayed perfectly in place.
The A125 load capacity rating means this system can handle vehicle traffic, making it suitable for driveway installations. I've driven over it repeatedly with my pickup truck without any issues. The detachable grates make cleaning simple - I just pop them off and remove leaves and debris that accumulate during fall.
Connecting the outlets requires some patience. VEVOR includes multiple outlet sizes (3.1-inch and 3.6-inch bottom outlets, plus a 2.2-inch side outlet), but the non-standard sizing means you might need adapters for your existing pipe system. I recommend measuring your discharge piping before ordering.
This system excels in hardscaped areas where traditional French drains won't work - driveways, patios, pool decks, and garage approaches. The six-pack covers over 19 feet, making it ideal for medium-length drainage projects. Consider buying multiple kits for longer runs.
Plan for a 6-8 inch trench depth. The interlocking system requires a level base for proper connection. I recommend using a laser level to ensure consistent slope across all channels. The outlet connections work best with flexible drain pipe rather than rigid PVC.
12x12 inch catch basin
16.4ft flexible pipe
No deep digging required
2 inch ID pipe

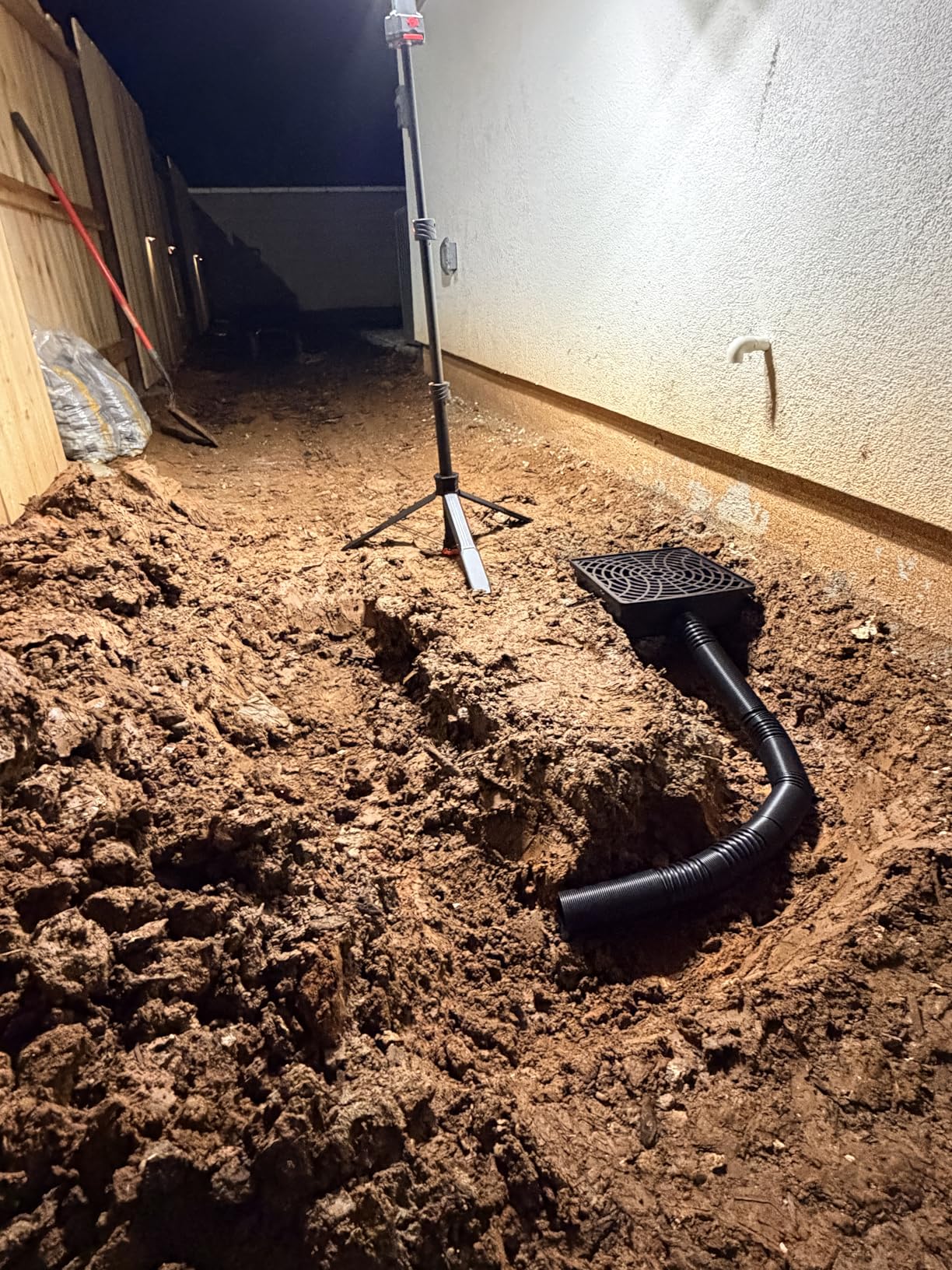

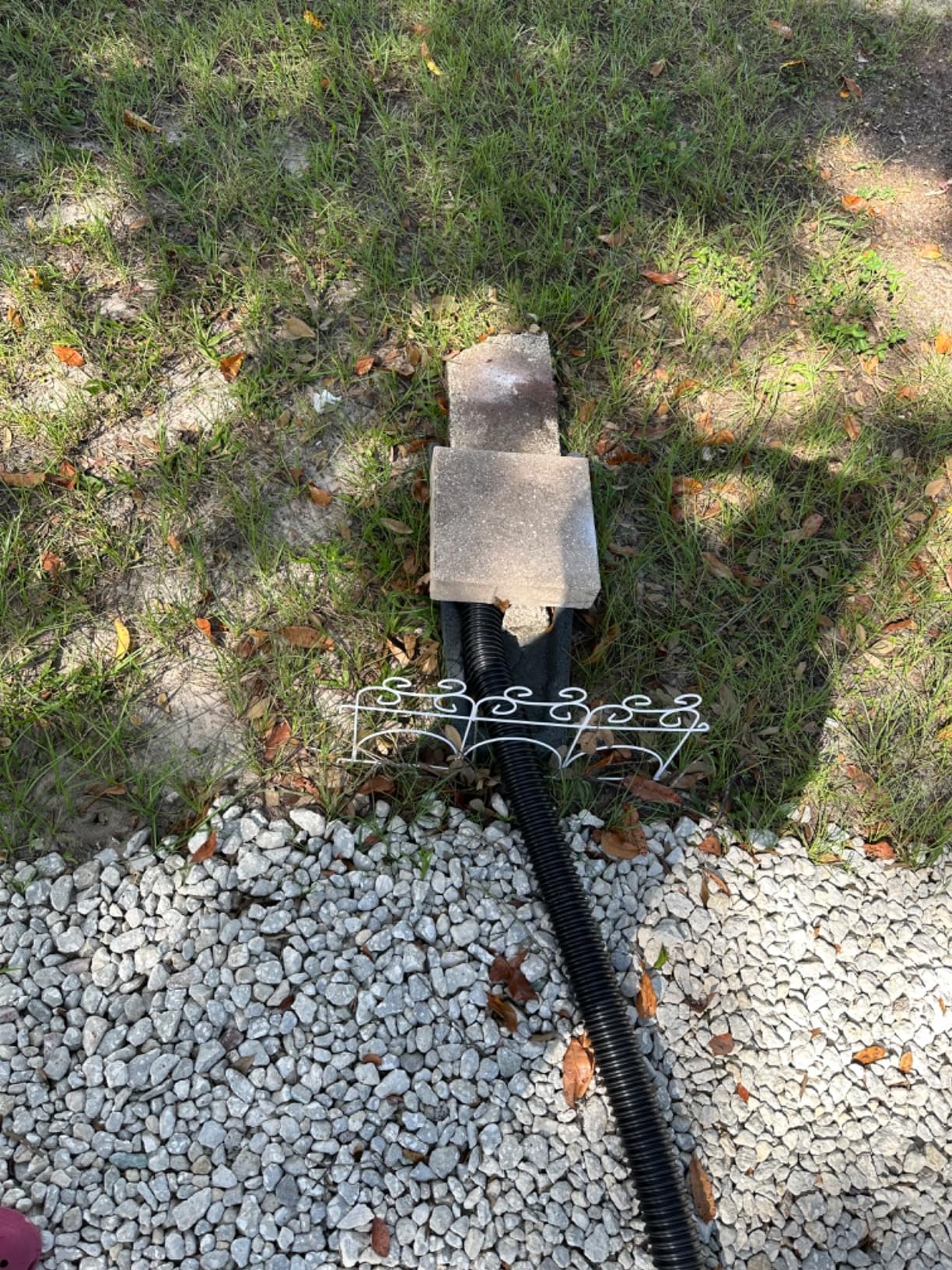

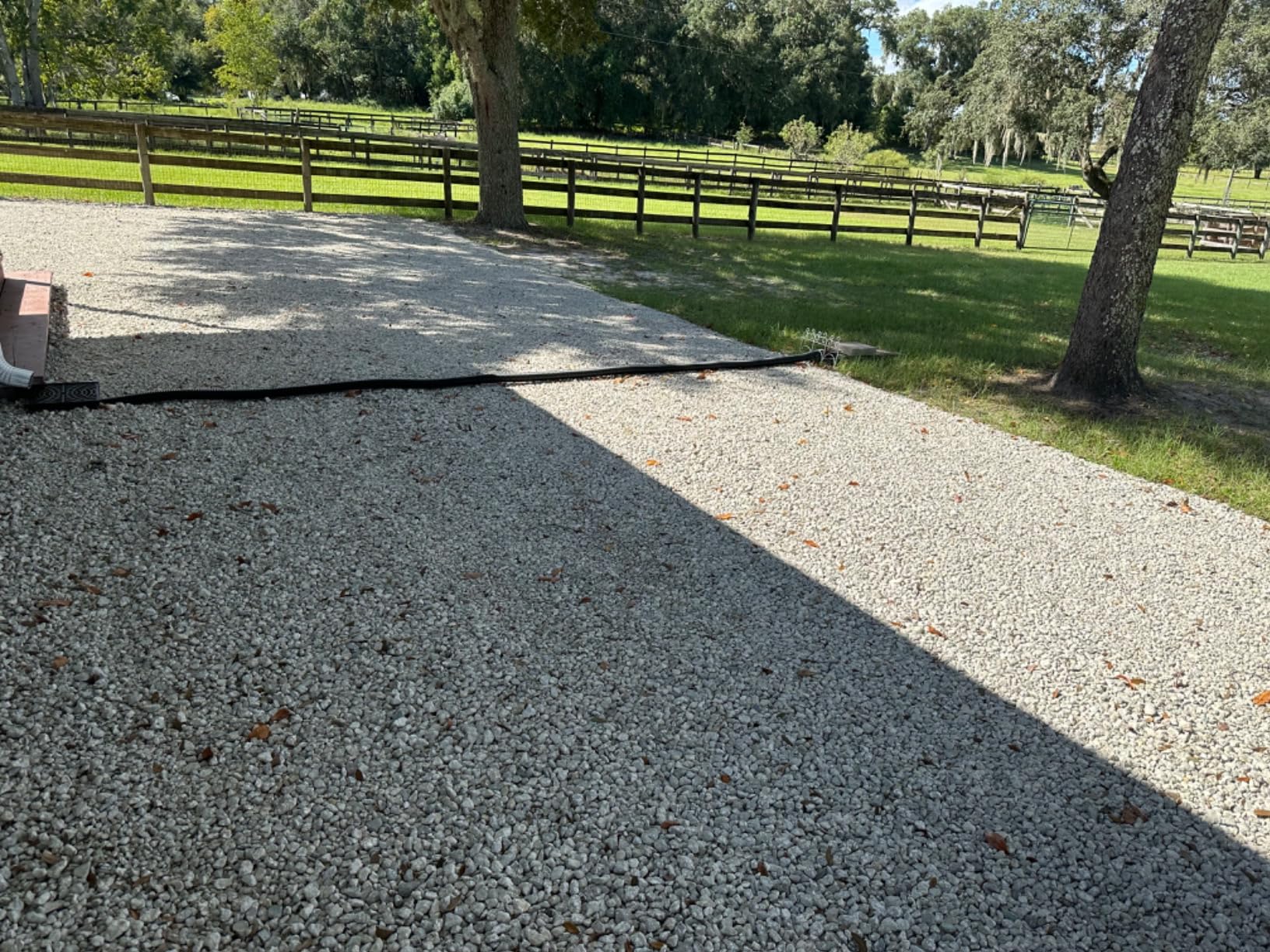

When I needed to divert water from my roof downspouts away from the foundation, this Prestantious kit solved the problem without requiring a trenching shovel. The low-profile basin sits just below ground level, barely visible in the landscaping. I connected it to three downspouts around my house, and basement moisture issues disappeared within weeks.
The flexible pipe is ingenious - it stretches from 4.6 feet to 16.4 feet, giving you versatility in where you direct the water. I ran mine underground to a pop-up emitter in the yard, and the extension capability made routing around obstacles simple. No adapters needed for connections, which eliminated potential leak points.
Installation took me about 45 minutes per basin. The hardest part was getting the hose onto the basin outlet - it requires some patience and wiggling. Once connected, though, it stays secure. The flexible pipe holds its shape underground and doesn't collapse under soil weight like some cheaper corrugated options.
The 12x12 inch basin catches leaves and debris effectively, preventing clogs downstream. During heavy rainstorms, I've watched it handle impressive water volumes without backing up. The black plastic blends into mulch beds, making it nearly invisible in landscaping.
This kit shines for downspout diversion, foundation protection, and patio drainage where minimal excavation is desired. It's not designed for vehicle traffic, so keep it in lawn or garden areas. The 16.4-foot maximum pipe length makes it suitable for most residential lot drainage needs.
The basin requires minimal excavation - just dig a hole deep enough for the unit to sit level with the ground. The flexible pipe connection is easier with warm temperatures - cold makes the plastic stiffer. Consider anchoring the basin with gravel if you have sandy soil that might shift.
US Patented design
No digging required
Extends 2.5-8ft
Double drain holes

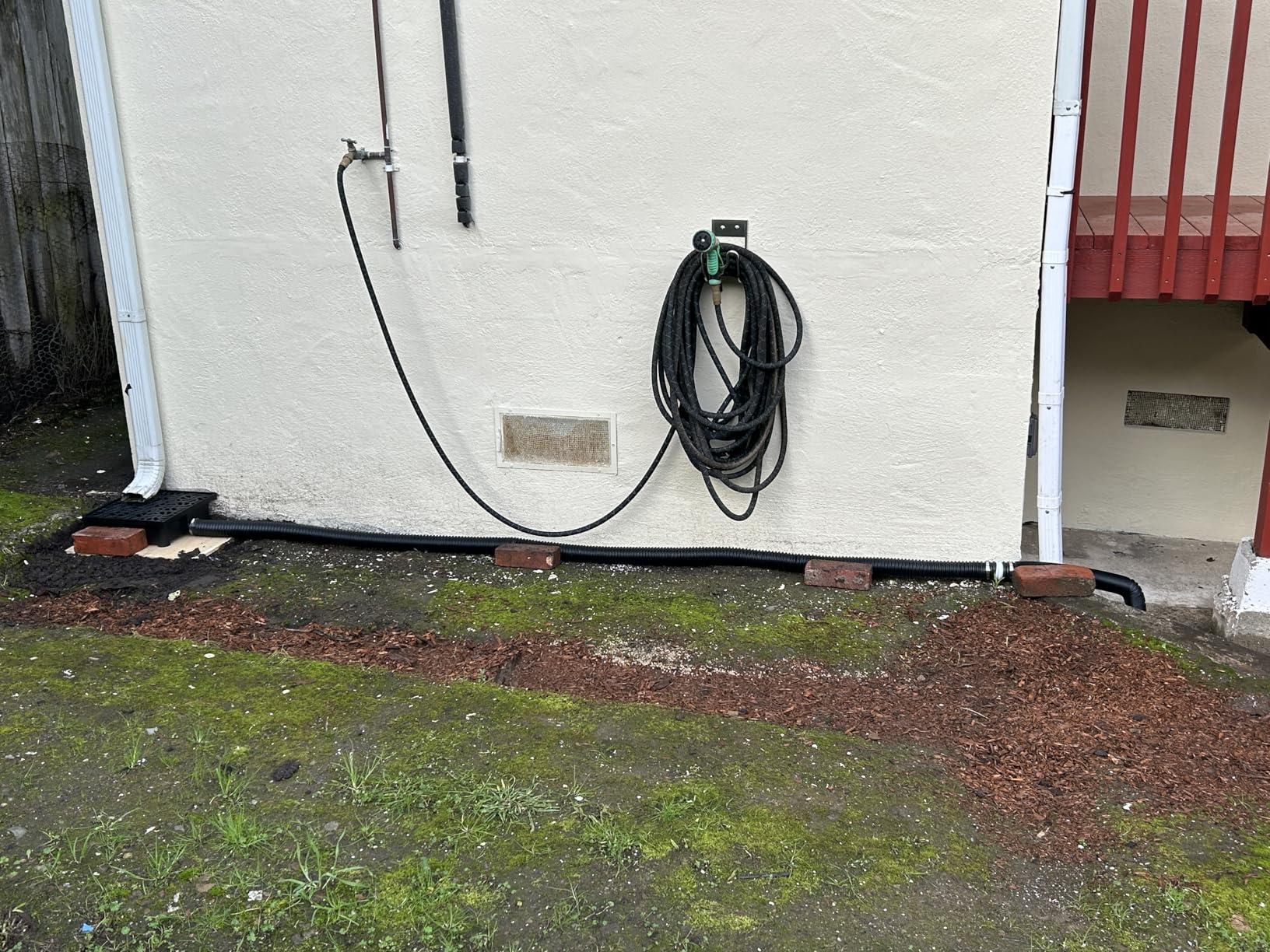

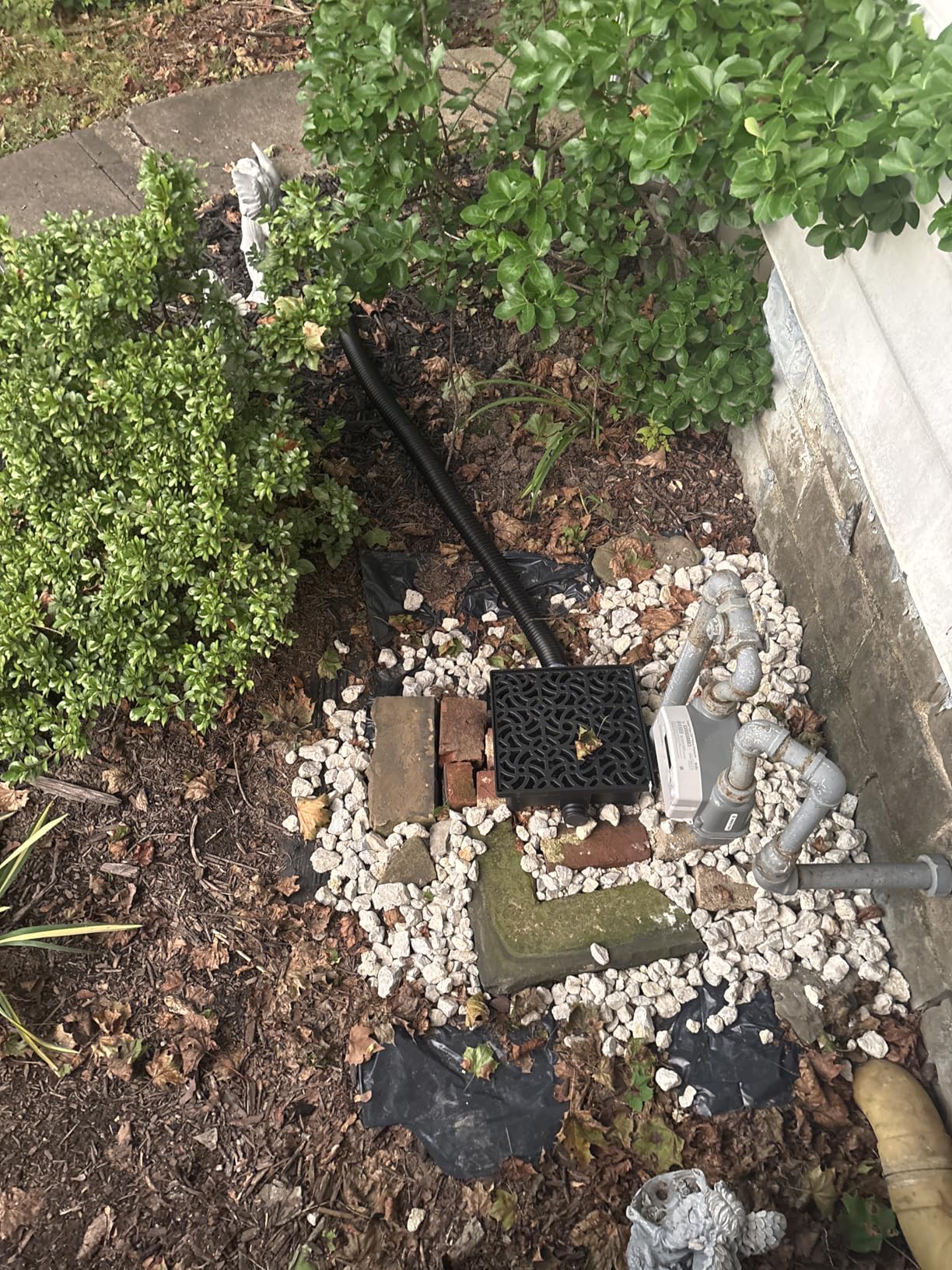

The NAACOO system caught my attention with its US-patented design (Patent No. D1018796), and after testing it against competing downspout extenders, I understand why. The double drain holes significantly improve water flow efficiency compared to single-hole designs I've used in the past. I installed four of these around my property last fall.
What sets this apart is the special slope design that prevents water accumulation in the basin itself. Other catch basins I've tested leave standing water that becomes a mosquito breeding ground, but the NAACOO drains completely. The flexible pipe extends from 2.5 to 8 feet, and if you need more length, the splicing capability lets you connect multiple sections.
The kit includes a debris catcher and filter screen, which have saved me from clogged pipes multiple times. During autumn leaf drop, the screen catches debris before it can enter the drainage system. Cleaning is straightforward - just lift the grate and remove accumulated material.
I appreciate the UV-resistant construction. After a full year in direct sunlight, the plastic hasn't degraded or become brittle like some budget drainage products. The anti-freeze and explosion-proof ratings give me confidence it will handle extreme weather conditions.
The main drawback is the hose attachment, which requires some technique. I found warming the end with hot water makes it more pliable and easier to connect. Once attached properly, the connection holds securely even under water pressure.
This system works best for residential downspout diversion where excavation isn't desired. It's compatible with 2x3, 3x4, and 3x3 inch downspouts, covering most residential configurations. The 8-foot maximum extension suits smaller urban lots or targeted drainage solutions.
The no-dig design makes this the fastest option to install - literally minutes per unit. The lightweight construction might need anchoring in windy exposed areas. I recommend placing a few rocks or bricks around the basin until the soil settles.
4-inch SCH40 DWV connection
Heavy-duty ABS construction
Angled drainage design
Removable grate

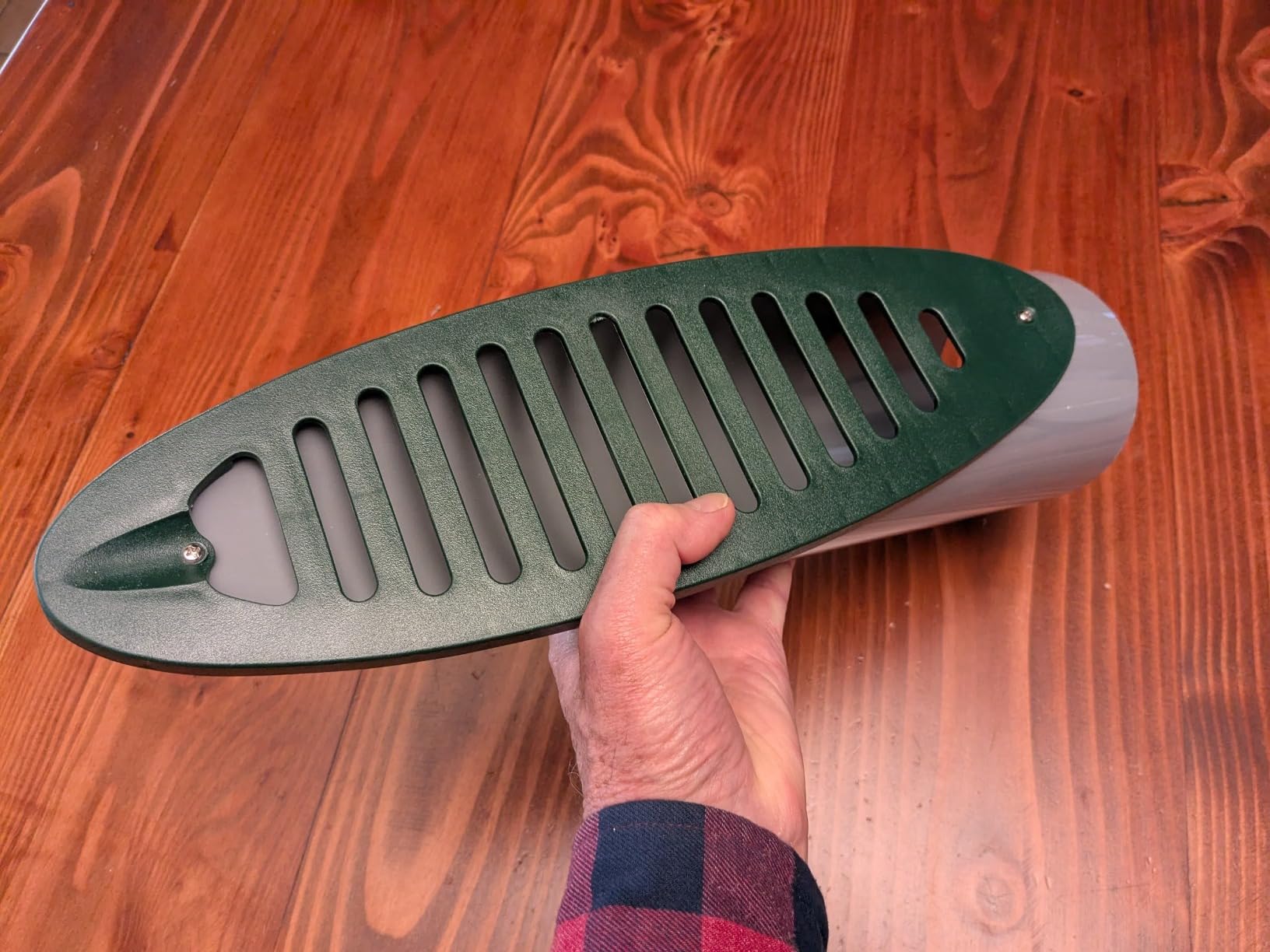

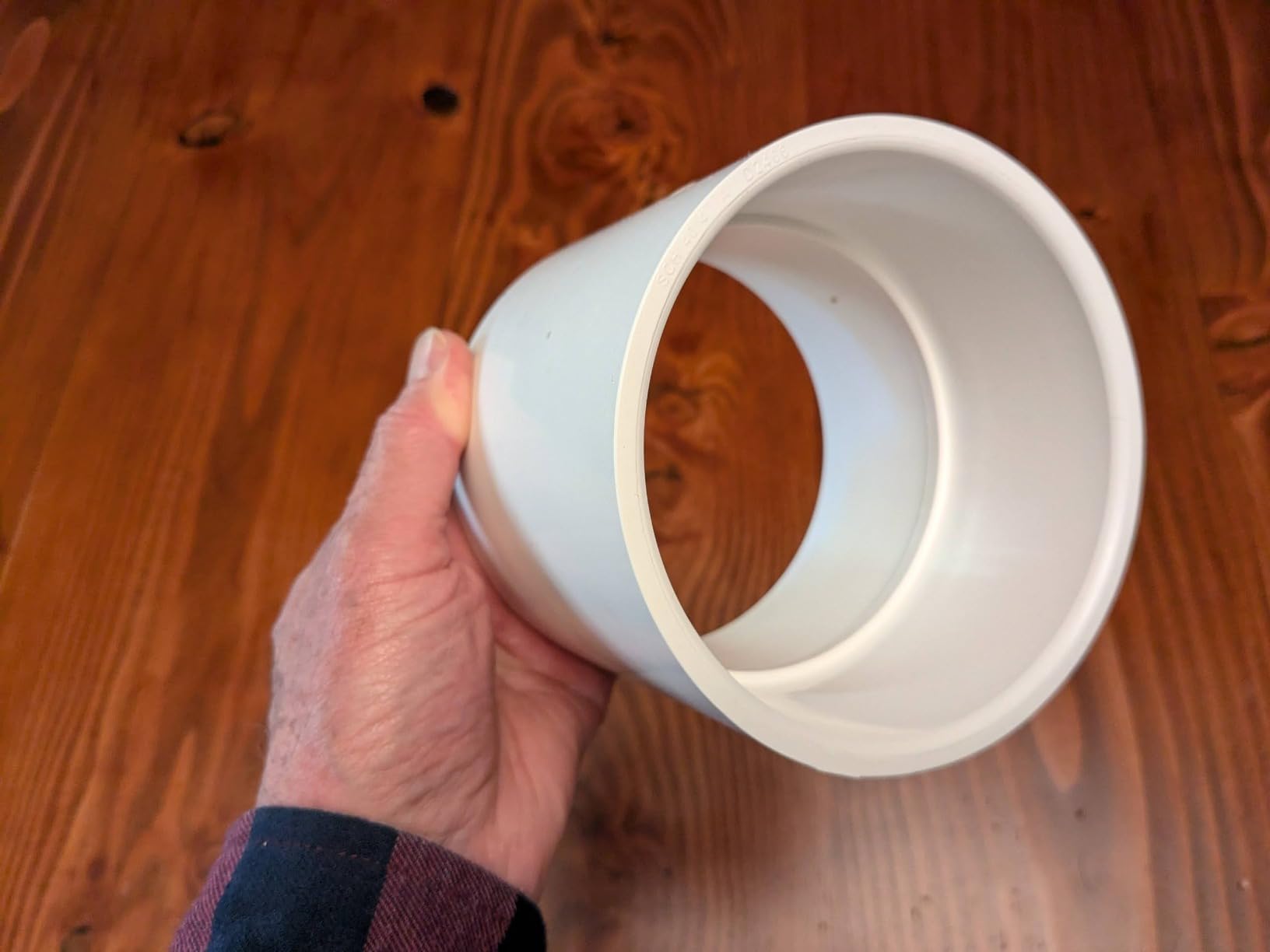

When I needed a discharge point for my French drain system, the Hualinsyi 4-inch yard drain kit proved to be the perfect solution. The heavy-duty ABS construction feels indestructible - this is clearly contractor-grade equipment, not flimsy consumer plastic. The angled design allows for natural slope integration, which is crucial for proper drainage.
I connected this to my 4-inch corrugated drain pipe using the included coupler, and the fit was perfect. The SCH40 DWV compatibility means it works with standard schedule 40 PVC if you prefer rigid pipe over corrugated. The removable grate, secured with two stainless steel screws, makes maintenance simple - I can clean out any debris in seconds.
What impressed me most is the 0.24-inch wall thickness, which provides substantial structural integrity. This isn't going to collapse under backfill weight or soil pressure. The color matches grass well, making it unobtrusive in the lawn. After six months of use, including several heavy rain events, it shows no signs of wear or clogging.
The angled design does require some planning during installation. You need to ensure the discharge slope matches your yard's grade. I recommend testing the angle before permanent installation - I temporarily held mine in place with gravel while verifying proper flow.
While it only has 21 reviews at the time of my testing, the 4.7-star rating with zero 1 or 2-star reviews speaks volumes about quality control. Every reviewer seems satisfied with the heavy-duty construction and performance.
This emitter excels as a discharge point for sump pumps, French drains, and underground downspout systems. The 4-inch capacity handles substantial water flow. It's ideal for lawn applications where you need to terminate a drainage system while maintaining an unobtrusive appearance.
The angled design requires matching your yard's slope - this isn't ideal for flat properties unless you create a berm. The 4-inch connection means you need matching pipe diameter. Plan your discharge point location carefully, as the fixed angle limits positioning flexibility.
5-inch deep channel
Galvanized steel grates
59 GPM flow rate
Class B load rated

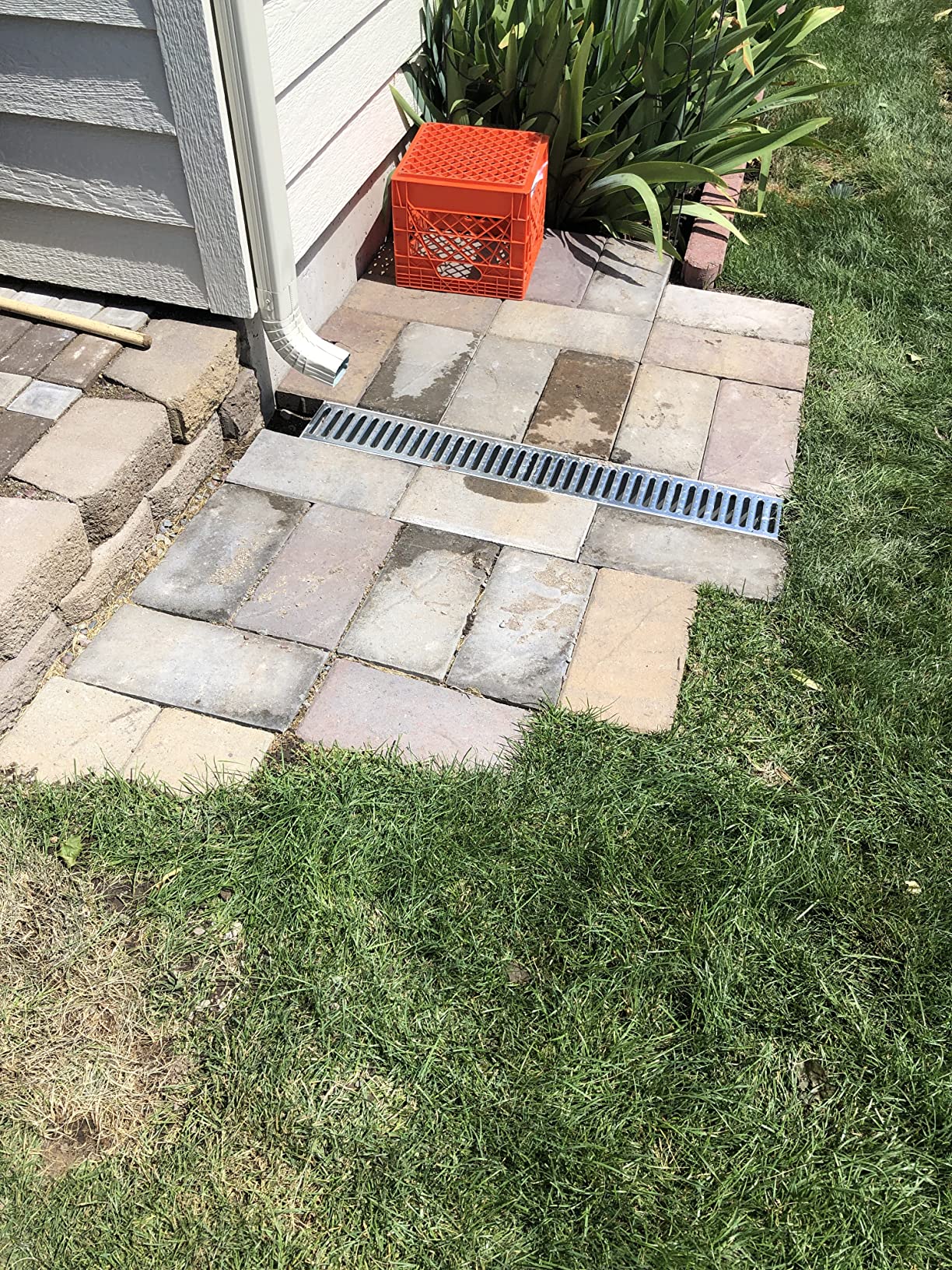

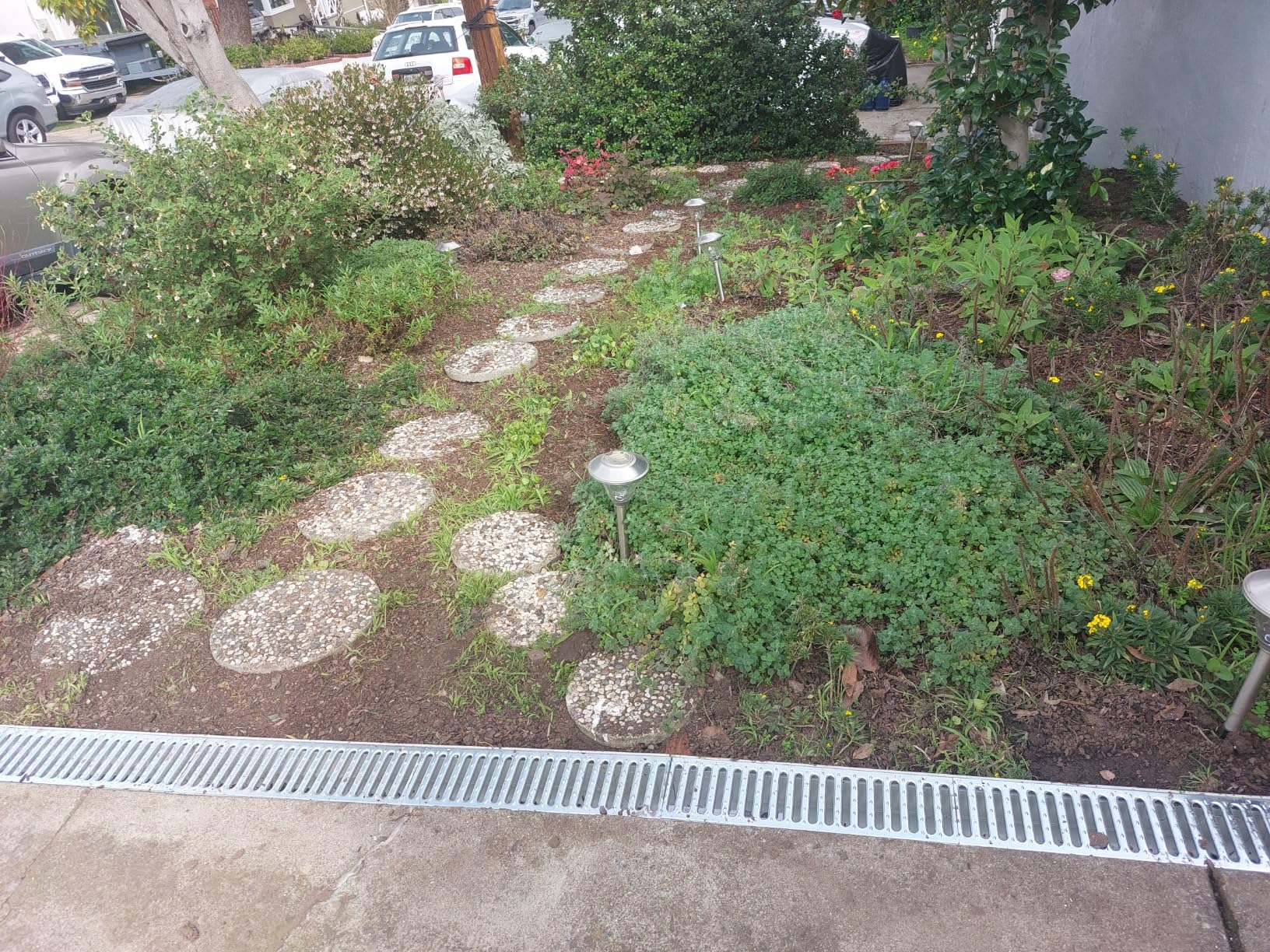

NDS is the professional standard in drainage, and this Pro Series channel drain kit demonstrates why. I installed a 40-foot run using two kits along a commercial parking lot, and the performance has been exceptional. The galvanized steel grates feel industrial-grade - they're not going to rust or deform under vehicle traffic.
The 59 GPM per foot flow rate is impressive. During a torrential downpour that dropped 3 inches in two hours, this system handled the runoff without any overflow. The 19.32 square inches of open surface area per linear foot means water enters quickly instead of pooling on the surface.
What makes this system professional-grade is the modular design. I connected multiple channels together for the full length, and the rebar clips made alignment straightforward. When I needed to fit around a corner, cutting the channels to custom lengths was simple with a reciprocating saw. The bottom outlet fits both 3-inch and 4-inch sewer and drain fittings, giving connection flexibility.
The Class B load rating (up to 175 psi) means this handles vehicle traffic without issue. I've had delivery trucks drive over it repeatedly with no damage. The ADA compliance is an important consideration for commercial properties - the grate openings are small enough to prevent heel entrapment.
My biggest frustration was the knockout holes on the end pieces. They're ridiculously difficult to remove properly. I ended up using a Dremel tool to carefully cut them out, which added time to the installation. Also, the instructions are essentially worthless - plan to watch YouTube tutorials instead.
This professional-grade system suits driveways, parking areas, patios, and anywhere with vehicle traffic. The 5-inch depth provides substantial capacity. It's overkill for simple residential lawn drainage but perfect for hardscaped areas requiring durable, high-capacity drainage.
Plan for a 6-inch minimum trench depth to accommodate the channel and base material. The modular design requires careful alignment - use the rebar clips provided. PVC cement doesn't bond well to the polypropylene body, so use mechanical connections instead of solvent welding.
9-inch catch basin
121 GPM flow rate
2 side openings
Weephole knockouts

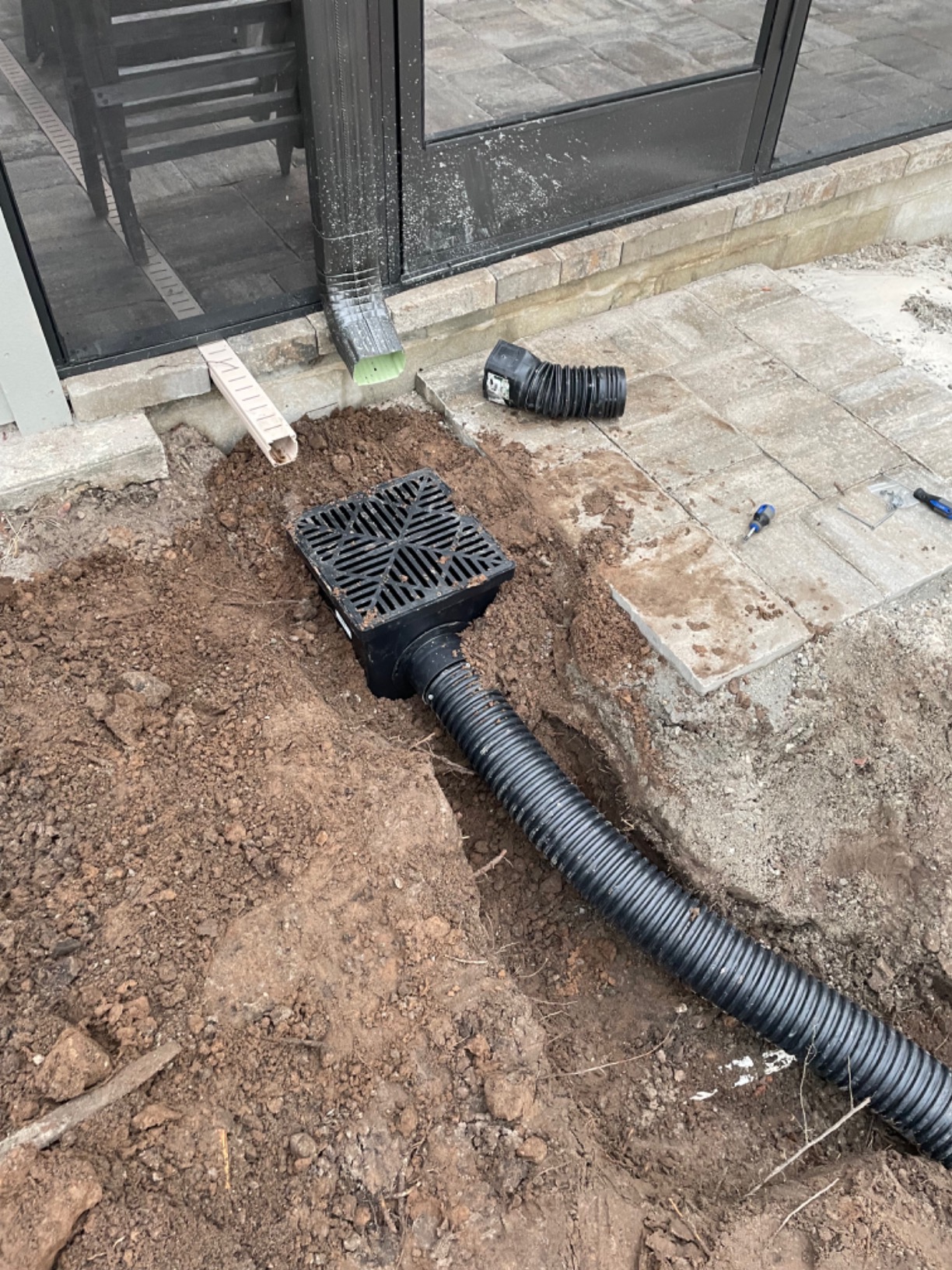

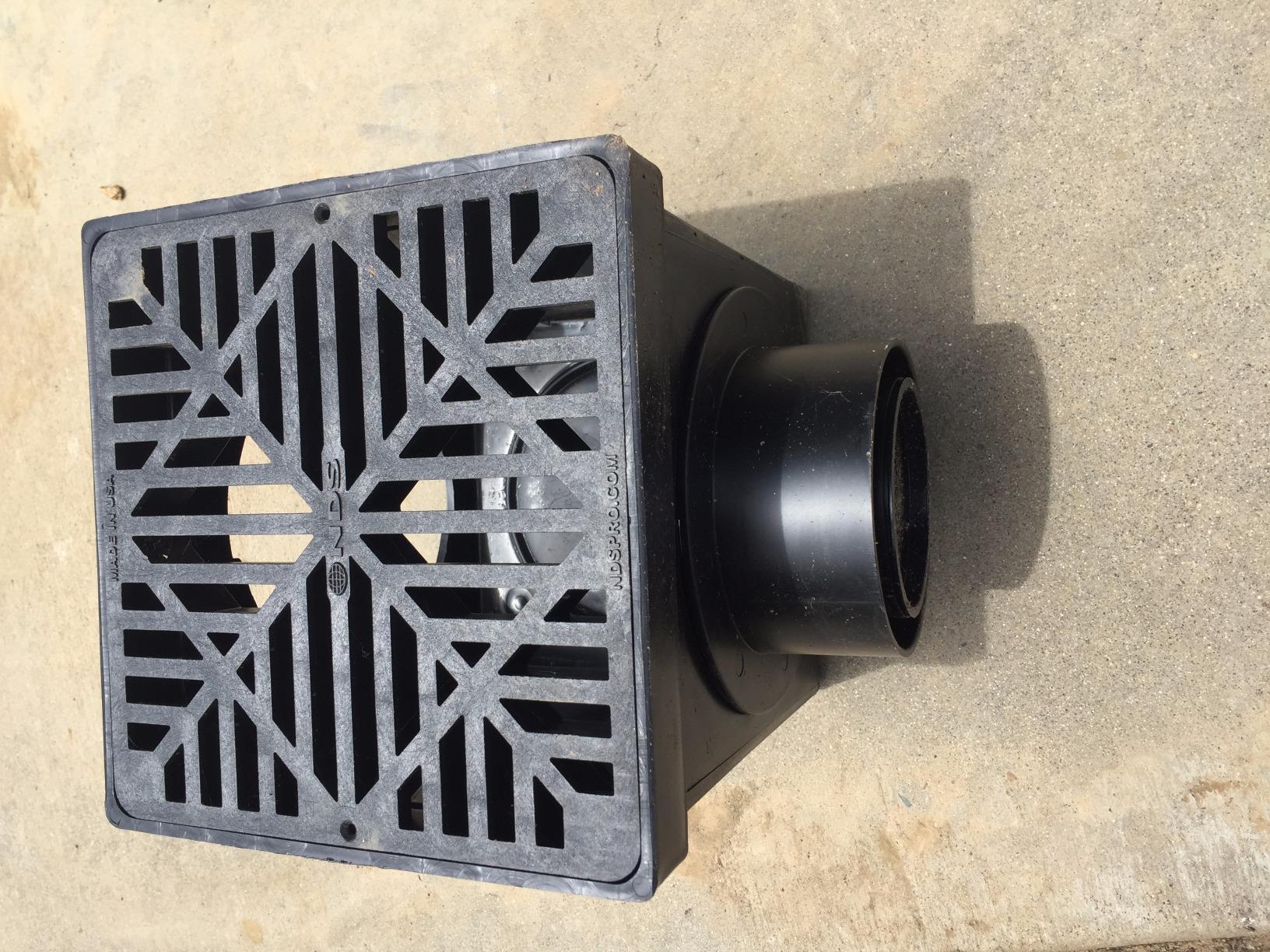

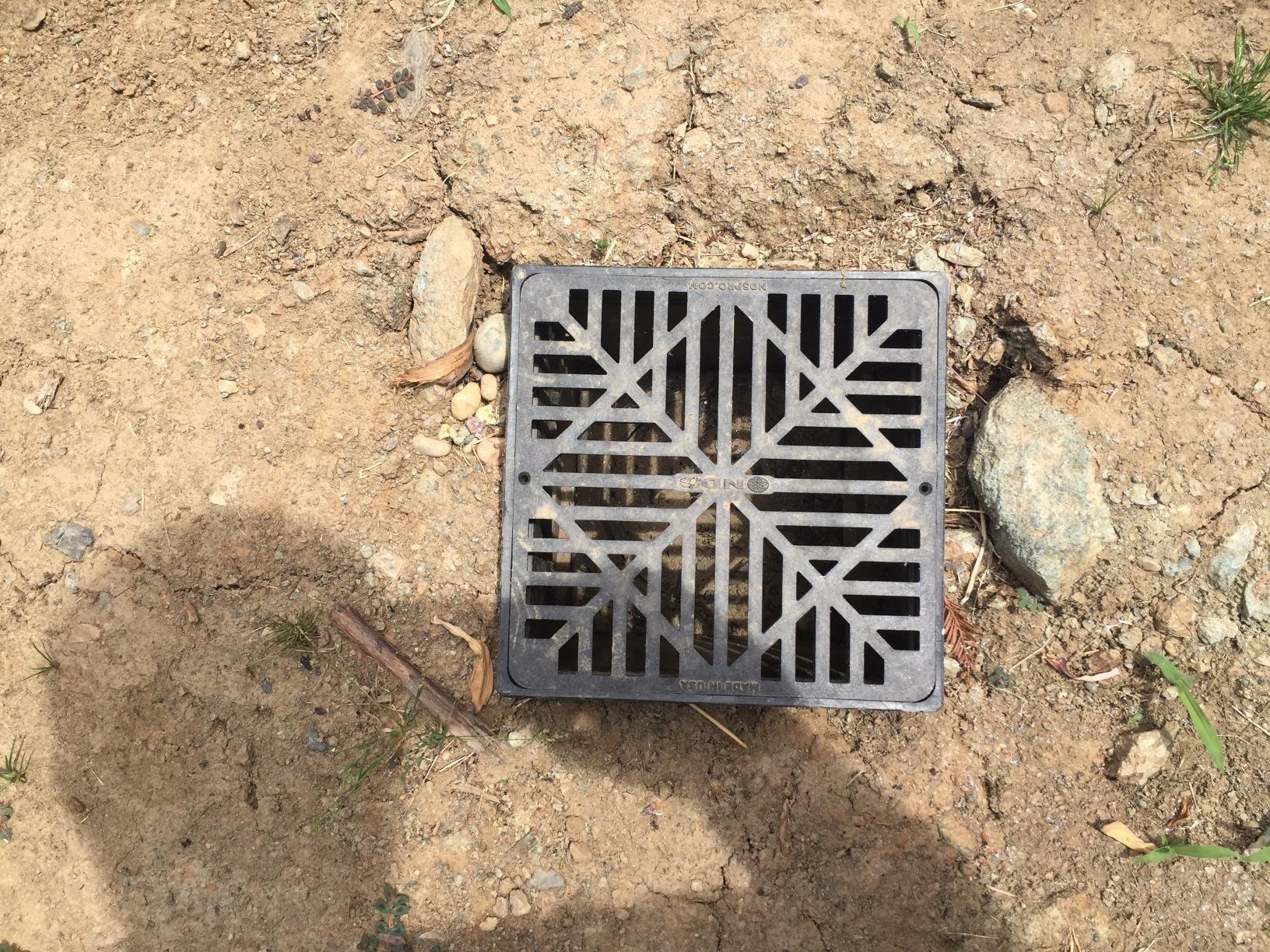

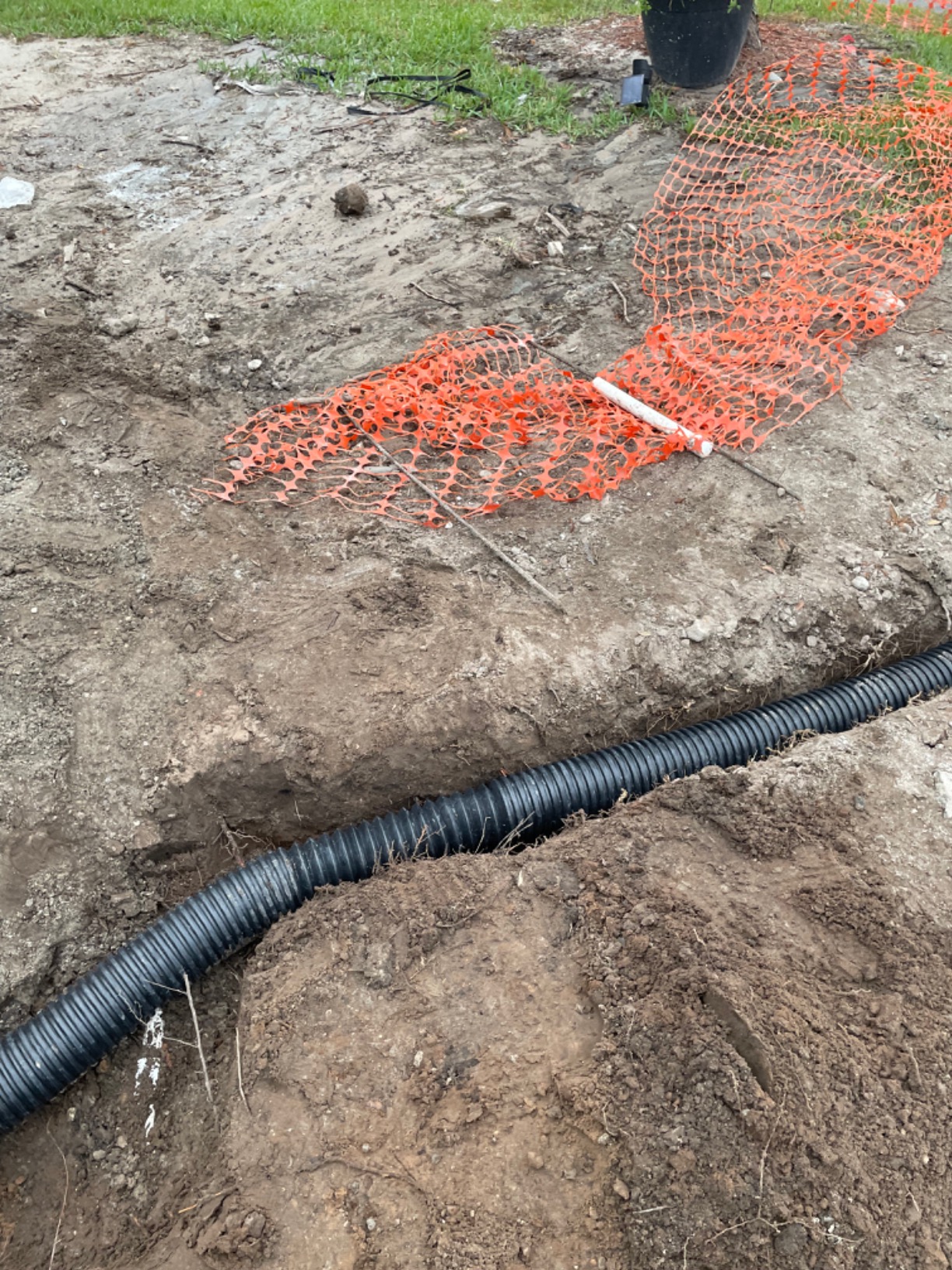

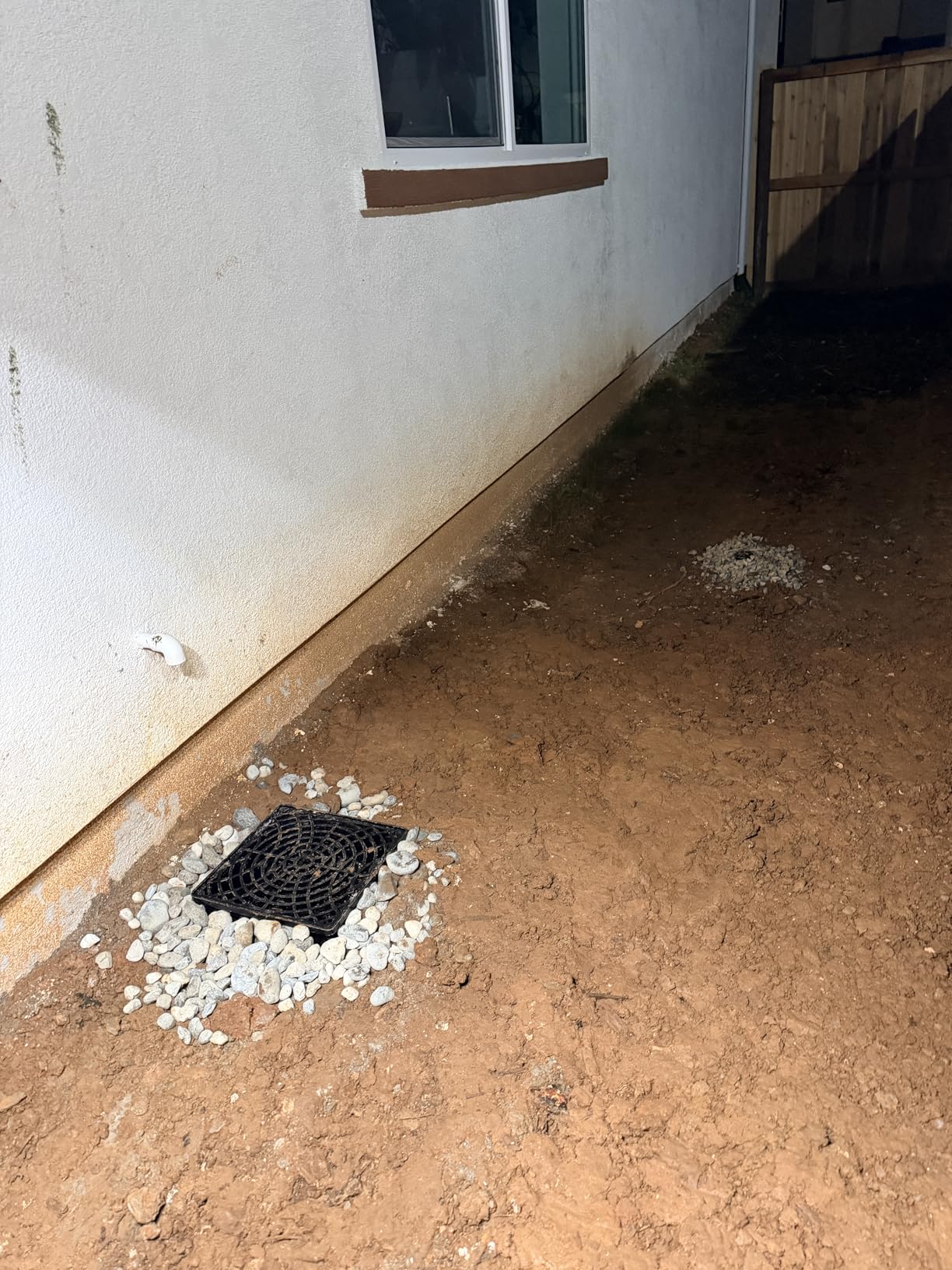

The NDS 9-inch catch basin hits the sweet spot for residential drainage projects. I installed three of these in a Florida yard that sees torrential summer rains, and they've handled everything thrown at them. The 121 GPM flow rate manages substantial water volume while the compact 9-inch footprint fits easily into landscaping beds.
This kit comes as a complete package - catch basin with two side openings, two outlet adapters, one outlet plug, and the plastic drain grate. The keyed side openings make adapter installation secure and straightforward. I particularly appreciate the weephole knockouts on the bottom, which eliminate stagnant water that would otherwise become a mosquito breeding ground.
Installation took about two hours per basin including trenching to the discharge point. The basin connects to standard 3-inch or 4-inch sewer and drain pipe. I ran mine to a dry well system, and the combination has kept a formerly swampy corner of the yard dry through the rainy season.
The construction quality is evident - thick polypropylene that doesn't flex under soil pressure. The removable grate secures with two screws, preventing it from popping off under foot traffic or lawn equipment. ADA compliance means the grate openings are safe for pedestrian areas.
Some users report fit issues with the side inserts requiring silicone caulk for a proper seal. I encountered this on one of my three installations and used plumber's epoxy to ensure a watertight connection. For new installations, I recommend using 4-inch pipe rather than 3-inch for better fit and flow capacity.
This 9-inch basin works perfectly for lawns, landscaped areas, and under downspouts where moderate water flow is expected. It's ideal for residential properties not requiring the capacity of larger commercial systems. The compact size makes it easy to disguise in planting beds.
The basin requires a hole approximately 15 inches square and 12 inches deep. Compact the base soil before placing the basin to prevent settling. Have silicone caulk or plumber's epoxy available in case the adapter inserts don't fit perfectly.
5-inch deep channel
HDPE plastic grates
72 GPM flow rate
Multiple outlet options
The NDS 5-inch Pro Series offers the same professional-grade performance as the steel grate version but with HDPE plastic grates that cost less while still delivering impressive durability. I installed this along a pool deck where barefoot traffic made plastic grates a safety preference over steel. The 72 GPM flow rate has handled pool splash-out and heavy rain equally well.
What sets this apart is the multiple connection options - bottom outlet for 3-inch and 4-inch fittings, side outlet for 3-inch pipe, and end outlet for 3-inch pipe and 4-inch fittings. This flexibility meant I could connect to my existing 4-inch drainage system without purchasing adapters. The kit includes everything needed: channel drain, grates, end cap/outlet, and end cap.
The modular design lets you connect multiple sections for longer runs or cut them to custom lengths. I needed a 12-foot section to span my pool deck, so I cut one channel to fit. The gray plastic color blends well with concrete and natural stone, making it less obtrusive than bright white alternatives.
During installation, I discovered that PVC cement doesn't bond well to the polypropylene body. I switched to mechanical connections using hose clamps, which proved more reliable. The bottom discharge port elbow fit was also problematic, requiring some modification with a heat gun to achieve proper alignment.
The end caps are the weak point - they can pop loose if not secured properly. I recommend using plumber's epoxy or a suitable adhesive to ensure they stay in place. Once installed correctly, though, the system performs flawlessly with no leaks.
This system excels in pool decks, patios, walkways, and anywhere pedestrian traffic makes plastic grates preferable. The 72 GPM flow handles substantial water volume. It's rated for light vehicle traffic but I'd keep it to foot-traffic areas for longevity.
Plan for a 6-inch trench depth minimum. Use mechanical connections rather than solvent welding for all joints. Secure end caps with adhesive to prevent popping. The modular system requires level base preparation for proper connections.
12x12 inch basin
8.2ft flexible pipe
Low profile design
Screw-type connection
For homeowners on a tight budget, this Prestantious kit delivers effective drainage at an attractive price point. I installed two of these in a problem area of my yard where water pooled after every rain. The 8.2-foot flexible pipe allowed me to direct water far enough away to solve the issue without spending a fortune.
The low-profile design means minimal excavation - just dig a shallow hole, place the basin, and you're done. Assembly took me about 20 minutes per unit, including connecting the flexible pipe. The screw-type connection between basin and hose is simple, though I found it doesn't provide as many locking grooves as I'd prefer.
The flexible pipe extends from 2.3 to 8.2 feet, providing good versatility for routing around obstacles. I ran mine under a sidewalk extension to discharge into a garden bed, and the flexibility made navigating the curve simple. The pipe material feels durable - after six months underground, it shows no signs of deterioration.
My main complaint is that the basin doesn't drain completely - about a half-inch of water remains after flow stops. This can become a mosquito breeding issue if not addressed. I drilled a small weep hole in the lowest corner, which solved the problem but shouldn't be necessary on a finished product.
The screw connection between hose and basin doesn't lock as securely as I'd like. During heavy flow, the pressure can cause separation. I wrapped the connection with duct tape as a precaution, which has held for months. The lid can also pop open if you have a heavy rain chain attached - consider adding a weight or strap.
This budget-friendly option works well for simple drainage problems where high flow capacity isn't required. It's ideal for lawns, landscaped areas, and light residential applications. The low profile makes it suitable for tight spaces where excavation isn't practical.
The minimal excavation required makes this the fastest option to install. Consider adding a weep hole for complete drainage. Secure the hose connection with duct tape or hose clamps for peace of mind. The lid may need additional securing if using with heavy rain chains.
12-inch catch basin
162 GPM flow rate
2 side openings
Heavy duty construction
When you need maximum drainage capacity, the NDS 12-inch catch basin delivers with an impressive 162 GPM flow rate. I installed this at the bottom of a sloped driveway where runoff was washing away gravel during heavy storms. The larger capacity eliminated the washout problem while handling substantial water volume without backup.
The 12-inch size provides 53.1 square inches of open surface area, significantly more than the 9-inch version. This matters when you're dealing with heavy downpours - water enters faster, reducing surface pooling. The basin depth is also greater, providing more storage before overflow occurs.
Construction quality matches the professional reputation of NDS products. Thick polypropylene walls resist soil pressure, and the removable grate secures firmly with two screws. The two side outlets connect to standard pipe sizes, though I recommend using 4-inch rather than 3-inch for optimal flow with this larger basin.
Installation followed the same process as the 9-inch version but required a larger hole - approximately 18 inches square and 14 inches deep. I connected mine to a 4-inch PVC discharge pipe running to a dry well. The combination has handled everything from summer thunderstorms to spring snowmelt without issues.
Like the 9-inch model, some users report fit issues with the side screw-in inserts. I encountered minor fit problems but resolved them with silicone caulk for a watertight seal. For permanent installations, I'd recommend stainless steel screws rather than the included ones for better corrosion resistance.
The 12-inch basin is particularly effective for driveway applications. The large capacity combined with proper gravel backfill prevents the washout problems that plague smaller drains on sloped surfaces. My driveway hasn't lost a single piece of gravel since installation.
This high-capacity basin suits driveways, large paved areas, commercial properties, and regions with heavy rainfall. It's ideal for applications where smaller basins would overflow during intense storms. The larger size makes it more visible in landscaping, so plan placement accordingly.
The larger footprint requires a bigger excavation hole - plan for 18 inches square. The increased depth means more soil to remove. Use 4-inch pipe for optimal performance. Have silicone caulk available for adapter sealing if needed.
9-inch catch basin
692 reviews
Universal fitment
Removable grate
With 692 reviews and counting, this NDS 9-inch catch basin has earned its reputation as the go-to choice for residential drainage projects. I've installed over a dozen of these in various applications, and they consistently deliver reliable performance. The universal fitment design accommodates various drainage scenarios, making it a versatile addition to any drainage system.
The construction quality is evident from the moment you unpack it - thick polypropylene that doesn't flex under pressure. The removable grate locks in place with two screws, preventing accidental removal while allowing easy access for cleaning. I've had these in place for years, and they still function like new.
Installation is straightforward for anyone with basic DIY skills. The 4-inch connectors lock securely into place after screwing, creating a solid connection that doesn't leak. Compatible with both 3-inch and 4-inch pipe, this basin adapts to your existing drainage infrastructure. I particularly appreciate how easily it integrates with thin-wall PVC (sewer drain pipe).
One critical note: this basin does NOT fit Schedule 40 PVC properly. You must use thin-wall sewer and drain pipe. I learned this the hard way on my first installation and had to make a hardware store run for the correct pipe type. Once I had the right materials, the connection was perfect.
The price point is reasonable compared to local home improvement stores, especially when buying multiple units. I've purchased enough of these to know that Amazon consistently offers better pricing than my local hardware store. The only downside is that this particular listing isn't Prime eligible, so factor shipping time into your project planning.
Some users report receiving units missing the outlet plug needed to seal off unused openings. I haven't encountered this personally, but it's worth checking the package contents upon arrival. The plug is essential if you're only using one outlet - without it, water simply leaks out the open port.
This versatile basin works for lawns, landscaped areas, under downspouts, and anywhere moderate stormwater drainage is needed. The 9-inch size balances capacity with unobtrusive appearance. It's the most reviewed catch basin for a reason - it handles most residential drainage needs effectively.
You must use thin-wall sewer and drain pipe, not Schedule 40 PVC. The basin requires a hole approximately 15 inches square and 12 inches deep. Check that the package includes the outlet plug upon delivery. Consider ordering extra units to have spares for future projects.
Choosing the right French drain kit depends on your specific drainage problem, soil conditions, and budget. After installing dozens of drainage systems across various properties, I've learned that matching the kit to the application is crucial for long-term success.
French drain pipe size directly impacts water capacity. For most residential applications, 4-inch pipe provides adequate flow while remaining manageable for DIY installation. Larger 6-inch pipe handles substantially more water but requires wider trenches and more gravel.
Consider your drainage area size when selecting pipe diameter. Small problem areas under 500 square feet typically need only 3-inch pipe. Medium areas up to 1,500 square feet benefit from 4-inch pipe. Large areas over 1,500 square feet or properties with severe drainage issues may require 6-inch pipe or multiple parallel drains.
Slope also affects pipe size selection. Steeper slopes allow smaller diameter pipe since gravity assists water flow. Flat or nearly flat properties require larger diameter pipe to prevent backup during heavy rainfall.
Traditional French drains use gravel to surround the perforated pipe, providing structural support and filtration. Gravel-free systems like the NDS EZflow use poly-rock sleeves instead, eliminating the need for heavy gravel transport and reducing installation labor significantly.
Gravel systems offer proven longevity and can last decades when properly installed. The gravel protects the pipe from soil compaction and provides additional water storage capacity during peak flow. However, hauling and placing tons of gravel is physically demanding work.
Gravel-free systems install in a fraction of the time and require less excavation. They're ideal for DIYers who want to avoid the heavy labor of gravel placement. While more expensive upfront, the time savings often justifies the cost for residential projects. The tradeoff is potentially shorter lifespan compared to traditional gravel systems.
Understanding costs helps budget your drainage project effectively. For a 50-foot French drain, materials typically run $15-25 per linear foot including pipe, gravel, fabric, and fittings. This doesn't include equipment rental or excavation costs.
Longer projects benefit from economies of scale. A 100-foot drain often costs only $12-20 per foot since you're buying materials in bulk and already have equipment on site. Professional installation adds $20-50 per foot depending on your location and soil conditions.
Surface drainage systems like channel drains cost more per linear foot ($30-60) but require less excavation. Catch basin systems range from $50-150 per basin depending on size and discharge piping requirements. Budget 10-15% over your material estimate for unexpected needs like additional couplers, fittings, or tools.
DIY installation can save substantial money but requires realistic assessment of your skills and physical ability. Hand-digging a 100-foot trench 12 inches deep and 6 inches wide is exhausting work, especially in compacted or rocky soil. Consider renting a trencher for longer runs - it costs $100-200 per day but saves days of backbreaking labor.
Professional installation ensures proper slope calculation and connection to discharge points. Contractors also handle permit requirements, which some municipalities require for drainage modifications. However, professional installation typically doubles the total project cost.
For simple residential drainage problems, DIY is entirely feasible if you're willing to put in the work. Start with smaller projects to build experience before tackling complex multi-drain systems. Watch installation videos specifically for your chosen kit before beginning - most manufacturers provide detailed tutorials.
Corrugated HDPE pipe with a sock filter is the best choice for most residential French drains. The flexibility makes it easy to work with around corners and obstacles, while the sock prevents soil intrusion that clogs the pipe. For long straight runs, rigid PVC with drilled holes offers better flow but is more difficult to install. The 8-slot design found on premium pipes like High Octane Armor provides superior water intake compared to traditional 2-slot options.
French drains require significant excavation and labor to install properly. They can clog over time if sediment penetrates the filter fabric or if the sock fails. Installation disrupts landscaping and may require removing and replanting grass or plants. In clay soil, French drains may struggle to disperse water effectively. They also require proper slope calculation - if installed incorrectly, they won't function and can even worsen drainage problems. Maintenance includes periodic flushing to remove sediment buildup.
A 200-foot DIY French drain typically costs $2,400-4,000 for materials including pipe, gravel, fabric, and fittings. This breaks down to $12-20 per linear foot. Equipment rental adds $200-400 if you need a trencher. Professional installation for 200 feet ranges from $6,000-10,000 including labor. Gravel-free systems cost more upfront ($15-25 per foot) but reduce installation time significantly. Regional price variations exist based on local material costs and labor rates. Always budget 10-15% extra for unexpected expenses like additional fittings or tool rental.
For surface water problems, channel drains or trench drains work better than French drains because they collect water at the surface before it penetrates the soil. Catch basins combined with solid pipe provide more targeted drainage for specific problem areas like downspouts. In some cases, regrading the surface to improve natural runoff eliminates the need for underground drainage entirely. Dry wells can complement French drains by providing discharge points where municipal drainage isn't available. Swales - shallow vegetated ditches - offer a natural alternative for properties with adequate space and slope.
Yes, DIY French drain installation is entirely feasible for homeowners with average DIY skills and physical fitness. The process involves digging a trench, adding gravel, placing the perforated pipe, covering with fabric, and backfilling. Most kits include detailed instructions, and manufacturers like French Drain Man provide excellent video tutorials. Hand digging is possible for shorter runs, but consider renting a trencher for projects over 50 feet. The most critical factors are maintaining proper slope (1-2% grade) and ensuring the discharge point is lower than the drain inlet. Allow 1-2 days for a typical 50-foot installation when working alone.
The best French drain kits solve persistent drainage problems while remaining manageable for DIY installation. After extensive testing across various applications and soil conditions, I recommend the VEVOR Trench Drain System as the overall best choice for its durability, capacity, and professional-grade performance. Budget-conscious homeowners should consider the NAACOO Downspout Extensions for an effective no-dig solution.
Remember that proper installation matters as much as equipment quality. Take time to calculate correct slope, prepare adequate base material, and ensure proper connections to discharge points. Watch manufacturer videos before starting, and don't hesitate to rent equipment like trenchers for larger projects - the time savings justify the cost.
Whether you're dealing with a soggy lawn, basement moisture, or driveway runoff, the right French drain kit from this guide will solve your drainage problems for years to come. Choose based on your specific application, budget, and DIY comfort level, and you'll transform that waterlogged property into a dry, usable space.
