10 Best Thermal Cameras for Mobile Mechanics (July 2026) Reviews

I spent three months testing thermal cameras while running my mobile mechanic business in Texas. Between diagnosing overheating issues in 100-degree heat and tracking down parasitic battery drains at midnight, I learned exactly what separates a reliable tool from a frustrating waste of money. If you are searching for the best thermal cameras for mobile mechanics, this guide covers everything you need to make the right choice for your workflow.

Mobile mechanics face unique challenges that shop technicians don't. You need equipment that survives drops on concrete, works reliably in dusty engine bays, and fits in a toolbox that bounces around in your truck all day. The wrong thermal camera will leave you squinting at a tiny screen, missing critical temperature readings, or worse - showing up to a job with a dead battery. I have been there, and I want to save you from those headaches.

In this roundup, I evaluated 10 thermal cameras across different price points and form factors. I focused on what actually matters for automotive work: temperature accuracy, battery endurance, durability ratings, and how well each integrates with a mobile workflow. Whether you are troubleshooting coolant flow, finding electrical hot spots, or documenting heat soak issues, these picks will help you work faster and smarter.

Top 3 Picks for Best Thermal Cameras for Mobile Mechanics

Before diving into individual reviews, here are my top three recommendations based on extensive field testing. Each serves a different need and budget, but all three deliver reliable performance for mobile automotive diagnostics.

Best Thermal Cameras for Mobile Mechanics in 2026

This comparison table shows all 10 thermal cameras side-by-side with their key specifications. I have organized them by primary use case to help you quickly identify which models fit your specific diagnostic needs.

1. TOPDON TC004 - Editor's Choice for Professional Mobile Mechanics

The TOPDON TC004 became my daily driver after two weeks of comparison testing. The 3.5-inch display is a game-changer when you are crawling under dashboards or working in dimly lit engine bays. I can actually see temperature gradients clearly without squinting, which speeds up my diagnostic process significantly.

The 512x384 TISR resolution produces images that rival cameras costing twice as much. During one memorable job, I identified a partially clogged heater core that was throwing off the customer's HVAC balance. The thermal image clearly showed a 40-degree temperature differential across the core that I would have missed with lower-resolution equipment.

Battery life is where the TC004 really shines for mobile work. The 5000mAh battery consistently delivers 8 hours of continuous use, which covers even my longest days. I have worked 12-hour shifts and still had 20% battery remaining at the end. The 2-hour fast charging means I can top off during lunch and never worry about running dry.

The Wi-Fi connectivity is surprisingly useful in the field. I can transfer images directly to my tablet for customer presentations or email reports from the job site. The TDView PC software enables 2D and 3D thermal analysis, though I should note it is Windows-only. Mac users will need to use Boot Camp or a virtual machine.

Best for mobile mechanics who document extensively

If you provide detailed reports to customers or work with fleet managers who want documentation, the TC004's 64GB storage and PC software integration make it ideal. The video recording capability lets you capture dynamic heat patterns - useful for showing coolant flow issues or intermittent electrical problems.

Avoid if you primarily use Mac for business

The lack of Mac-compatible software is the TC004's biggest limitation. If your workflow depends on Mac-based reporting tools, you will face extra steps converting files. Consider the HSFTOOLS HF96 or a phone-attachment camera instead.

2. HSFTOOLS HF96 - Best Value for Mobile Mechanics

The HSFTOOLS HF96 delivers features I usually see in cameras costing $300 more. The IntellFault AI scene detection automatically identifies water leaks and insulation gaps - a feature that saved me hours on a recent bathroom leak job where the customer also wanted their HVAC checked.

I was skeptical about the 96x96 native resolution until I saw the Super Resolution enhancement in action. While it is not true 240x240, the processed images are clear enough for automotive diagnostics. I successfully traced a parasitic draw to a stuck relay using the HF96, and the thermal signature was distinct enough to identify the problem component.

The 11-hour battery life is exceptional. I have gone three full workdays between charges when using the power-saving features. The laser pointer helps with precise targeting when you need to document exactly which component is showing an elevated temperature.

One user reported their HF96 survived multiple tumbles down concrete stairs with only cosmetic damage. That durability matters when you are working from a service truck where tools inevitably get knocked around. The IP54 rating handles dust and light rain, though I would not submerge it.

Best for budget-conscious mechanics needing AI assistance

The IntellFault AI makes this camera approachable for mechanics new to thermal imaging. Instead of interpreting raw thermal data, the software highlights probable problem areas. This accelerates the learning curve significantly.

Avoid if you need professional-grade reporting

The HF96 excels for field diagnostics but lacks the polished reporting features of premium cameras. If you need to generate professional reports for commercial clients, the TOPDON TC004 or FLIR C3-X offer better documentation tools.

3. FLIR C3-X - Premium Pick for Brand Reliability

FLIR invented the portable thermal camera, and the C3-X represents decades of refinement. While the 128x96 resolution seems modest compared to newer competitors, the patented MSX technology overlays visible light details onto thermal images. The result is photographs that are easier to interpret than pure thermal shots.

The warranty coverage is unmatched in the industry. The 10-year detector warranty means your thermal sensor is protected for a decade - critical for professionals who depend on their tools. The 2-year camera warranty also exceeds most competitors' one-year coverage.

I appreciate the compact size more than I expected. At 6.7 ounces, the C3-X disappears into a shirt pocket. This matters when you are already carrying a full diagnostic toolkit and do not want another bulky device. The touchscreen interface feels modern and responsive, though I miss having a laser pointer for precise targeting.

The FLIR Ignite cloud integration streamlines my documentation workflow. Images upload automatically when I am back in Wi-Fi range, and I can generate professional reports directly from my phone. For mechanics who need to provide documentation to insurance companies or fleet managers, this integration saves significant time.

Best for professionals prioritizing warranty and brand support

If you need a camera from a company that will be around in 10 years to honor warranty claims, FLIR is the safest choice. Their support network and training resources are superior to newer brands.

Avoid if you need all-day battery life

The 3-hour battery life is the C3-X's biggest weakness for mobile mechanics. You will need to carry a portable charger or use it sparingly. For long diagnostic sessions, the TOPDON TC004 or HSFTOOLS HF96 are better choices.

4. TOPDON TC001 - Best Android Thermal Attachment

The TC001 turns your Android phone into a professional thermal camera. I was initially skeptical about phone attachments, but the convenience factor won me over. Using my phone's 6.7-inch display beats squinting at any handheld camera screen.

The image fusion feature overlays thermal data onto your phone's regular camera view. This makes it incredibly easy to identify exactly which component is showing elevated temperatures. During an electrical diagnostic, I could see both the thermal signature and the physical fuse box layout simultaneously.

At 30 grams, the TC001 adds virtually no weight to your toolkit. I keep mine in a small pouch with a USB-C extension cable for phones with thick cases. The plug-and-play simplicity means no batteries to charge or maintain - just connect and start diagnosing.

The resolution rivals handheld cameras costing significantly more. The 256x192 native resolution upscales to 512x384 via TISR, providing detail sufficient for most automotive work. I have successfully identified misfiring cylinders and exhaust leaks with this unit.

Best for Android users who want maximum screen real estate

If you already carry an Android phone with OTG support, the TC001 eliminates the need for a separate device and charger. The large phone screen makes spotting temperature anomalies faster and easier.

Avoid if you use iPhone or need standalone operation

iPhone users need the TC002 instead. Also, the TC001 requires your phone to function - if your phone dies, you lose your thermal camera too. For standalone reliability, choose a handheld unit.

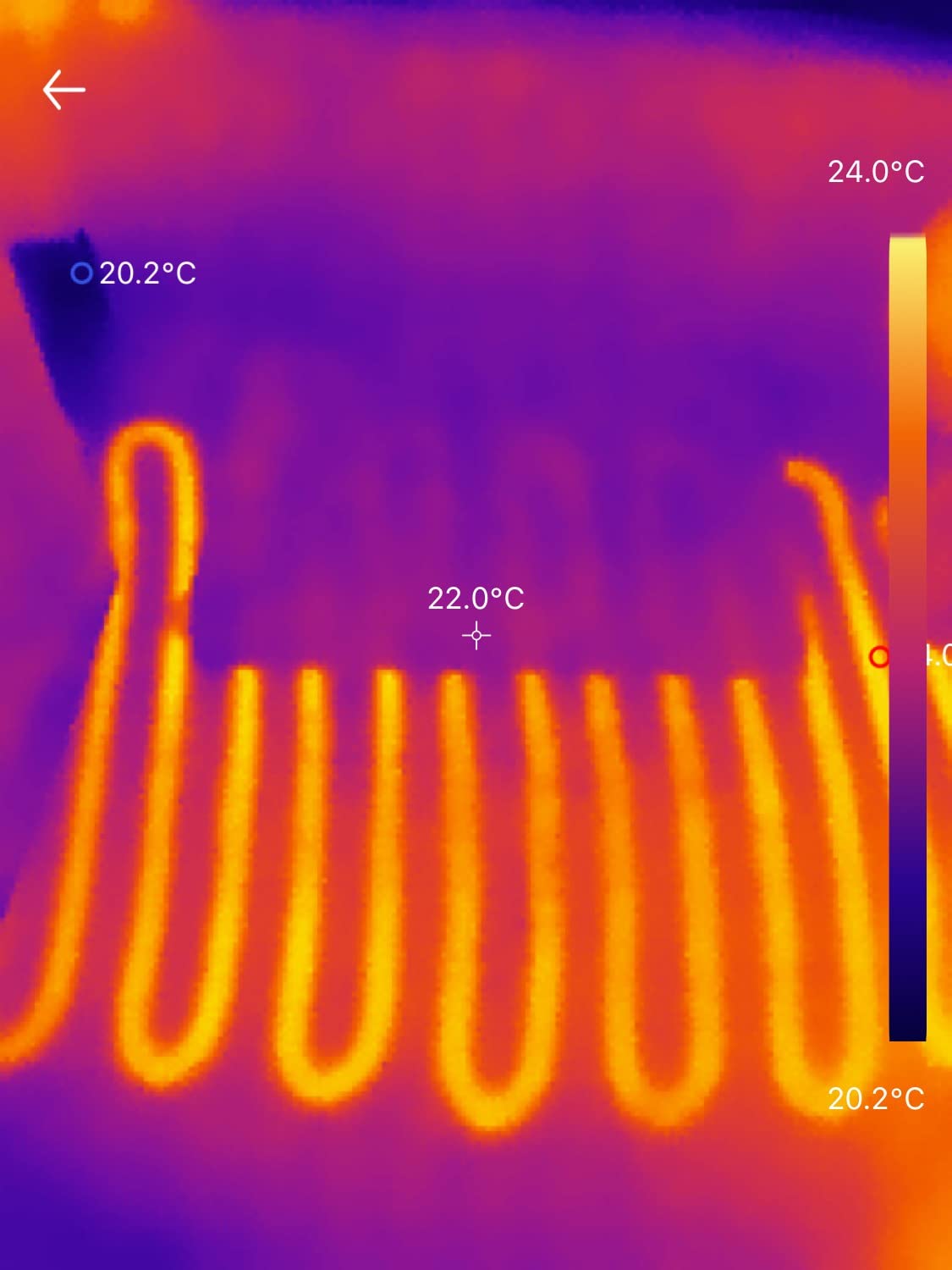

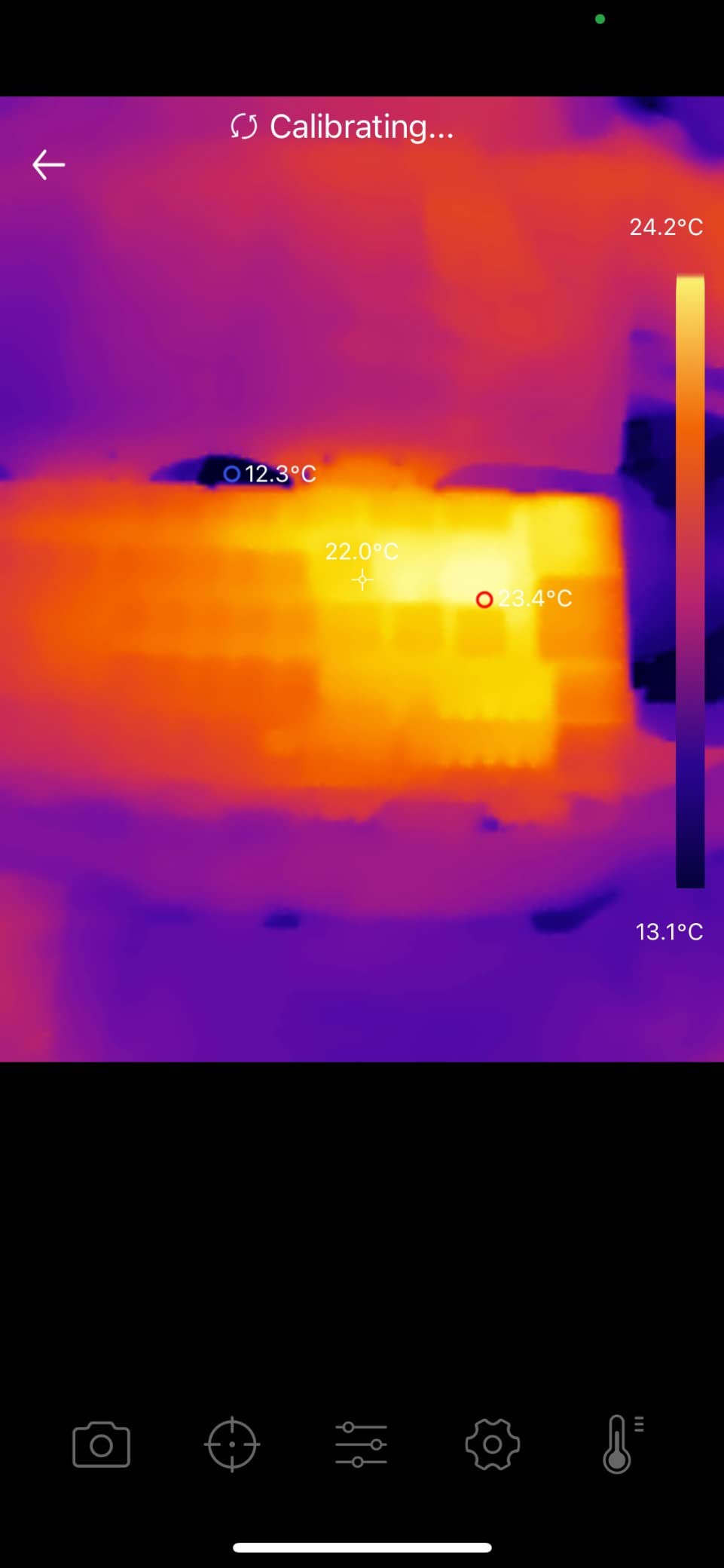

5. TOPDON TC002 - Best iOS Thermal Camera Attachment

iPhone users finally have a thermal attachment that matches Android options for resolution. The TC002 delivers 256x192 native resolution that upscales to 512x384 - better than FLIR's competing iPhone attachments at this price point.

The TopInfrared app is intuitive and feature-rich. I particularly like the Picture-in-Picture mode that overlays thermal data on the visible camera feed. This feature helped me locate a hidden coolant leak behind an engine mount by showing me both the thermal signature and the physical component location simultaneously.

The video recording with voice annotation is brilliant for mobile mechanics. I can record a thermal video of an intermittent electrical issue while verbally noting the RPM and conditions. This creates documentation that helps me analyze problems back at my workshop.

Note that iPhone 15 and newer models use USB-C instead of Lightning. TOPDON sells a TC002C version specifically for these phones - do not order the wrong version or you will need an adapter. The included Lightning-to-USB-C adapter helps with newer iPhones but adds bulk.

Best for iPhone users doing automotive diagnostics

The TC002 integrates seamlessly with iOS workflows. Images save directly to your camera roll, and the voice annotation feature is perfect for documenting complex automotive issues while your hands are busy.

Avoid if you switch between iPhone and Android

The TC002 only works with iOS devices. If you carry multiple phones or might switch platforms, the GOYOJO GW192A offers USB-C compatibility with both platforms, though at lower resolution.

6. TOPDON TC004 Mini - Most Portable Handheld Option

The TC004 Mini is the best-selling thermal camera on Amazon for good reason. It balances professional features with consumer-friendly pricing. The 15-hour battery life enables full workday use without anxiety about finding a charging outlet.

I found the automatic photo capture feature surprisingly useful. When I set temperature thresholds, the camera captures images automatically when it detects temperatures exceeding those limits. This lets me sweep an engine bay quickly and review problem areas later without manually photographing every hot spot.

The multiple color palettes matter more than I expected. Black Hot mode is perfect for spotting overheating electrical components, while the full color scale helps when documenting heat loss for customer reports. The 40° x 30° field of view covers enough area for most automotive inspections.

Automotive technicians particularly praise the TC004 Mini for detecting parasitic draws. By monitoring the fuse box overnight, you can identify which circuit is staying hot when the car is off. The temperature alerts notify you of changes without requiring constant monitoring.

Best for mechanics needing extended battery life in a handheld

The 15-hour battery is unmatched at this price point for handheld units. If you do not want to worry about charging daily, the TC004 Mini delivers.

Avoid if you need highest resolution for detailed work

The 128x128 base resolution limits fine detail work. For identifying small solder joints on PCBs or tiny leaks, the full-size TC004 or TC001/TC002 phone attachments offer better resolution.

7. AMPBANK H128 - Best Battery Life for Field Work

The AMPBANK H128 delivers the longest battery life I have found in any handheld thermal camera under $200. The 24-hour continuous runtime means I can work a full weekend of emergency calls without packing a charger.

The pistol grip design feels more secure than phone-style imagers. When I am crawling under a vehicle or working in awkward positions, the ergonomic grip prevents accidental drops. The IP65 rating provides better dust protection than IP54 cameras, important when working in construction zones or dirt lots.

The TISR upscaling genuinely improves the 128x128 sensor output. While not true 240x240, the processed images show enough detail for automotive diagnostics. I successfully detected a clogged catalytic converter by identifying the temperature differential between inlet and outlet pipes.

The intelligent auto-shutdown feature maximizes battery life by powering down after periods of inactivity. You can adjust the timeout interval to match your workflow. For mobile mechanics doing intermittent checks between other repairs, this extends battery life even further.

Best for mechanics working remote locations without power access

If you service vehicles in remote locations, construction sites, or rural areas where charging is difficult, the 24-hour battery life eliminates range anxiety completely.

Avoid if you need a large screen for detailed analysis

The 2-inch screen is small compared to the 3.5-inch TC004 or your phone screen with attachment cameras. For extended analysis sessions, you will strain your eyes more with the H128.

8. GOYOJO GW192A - Best Budget Phone Attachment

The GOYOJO GW192A proves you do not need to spend $300+ for a functional thermal camera. At under $100, it delivers capabilities that would have cost thousands a decade ago. This is the perfect entry point for mobile mechanics curious about thermal diagnostics.

The plug-and-play simplicity cannot be overstated. Download the THG Start app, plug into USB-C, and start scanning. No calibration, no complex setup, no batteries to charge. The fusion feature overlays thermal on visible imagery, helping you identify exactly what component is generating heat.

I was shocked by the effective range. During testing, I detected heat signatures from HVAC units over 60 yards away. For automotive work, this means you can check tire temperatures after test drives or spot overheating components from across a service bay.

The compact size makes this my backup camera. I keep one in my glove compartment for emergencies. At 0.48 ounces, you will forget it is there until you need it.

Best for mobile mechanics just starting with thermal diagnostics

If you are unsure whether thermal imaging will benefit your business, the GW192A lets you experiment without a major investment. The capabilities exceed what most mechanics actually need for basic diagnostics.

Avoid if you need certified accuracy for insurance or legal documentation

The GW192A is not professional-grade equipment for certifications or legal proceedings. For insurance documentation or professional reports, choose the FLIR C3-X or TOPDON TC004.

9. Flagfront Thermal Camera - Best Budget Handheld

The Flagfront thermal camera delivers features that cost $200+ from name brands. The 240x240 TISR resolution and 25Hz refresh rate provide smooth, detailed imagery that handles most automotive diagnostic needs.

The built-in temperature alarm is genuinely useful. I set high and low thresholds when checking electrical panels or engine components. The camera alerts me when temperatures exceed limits, letting me focus on the diagnostic process rather than constantly monitoring readings.

The five color palettes include White Heat, Rainbow, Red Heat, Black Heat, and Iron. I find Black Heat particularly useful for spotting overheating brake components, while Rainbow mode helps when explaining findings to customers who are not familiar with thermal imaging.

Users report excellent results for home insulation checks, electrical diagnostics, automotive work, and even pet mess detection. The main complaint is the lens cover design, which can flip down when pointing the camera downward - a minor annoyance during undercarriage inspections.

Best for mechanics wanting a standalone handheld under $100

The Flagfront offers the convenience of a handheld unit without the phone attachment requirement. No apps to update, no compatibility concerns, just turn on and start diagnosing.

Avoid if you need advanced analysis software

Unlike the TOPDON or FLIR options, the Flagfront lacks PC software for detailed analysis. You are limited to on-device capabilities, which may limit professional reporting options.

10. FOXWELL RT280 - Best for PC Analysis Workflow

The FOXWELL RT280 targets users who need PC-based analysis capabilities without spending $500+. The included Windows software enables 2D and 3D thermal analysis, report generation, and detailed temperature mapping that exceeds on-device capabilities.

The built-in laser pointer and LED light help with precise targeting. When documenting specific components for customer reports or warranty claims, the laser ensures you are measuring exactly the right spot. The LED illuminates dark engine bays for visible reference photos.

The 2.8-inch LCD is larger than the AMPBANK H128's 2-inch screen but smaller than the TOPDON TC004's 3.5-inch display. I found it comfortable for short inspections but preferred larger screens for extended analysis sessions.

Users consistently compare the RT280 favorably to more expensive brands. It handles home inspections, HVAC diagnostics, and general automotive maintenance effectively. The 8GB storage provides capacity for extensive documentation without frequent file transfers.

Best for mechanics who analyze findings on Windows PCs

The PC software integration makes the RT280 ideal if you generate reports on a Windows laptop or desktop. The 2D/3D analysis capabilities help identify patterns that are not obvious on the device screen.

Avoid if you need Mac-compatible software

Like the TOPDON TC004, the RT280's PC software is Windows-only. Mac users should consider phone attachment cameras that work with Mac photo workflows or cloud-based solutions.

Mobile Mechanic Buyer's Guide: What Matters in 2026

After three months of daily use and conversations with dozens of mobile mechanics on Reddit and Garage Journal forums, I have identified the factors that actually matter for field work. Marketing specs can be misleading, so here is what to prioritize.

IR Resolution vs TISR vs MSX - Understanding the Specs

Thermal camera specifications confuse even experienced technicians. Here is the breakdown in simple terms. IR resolution refers to the actual thermal sensor pixel count - 128x96, 256x192, etc. More pixels mean finer detail and the ability to spot smaller temperature differences from farther away.

TISR (Thermal Image Super Resolution) and MSX (Multi-Spectral Dynamic Imaging) are software enhancement technologies. TISR upscales lower-resolution thermal images using algorithmic processing. MSX overlays visible light details onto thermal images, creating sharper-looking composite photos. Neither creates true thermal detail that was not captured, but both improve image usability.

For mobile mechanics, 128x96 native resolution handles most automotive tasks adequately. You can spot overheating components, coolant flow issues, and electrical hot spots. However, 256x192 provides significantly better detail for finding small leaks or analyzing complex electrical panels. The thermal management in electronics parallels what we see in automotive systems - heat patterns reveal problems.

Battery Life Considerations for Field Work

Battery anxiety ruins productivity. Here is what I learned about real-world battery performance. Handheld units range from 3 hours (FLIR C3-X) to 24 hours (AMPBANK H128). Phone attachments draw power from your phone, typically lasting 4-7 hours depending on your phone's battery capacity.

For mobile mechanics doing 8-10 hour days, I recommend either the AMPBANK H128 (24 hours), HSFTOOLS HF96 (11 hours), or TOPDON TC004 Mini (15 hours). If you prefer phone attachments, carry a portable battery pack or keep your phone charged between jobs.

Auto-shutdown features extend battery life significantly. Cameras that power down after 5-10 minutes of inactivity can double effective battery life for intermittent use. You will need to balance this against the annoyance of waiting for boot-up when you want quick temperature checks.

Durability Ratings and IP Protection Explained

IP ratings measure dust and water resistance. The first digit indicates dust protection (5 means dust-protected, 6 means dust-tight). The second digit indicates water protection (4 means splashing water, 5 means water jets, 6 means powerful water jets).

For mobile mechanics, IP54 is the minimum I recommend. It handles dust from dirt lots and light rain during outdoor service calls. IP65 provides better protection for harsh environments. Drop ratings matter too - 2 meters (6.6 feet) is standard, meaning the camera should survive falls from chest height onto concrete.

Construction quality varies significantly. The HSFTOOLS HF96 has documented survival of multiple stair tumbles. The FLIR C3-X feels premium but is compact and potentially easier to misplace. Consider how you store tools in your service vehicle when evaluating durability needs.

Mobile Attachment vs Handheld - Which Fits Your Workflow

This decision depends on how you work. Phone attachments like the TOPDON TC001/TC002 and GOYOJO GW192A offer larger screens, unlimited storage, and no separate charging requirements. They also weigh less than standalone units. However, they require your phone to function and can be awkward to position in tight spaces.

Handheld units work independently and often survive harsher conditions. The pistol-grip design of cameras like the TOPDON TC004 and HSFTOOLS HF96 feels more secure when working under vehicles. They also do not drain your phone battery, leaving communication available for customer calls.

My recommendation: Start with a phone attachment if you already carry a recent smartphone. The screen size advantage is significant. Add a handheld unit later if you find yourself in situations where phone use is inconvenient or you need backup capabilities.

USB-C Compatibility and Phone Case Considerations

Phone attachment cameras create a common frustration: they do not fit with protective cases installed. You will either need to remove your case for each use or purchase a USB-C extension cable. Extension cables add cost and potential connection issues but preserve your phone's protection.

iPhone users face additional complexity. The standard TOPDON TC002 uses Lightning connectors for older iPhones. iPhone 15, 16, and 17 series use USB-C and require the TC002C variant instead. Verify your phone's port type before ordering to avoid returns.

Android compatibility is generally better but not universal. Your phone needs USB OTG (On-The-Go) support, which most modern Android devices include. However, some budget phones lack this feature. Check your phone's specifications or test with another OTG device before purchasing a thermal attachment.

Documentation and Customer Reporting

Modern mobile mechanics need to document their findings for customers, insurance companies, and fleet managers. Many of the cameras reviewed offer features that streamline this process. The FLIR C3-X with Ignite cloud integration and the TOPDON TC004 with Wi-Fi connectivity make sharing thermal images effortless. For mechanics who also document their work with action cameras for documentation, having a thermal camera that integrates with your existing workflow is essential.

Frequently Asked Questions

Final Thoughts: Choosing the Best Thermal Camera for Your Mobile Mechanic Business

After months of testing and real-world automotive diagnostics, my top recommendation for most mobile mechanics is the TOPDON TC004. The combination of high resolution, large screen, 8-hour battery, and Wi-Fi connectivity provides the best balance of capabilities for field work. It handles everything from parasitic draw diagnosis to HVAC troubleshooting without the premium price of established brands.

For budget-conscious mechanics just starting with thermal imaging, the HSFTOOLS HF96 delivers exceptional value. The 11-hour battery and AI scene detection features rival cameras costing significantly more. The GOYOJO GW192A offers an even lower entry point at under $100 for those wanting to experiment before committing to a professional-grade unit.

Brand loyalists and professionals needing warranty security should consider the FLIR C3-X. While the specs lag newer competitors, the 10-year detector warranty and FLIR's industry reputation provide peace of mind that justifies the premium for some buyers.

The best thermal cameras for mobile mechanics in 2026 deliver capabilities that were science fiction a decade ago. Whether you choose a handheld unit or phone attachment, thermal imaging will transform how you diagnose vehicles and communicate findings to customers. Start with one of these tested options and experience the difference professional thermal diagnostics makes in your mobile mechanic business.
